LED Engin
- LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED emitters, optics and light engines to create uncompromised lighting experiences for a wide range of entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented compact ceramic package. The small size, yet remarkably powerful beam output and superior in-source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional light is required.
Part Number
Manufacturer
Description
Unit Price
In Stock

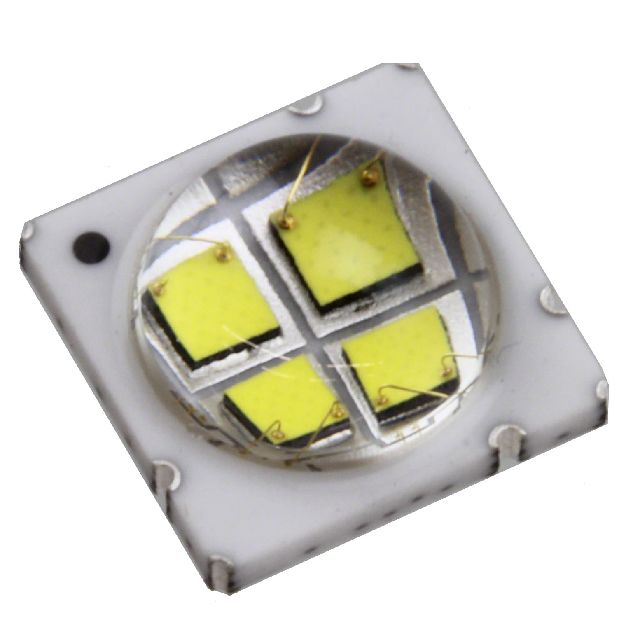

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 626 lm (556 lm ~ 695 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 80 (Typ)
Current - Max : 1A
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 626 lm (556 lm ~ 695 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 80 (Typ)
Current - Max : 1A
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 626 lm (556 lm ~ 695 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 80 (Typ)
Current - Max : 1A
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 626 lm (556 lm ~ 695 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 80 (Typ)
Current - Max : 1A
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 626 lm (556 lm ~ 695 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 80 (Typ)
Current - Max : 1A
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
100 in stock

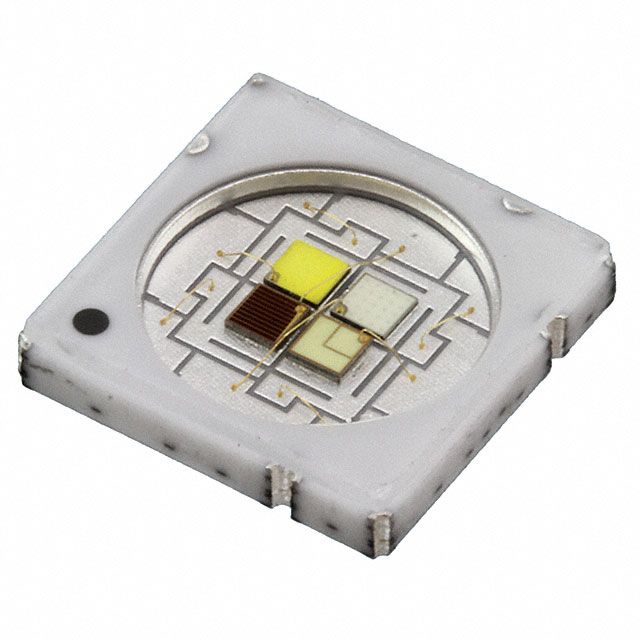

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6500K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
Flux @ Current/Temperature - Test : 62 lm Red, 133 lm Green, 24 lm Blue, 183nm White
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
183 in stock

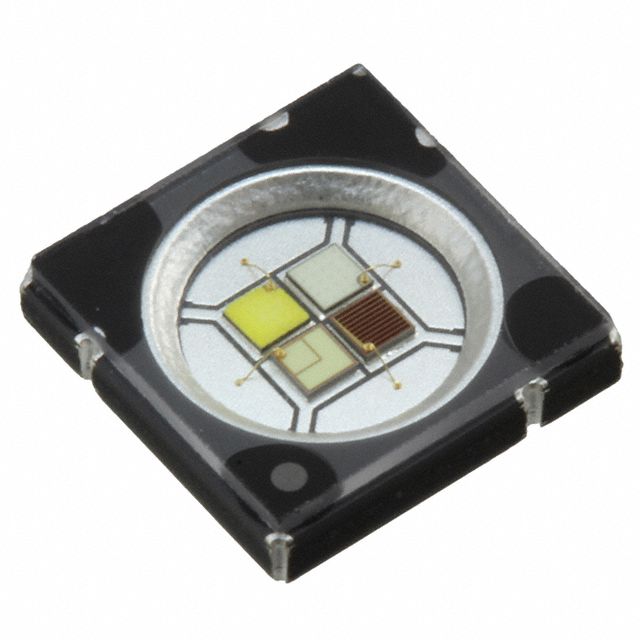

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6500K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W
Current - Max : 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White
Flux @ Current/Temperature - Test : 62 lm Red, 133 lm Green, 24 lm Blue, 183nm White
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.065" (1.65mm)
0
228 in stock

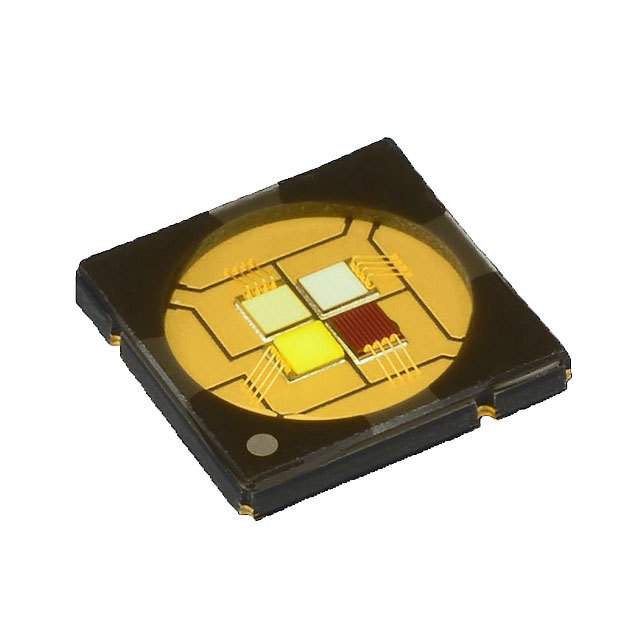

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LuxiGen™
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 454nm Blue, 6500K White
Current - Test : 1A Red, 1A Green, 1A Blue, 1A White
Voltage - Forward (Vf) (Typ) : 2.3V Red, 3.55V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 50 lm/W Red, 62 lm/W Green, 93 lm/W White
Current - Max : 2.5A Red, 3A Green, 3A Blue, 3A White
Flux @ Current/Temperature - Test : 115 lm Red, 220 lm Green, 1250mW Blue, 298 lm White
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.042" (1.06mm)
0
154 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 365nm
Voltage - Forward (Vf) (Typ) : 15.2V
Viewing Angle : 110°
Orientation : Top View
Operating Temperature : 130°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead Exposed Pad
0
54 in stock

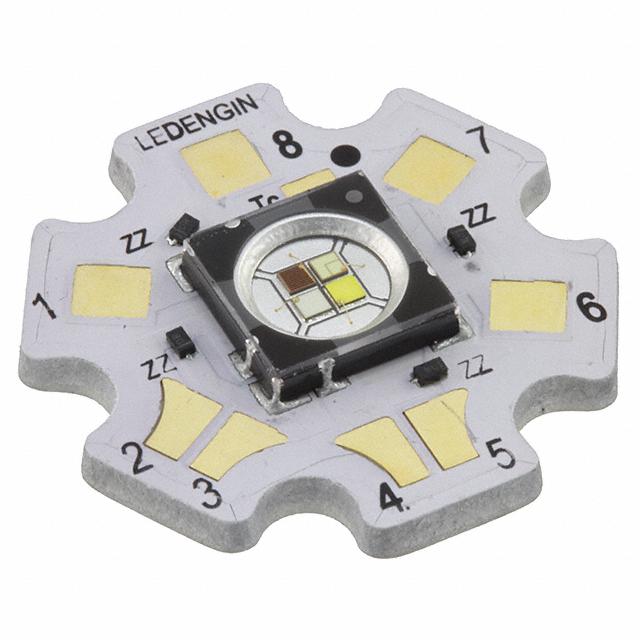

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Active
Type : LED Module
Color : Red, Green, Blue, White - Cool (RGBW)
CCT (K) : 6500K
Wavelength : 624nm Red, 525nm Green, 457nm Blue
Configuration : Starboard
Flux @ Current/Temperature - Test : 115 lm Red, 160 lm Green, 30 lm Blue, 190 lm White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.2V Red, 3.35V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 75 lm/W Red, 68 lm/W Green, 13 lm/W Blue, 85 lm/W White
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
CRI (Color Rendering Index) : 75
Viewing Angle : 95°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.60mm
Light Emitting Surface (LES) : 5.60mm
Lens Type : Domed
0
218 in stock

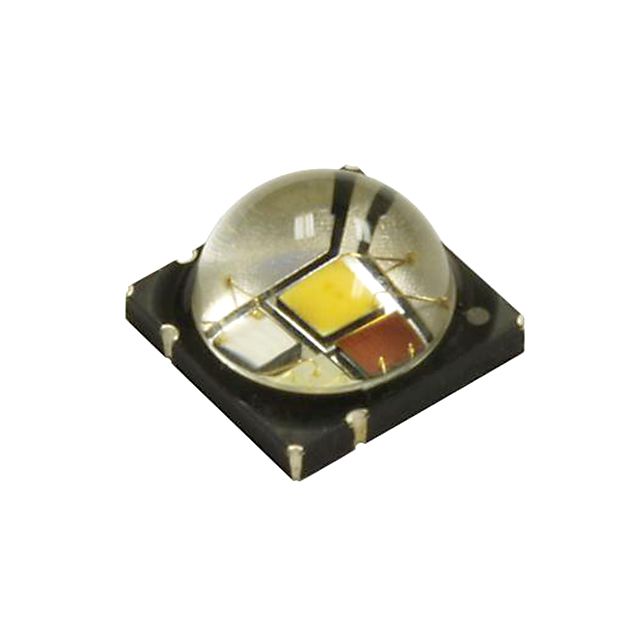

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : Red, Green, Blue, White - Cool (RGBW)
CCT (K) : 6500K
Wavelength : 624nm Red, 525nm Green, 457nm Blue
Configuration : Starboard
Flux @ Current/Temperature - Test : 115 lm Red, 160 lm Green, 30 lm Blue, 190 lm White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.7V Red, 3.7V Green, 3.6V Blue, 3.6V White
Lumens/Watt @ Current - Test : 61 lm/W Red, 62 lm/W Green, 12 lm/W Blue, 75 lm/W White
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 95°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.60mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Active
Type : LED Module
Color : Red, Green, Blue, White - Cool (RGBW)
CCT (K) : 6500K
Wavelength : 623nm Red, 523nm Green, 460nm Blue
Configuration : Starboard
Flux @ Current/Temperature - Test : 65 lm (Typ) Red, 125 lm (Typ) Green, 30 lm (Typ) Blue, 180 lm (Typ) White
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 37 lm/W Red, 50 lm/W Green, 13 lm/W Blue, 80 lm/W White
Current - Max : 1.5A
CRI (Color Rendering Index) : -
Viewing Angle : 110°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 3.20mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
