LED Engin

- LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED emitters, optics and light engines to create uncompromised lighting experiences for a wide range of entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented compact ceramic package. The small size, yet remarkably powerful beam output and superior in-source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional light is required.


Part Number

Manufacturer

Description

Unit Price

In Stock

LZ4-00GW08-0430

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 480 lm (356 lm ~ 556 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.9V
Lumens/Watt @ Current - Test : 53 lm/W
CRI (Color Rendering Index) : 95
Current - Max : 1A
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock

LZ4-00MD09-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6100K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 66 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
Flux @ Current/Temperature - Test : 115 lm Red, 160 lm Green, 30 lm Blue, 190 lm White
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

174 in stock

LZ4-00NW00-U040

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 14V
Lumens/Watt @ Current - Test : 73 lm/W
CRI (Color Rendering Index) : 82 (Typ)
Current - Max : 1.2A
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.173" (4.40mm)

100 in stock

LZ4-00NW08-0040

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 626 lm (556 lm ~ 695 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 71 lm/W
CRI (Color Rendering Index) : 82 (Typ)
Current - Max : 1A
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock

LZ4-00NW08-U040

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 740 lm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 84 lm/W
CRI (Color Rendering Index) : 82 (Typ)
Current - Max : 1A
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock

LZ4-00R108-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red
Wavelength : 624nm (618nm ~ 630nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 10V
Lumens/Watt @ Current - Test : 65 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 456 lm (356 lm ~ 556 lm)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

176 in stock

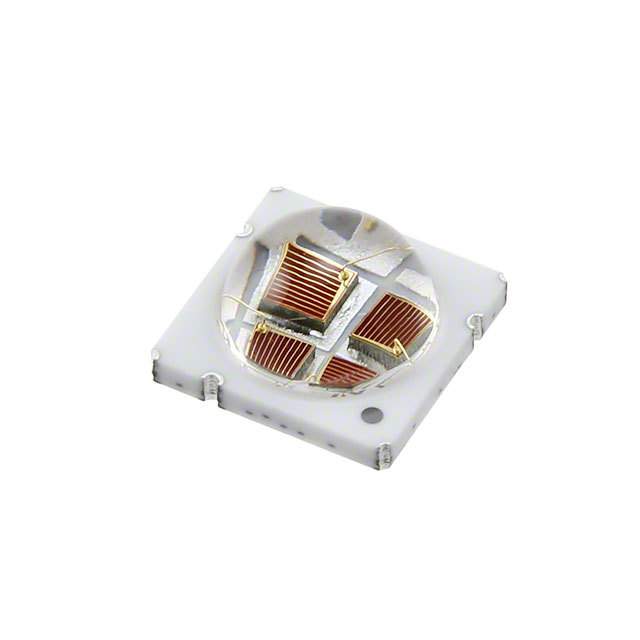

LZ4-00R208-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : Red
Wavelength : 663nm (655nm ~ 670nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 10.5V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : 2500mW (2000mW ~ 3000mW)
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock

LZ4-00R308-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : Red
Wavelength : 734nm (723nm ~ 745nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 9V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : 2000mW (1600mW ~ 2400mW)
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock

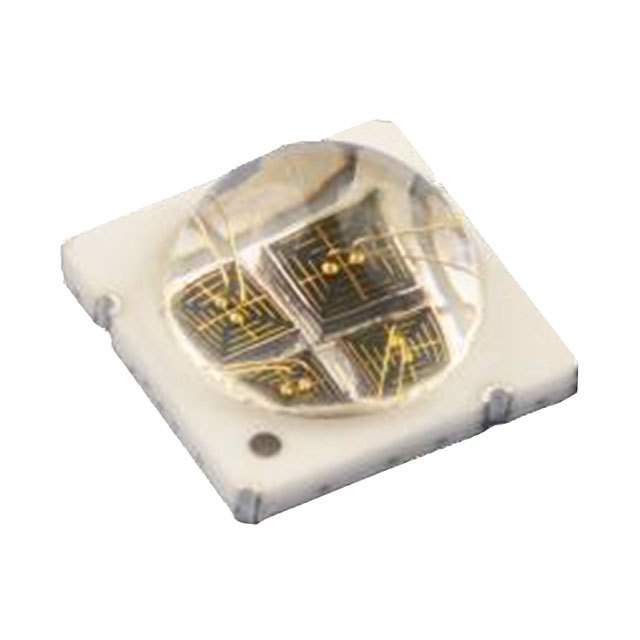

LZ4-00R408-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 835nm
Voltage - Forward (Vf) (Typ) : 7.6V
Viewing Angle : 95°
Orientation : Top View
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead Exposed Pad

1763 in stock

LZ4-00R608-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 12.4V
Viewing Angle : 100°
Orientation : Top View
Operating Temperature : 145°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead Exposed Pad

499 in stock

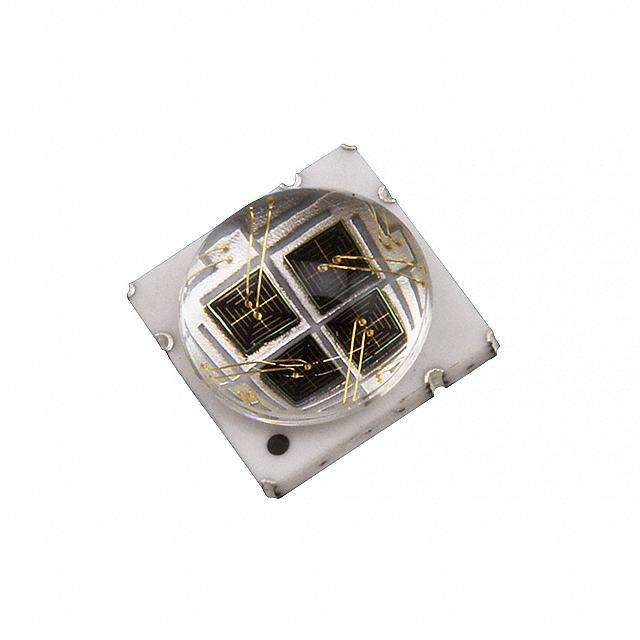

LZ4-00R708-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 11.6V
Viewing Angle : 100°
Orientation : Top View
Operating Temperature : 145°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, No Lead Exposed Pad

140 in stock

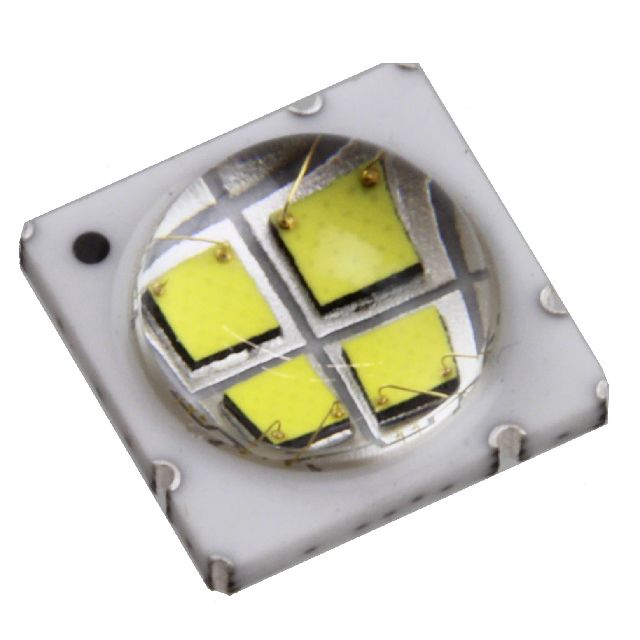

LZ4-00SW08-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5010K ~ 5630K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 501 lm (445 lm ~ 556 lm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.9V
Lumens/Watt @ Current - Test : 55 lm/W
CRI (Color Rendering Index) : 88 (Typ)
Current - Max : 1A
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock
