Comchip Technology

- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.

Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.


Part Number

Manufacturer

Description

Unit Price

In Stock

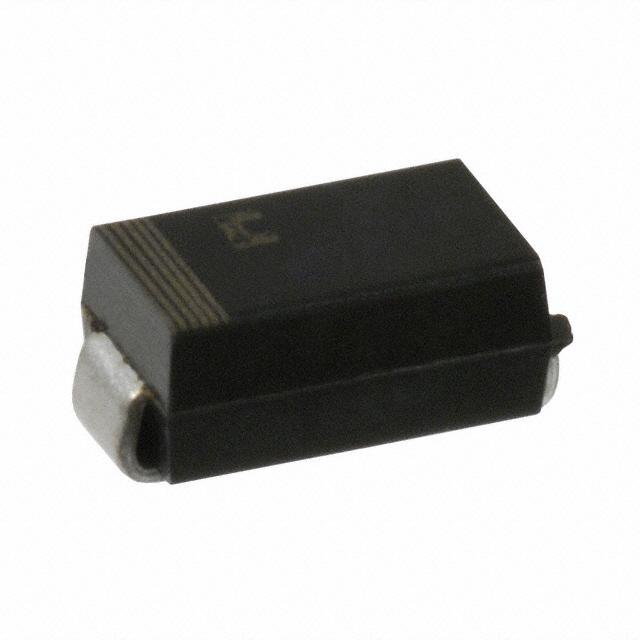

ACGRA4004-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2.5µs
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 2.5pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C

4830 in stock

ACGRA4007-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2.5µs
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 2.5pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C

19951 in stock

ACGRAS1W-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 1600V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C

3578 in stock

ACGRAT102-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 8pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2010 (5025 Metric)
Supplier Device Package : 2010
Operating Temperature - Junction : -65°C ~ 175°C

2925 in stock

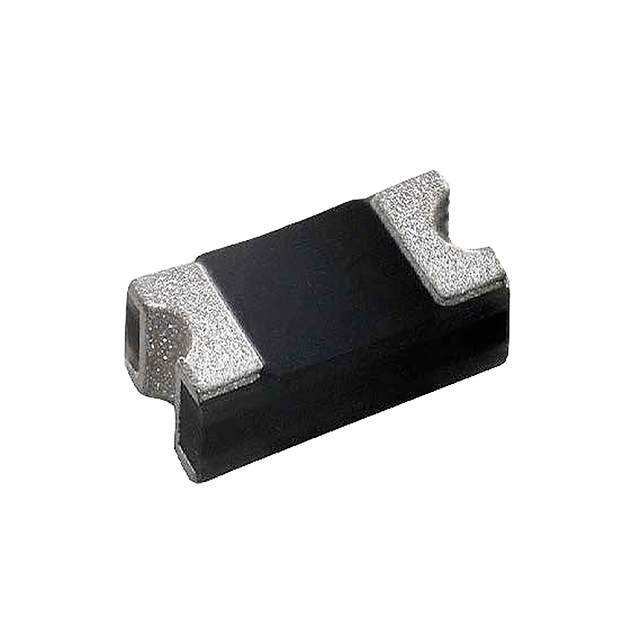

ACGRAT103-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : 8pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2010 (5025 Metric)
Supplier Device Package : 2010
Operating Temperature - Junction : -65°C ~ 175°C

8875 in stock

ACGRAT103L-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 930mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : 8.2pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2010 (5025 Metric)
Supplier Device Package : 2010
Operating Temperature - Junction : -65°C ~ 175°C

4001 in stock

ACGRAT105L-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 930mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 8.2pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2010 (5025 Metric)
Supplier Device Package : 2010
Operating Temperature - Junction : -65°C ~ 175°C

7313 in stock

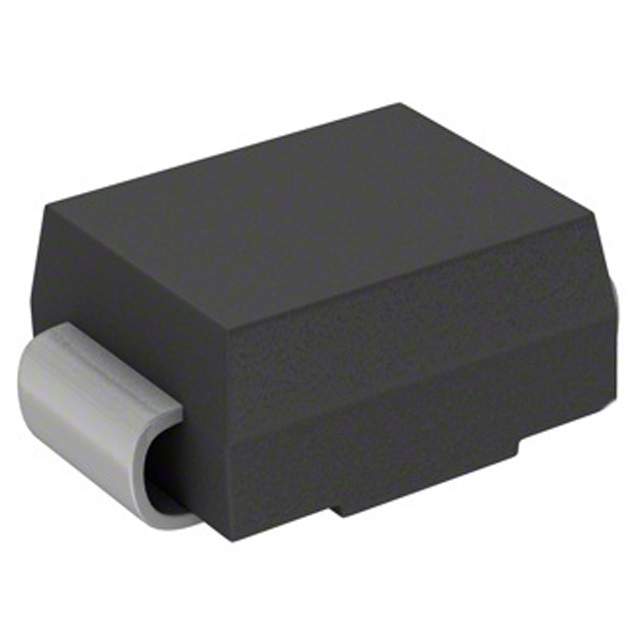

ACGRB207-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 3A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : DO-214AA (SMB)
Operating Temperature - Junction : -55°C ~ 150°C

2966 in stock

ACGRBT202-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 1V @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 14pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 2114/DO-214AA
Operating Temperature - Junction : -65°C ~ 175°C

100 in stock

ACGRBT203-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 1V @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : 14pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 2114/DO-214AA
Operating Temperature - Junction : -65°C ~ 175°C

4030 in stock

ACGRBT205-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 1V @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 14pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 2114/DO-214AA
Operating Temperature - Junction : -65°C ~ 175°C

4322 in stock

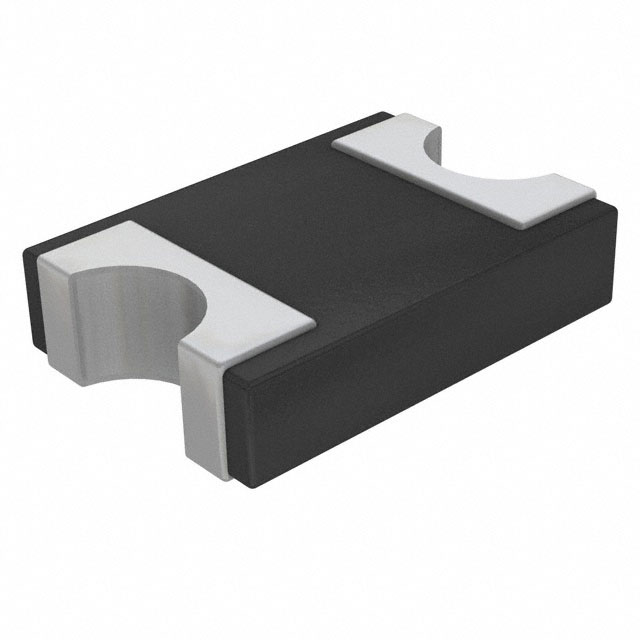

ACGRBT302-HF

Comchip Technology

Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 1V @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 23pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 2114/DO-214AA
Operating Temperature - Junction : -65°C ~ 175°C

4060 in stock
