Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active

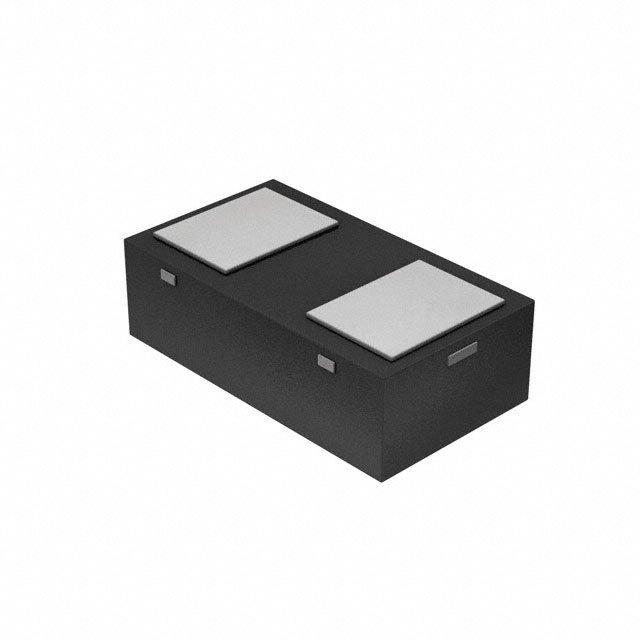

Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 500mV @ 200mA
Speed : Small Signal =
-
30µA @ 30V
9pF @ 10V, 1MHz
Surface Mount
2-SMD, No Lead
0603C/SOD-523F
-40°C ~ 125°C
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 30µA @ 30V
Capacitance @ Vr, F : 9pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603C/SOD-523F
Operating Temperature - Junction : -40°C ~ 125°C
0
5368 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 225mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100nA @ 240V
Operating Temperature - Junction : -60°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
585 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Discontinued at

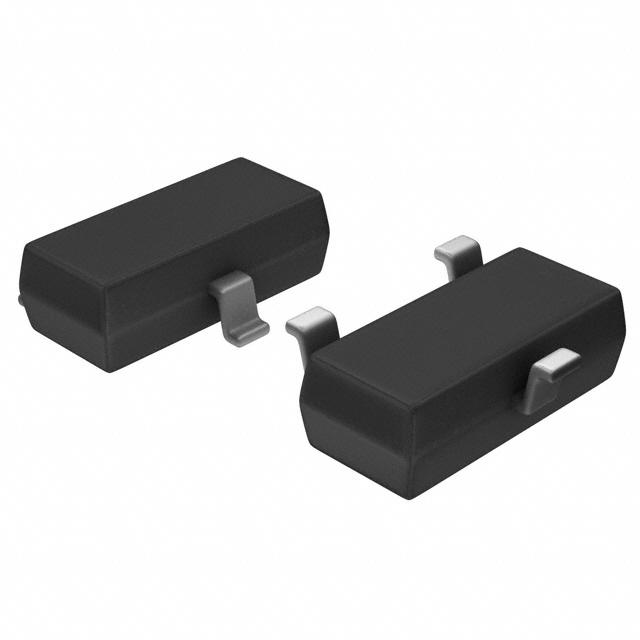

Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Small Signal =
6ns
2.5µA @ 70V
150°C (Max)
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3
Reverse Recovery Time (trr) : 6ns
Current - Reverse Leakage @ Vr : 2.5µA @ 70V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
100 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) (per Diode) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Small Signal =
6ns
2.5µA @ 70V
150°C (Max)
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3
Reverse Recovery Time (trr) : 6ns
Current - Reverse Leakage @ Vr : 2.5µA @ 70V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
950 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 250V
Current - Average Rectified (Io) : 200mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 200mA
Speed : Small Signal =
50ns
100nA @ 200V
5pF @ 0V, 1MHz
Surface Mount
SC-76, SOD-323
SOD-323
-40°C ~ 150°C
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100nA @ 200V
Capacitance @ Vr, F : 5pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
Operating Temperature - Junction : -40°C ~ 150°C
0
2363 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active

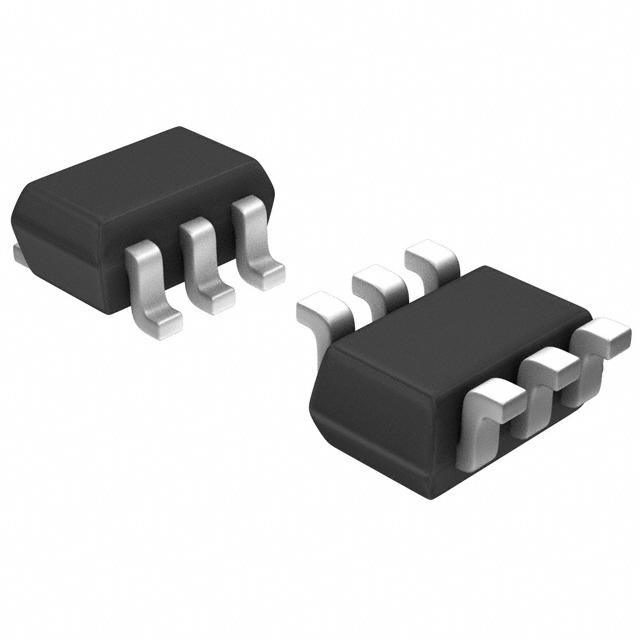

Diode Configuration : 3 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 80V
Current - Average Rectified (Io) (per Diode) : 100mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
4ns
100nA @ 75V
150°C (Max)
Surface Mount
6-TSSOP, SC-88, SOT-363
SOT-363
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 100nA @ 75V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
2396 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active

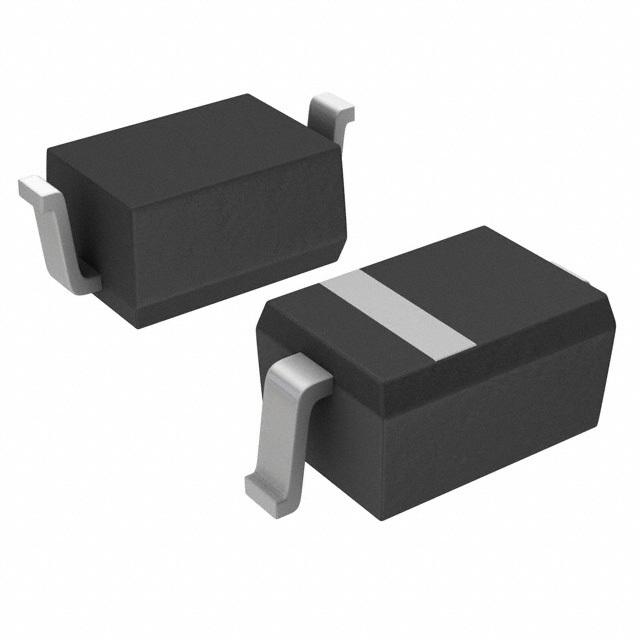

Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Small Signal =
4ns
1µA @ 75V
2pF @ 0V, 1MHz
Surface Mount
SOD-123
SOD-123
-55°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 1µA @ 75V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
Operating Temperature - Junction : -55°C ~ 150°C
0
5722 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active

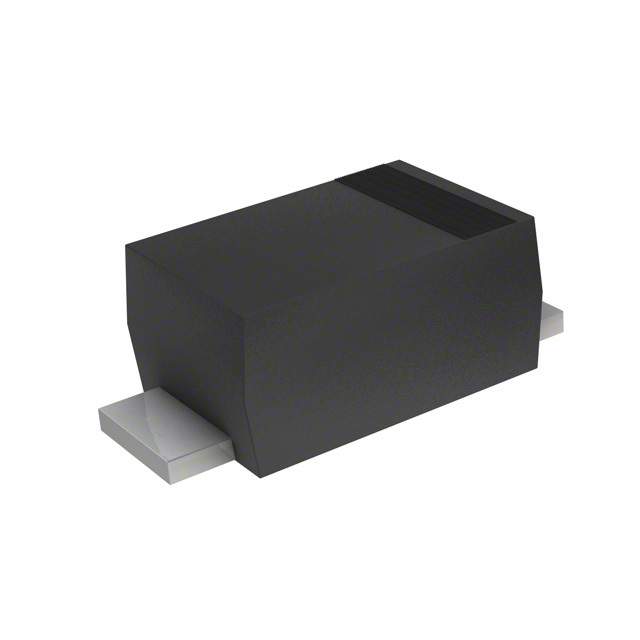

Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Small Signal =
4ns
2.5µA @ 75V
2pF @ 0V, 1MHz
Surface Mount
SOD-123
SOD-123
-55°C ~ 150°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 2.5µA @ 75V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
Operating Temperature - Junction : -55°C ~ 150°C
0
3000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 900mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 20ns
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : 40pF @ 4V, 1MHz
Mounting Type : Surface Mount

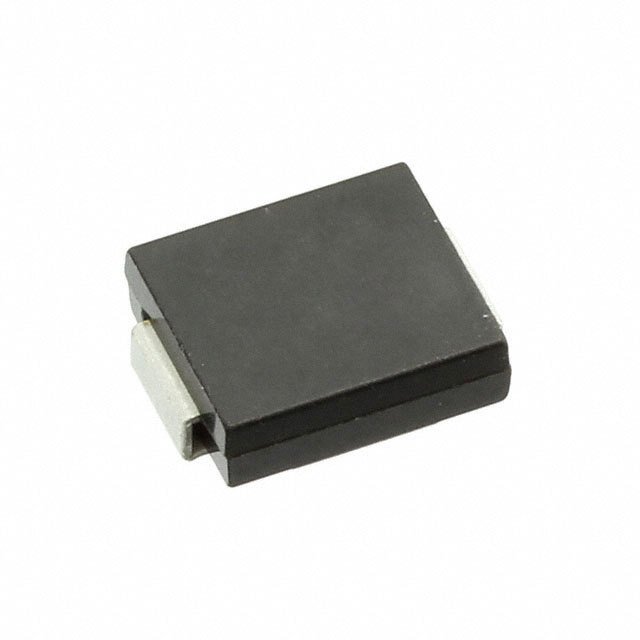

Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
Operating Temperature - Junction : -55°C ~ 150°C
0
2930 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount

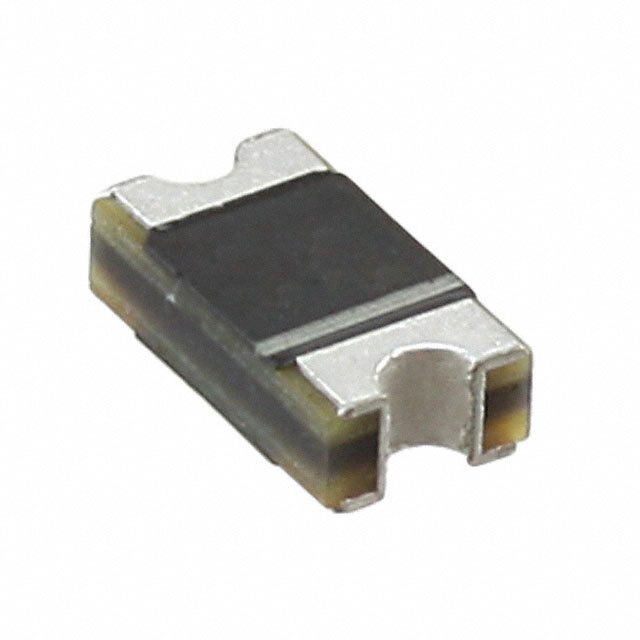

Package / Case : 2-SMD, No Lead
Supplier Device Package : 1206
Operating Temperature - Junction : -65°C ~ 175°C
0
12273 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active

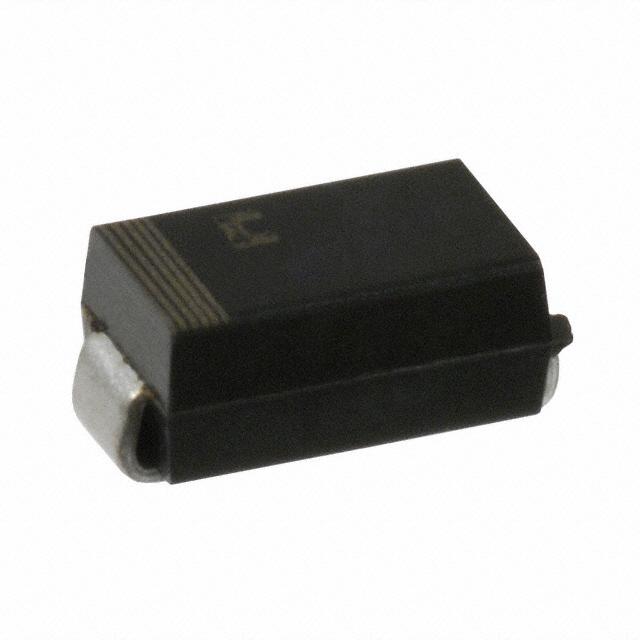

Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 50V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2.5µs
Current - Reverse Leakage @ Vr : 5µA @ 50V
Capacitance @ Vr, F : 2.5pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C
0
4932 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 2.5µs
Current - Reverse Leakage @ Vr : 5µA @ 100V
Capacitance @ Vr, F : 2.5pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C
0
4875 in stock
