Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock

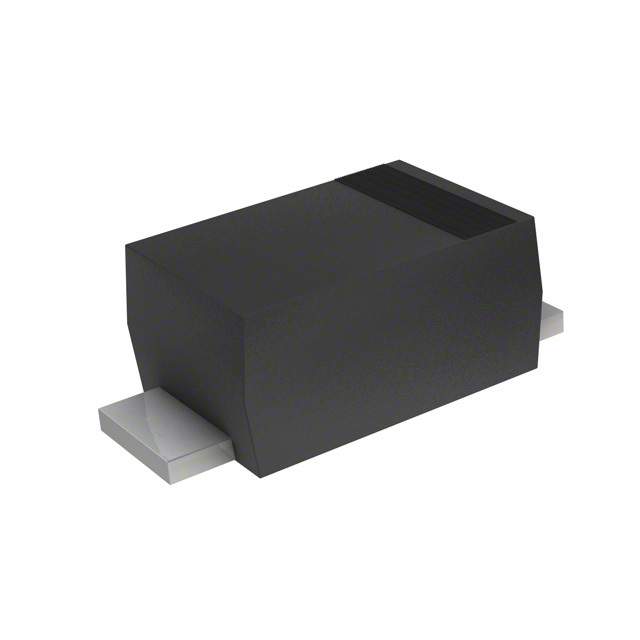

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 150mA (DC)
Voltage - Forward (Vf) (Max) @ If : 450mV @ 10mA
Speed : Small Signal =
-
2µA @ 75V
20pF @ 0V, 1MHz
Surface Mount
SOD-123
SOD-123
150°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2µA @ 75V
Capacitance @ Vr, F : 20pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
Operating Temperature - Junction : 150°C (Max)
0
2872 in stock

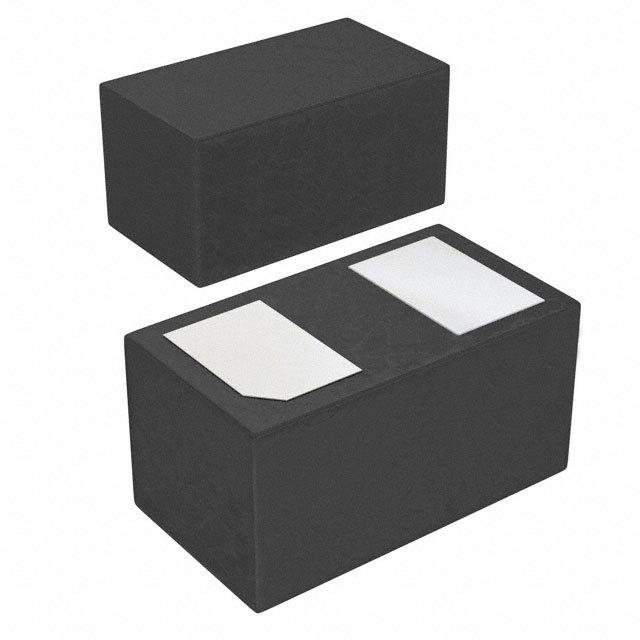

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 370mV @ 10mA
Speed : Small Signal =
-
7µA @ 10V
-
Surface Mount
0201 (0603 Metric)
0201 (0603 Metric)
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 7µA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : 0201 (0603 Metric)
Operating Temperature - Junction : 125°C (Max)
0
161087 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 460mV @ 10mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300nA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : 0201 (0603 Metric)
Operating Temperature - Junction : -40°C ~ 150°C
0
26859 in stock

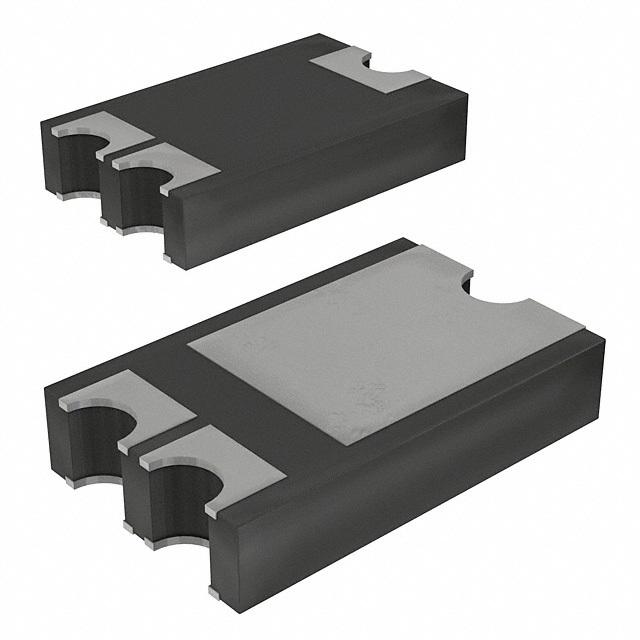

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 900mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-277, 3-PowerDFN
Supplier Device Package : TO-277 (Z3)
Operating Temperature - Junction : -55°C ~ 150°C
0
3749 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 820mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-277, 3-PowerDFN
Supplier Device Package : TO-277 (Z3)
Operating Temperature - Junction : -55°C ~ 150°C
0
27425 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 750mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 60V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-277, 3-PowerDFN
Supplier Device Package : TO-277 (Z3)
Operating Temperature - Junction : -55°C ~ 150°C
0
106 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 20A
Voltage - Forward (Vf) (Max) @ If : 930mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-277, 3-PowerDFN
Supplier Device Package : TO-277 (Z3)
Operating Temperature - Junction : -55°C ~ 150°C
0
5708 in stock

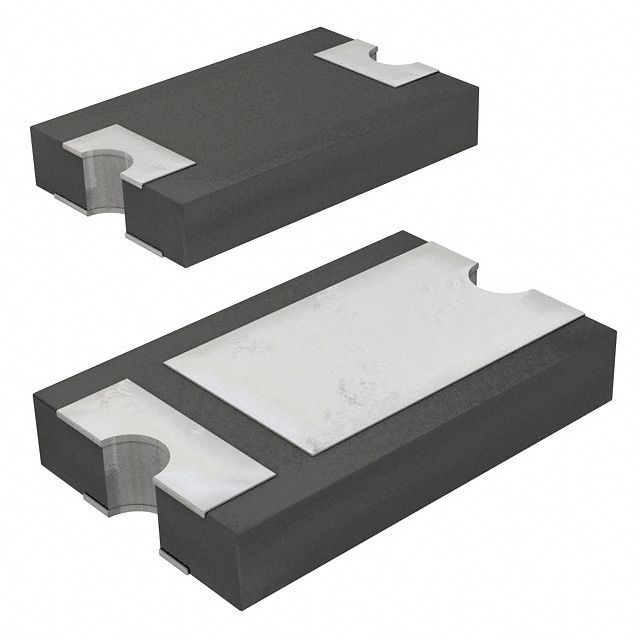

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 45V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : Z5-T
Supplier Device Package : SMC (Z5-T)
Operating Temperature - Junction : -55°C ~ 150°C
0
2008 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 50µA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : Z5-T
Supplier Device Package : SMC (Z5-T)
Operating Temperature - Junction : -55°C ~ 150°C
0
23940 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 370mV @ 10mA
Speed : Small Signal =
-
7µA @ 10V
-
Surface Mount
0201 (0603 Metric)
0201/DFN0603
-40°C ~ 125°C
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 7µA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : 0201/DFN0603
Operating Temperature - Junction : -40°C ~ 125°C
0
7828 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 460mV @ 10mA
Speed : Small Signal =
-
300nA @ 10V
-
Surface Mount
0201 (0603 Metric)
0201/DFN0603
-40°C ~ 150°C
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300nA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : 0201/DFN0603
Operating Temperature - Junction : -40°C ~ 150°C
0
18663 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 50mA
Speed : Small Signal =
4ns
2.5µA @ 75V
4pF @ 0V, 1MHz
Surface Mount
1005 (2512 Metric)
1005/SOD-323F
125°C (Max)
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 2.5µA @ 75V
Capacitance @ Vr, F : 4pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
Operating Temperature - Junction : 125°C (Max)
0
373129 in stock
