Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 400V
Current - Average Rectified (Io) : 800mA
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 800mA
Current - Reverse Leakage @ Vr : 5µA @ 400V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

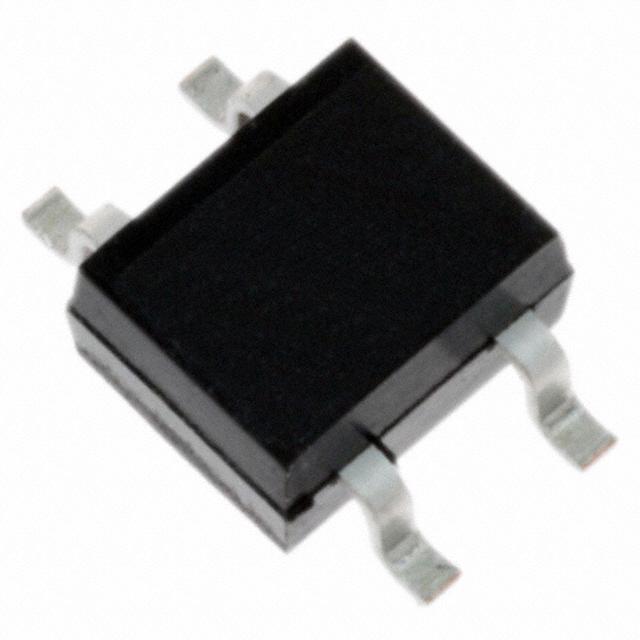

Package / Case : TO-269AA, 4-BESOP
Supplier Device Package : MBS
0
25314 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 600V
Current - Average Rectified (Io) : 800mA
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 800mA
Current - Reverse Leakage @ Vr : 5µA @ 600V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-269AA, 4-BESOP
Supplier Device Package : MBS
0
1707 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) : 70mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1V @ 15mA
Speed : Small Signal =
2ns
100nA @ 50V
5pF @ 0V, 1MHz
Surface Mount

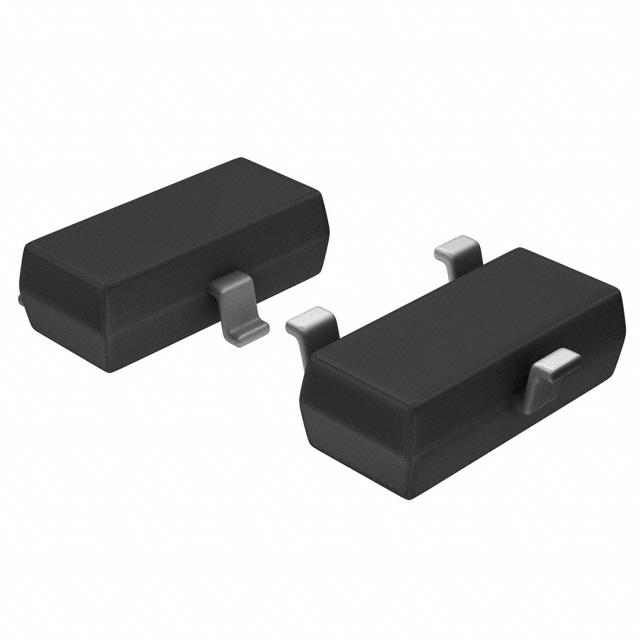

TO-236-3, SC-59, SOT-23-3
SOT-23-3
125°C (Max)
Reverse Recovery Time (trr) : 2ns
Current - Reverse Leakage @ Vr : 100nA @ 50V
Capacitance @ Vr, F : 5pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Operating Temperature - Junction : 125°C (Max)
0
4121 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Anode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : 200mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
5ns
2mA @ 25V
125°C (Max)
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 2mA @ 25V
Operating Temperature - Junction : 125°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
2970 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : 200mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
5ns
2mA @ 25V
125°C (Max)
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 2mA @ 25V
Operating Temperature - Junction : 125°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
69704 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 200mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
5ns
2mA @ 25V
10pF @ 1V, 1MHz
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3
125°C (Max)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 2mA @ 25V
Capacitance @ Vr, F : 10pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Operating Temperature - Junction : 125°C (Max)
0
9150 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) (per Diode) : 215mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 6ns
Current - Reverse Leakage @ Vr : 2.5µA @ 70V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
124866 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Anode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) (per Diode) : 215mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 150mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 6ns
Current - Reverse Leakage @ Vr : 2.5µA @ 70V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
36000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 65V
Vce Saturation (Max) @ Ib, Ic : 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2.2mA, 5V
Power - Max : 250mW
Frequency - Transition : 100MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
95 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 65V
Vce Saturation (Max) @ Ib, Ic : 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2.2mA, 5V
Power - Max : 150mW
Frequency - Transition : 100MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount

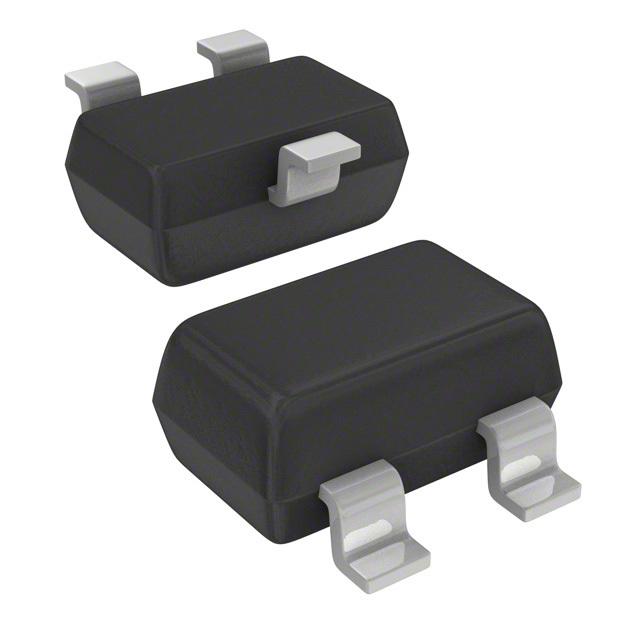

Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
0
100 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2.2mA, 5V
Power - Max : 150mW
Frequency - Transition : 100MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
0
80 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 15nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 220 @ 2.2mA, 5V
Power - Max : 150mW
Frequency - Transition : 100MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
0
2800 in stock
