Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 38.9V
Current - Peak Pulse (10/1000µs) : 128.5A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

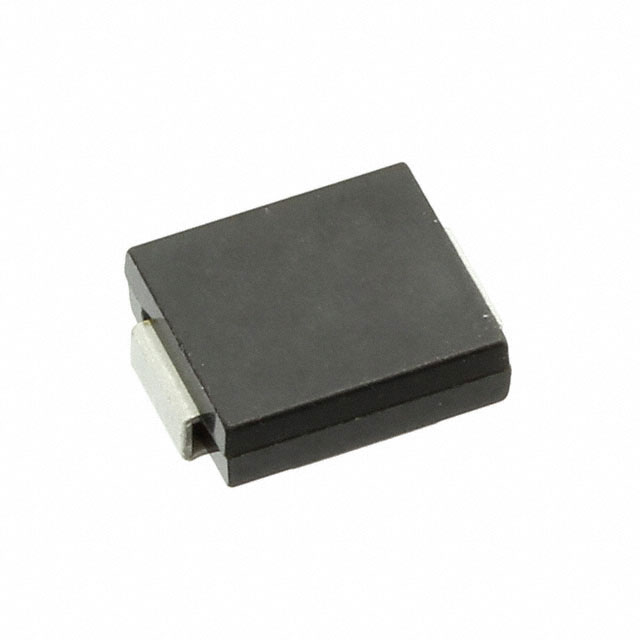

Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
2765 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 36V
Voltage - Breakdown (Min) : 40V
Voltage - Clamping (Max) @ Ipp : 58.1V
Current - Peak Pulse (10/1000µs) : 86.1A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
5160 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 36V
Voltage - Breakdown (Min) : 40V
Voltage - Clamping (Max) @ Ipp : 58.1V
Current - Peak Pulse (10/1000µs) : 86.1A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
436 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 40V
Voltage - Breakdown (Min) : 44.4V
Voltage - Clamping (Max) @ Ipp : 64.5V
Current - Peak Pulse (10/1000µs) : 77.5A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
2247 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 40V
Voltage - Breakdown (Min) : 44.4V
Voltage - Clamping (Max) @ Ipp : 64.5V
Current - Peak Pulse (10/1000µs) : 77.5A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
2557 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 400V
Voltage - Breakdown (Min) : 447V
Voltage - Clamping (Max) @ Ipp : 648V
Current - Peak Pulse (10/1000µs) : 7.7A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
2975 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 48V
Voltage - Breakdown (Min) : 53.3V
Voltage - Clamping (Max) @ Ipp : 77.4V
Current - Peak Pulse (10/1000µs) : 64.6A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 155°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
2975 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 48V
Voltage - Breakdown (Min) : 53.3V
Voltage - Clamping (Max) @ Ipp : 77.4V
Current - Peak Pulse (10/1000µs) : 64.6A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 155°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
3000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 26V (Max)
Voltage - Breakdown (Min) : 28.9V
Voltage - Clamping (Max) @ Ipp : 42.1V
Current - Peak Pulse (10/1000µs) : 170A
Power - Peak Pulse : 6600W (6.6kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount

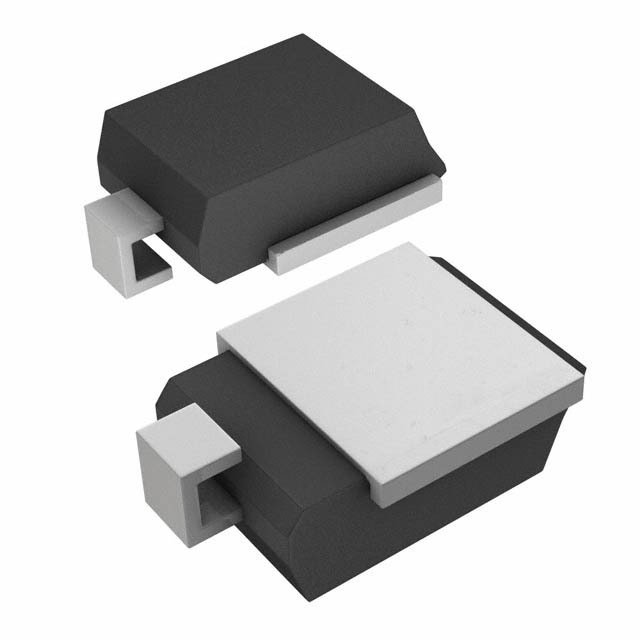

Package / Case : DO-218AB
Supplier Device Package : DO-218AB
0
462 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 36V (Max)
Voltage - Breakdown (Min) : 40V
Voltage - Clamping (Max) @ Ipp : 58.1V
Current - Peak Pulse (10/1000µs) : 114A
Power - Peak Pulse : 6600W (6.6kW)
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-218AB
Supplier Device Package : DO-218AB
0
1049 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Three Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 50V
Current - Average Rectified (Io) : 800mA
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 800mA
Current - Reverse Leakage @ Vr : 5µA @ 50V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

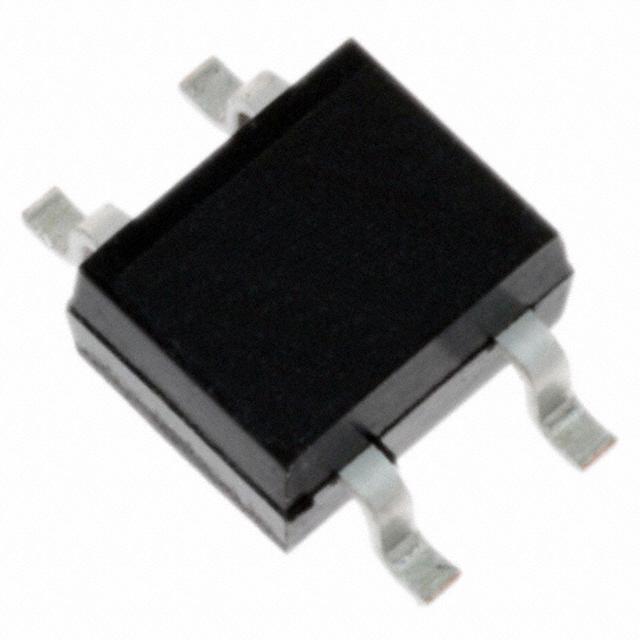

Package / Case : TO-269AA, 4-BESOP
Supplier Device Package : MBS
0
3285 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1kV
Current - Average Rectified (Io) : 800mA
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 800mA
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-269AA, 4-BESOP
Supplier Device Package : MBS
0
40582 in stock
