Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock

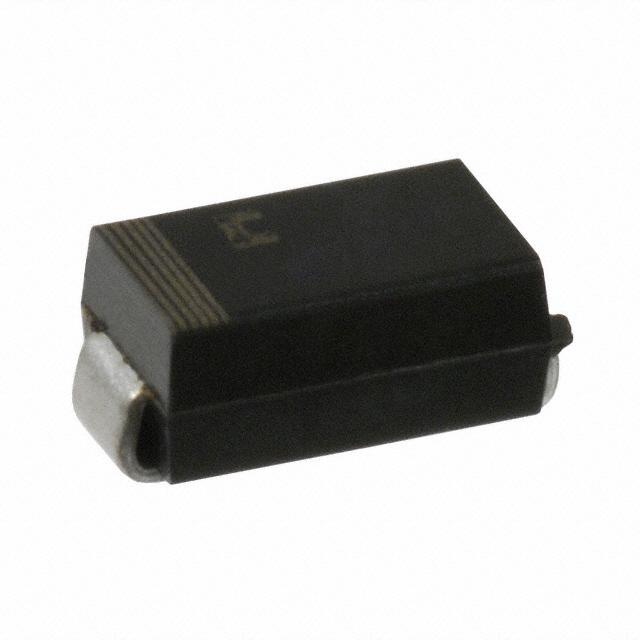

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 12V
Voltage - Breakdown (Min) : 13.3V
Voltage - Clamping (Max) @ Ipp : 19.9V
Current - Peak Pulse (10/1000µs) : 20.1A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
1140 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 12V
Voltage - Breakdown (Min) : 13.3V
Voltage - Clamping (Max) @ Ipp : 19.9V
Current - Peak Pulse (10/1000µs) : 20.1A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
1322 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 38.9V
Current - Peak Pulse (10/1000µs) : 10.28A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
7811 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 38.9V
Current - Peak Pulse (10/1000µs) : 10.28A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
4851 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 26V
Voltage - Breakdown (Min) : 28.9V
Voltage - Clamping (Max) @ Ipp : 42.1V
Current - Peak Pulse (10/1000µs) : 9.5A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
4762 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 26V
Voltage - Breakdown (Min) : 28.9V
Voltage - Clamping (Max) @ Ipp : 42.1V
Current - Peak Pulse (10/1000µs) : 9.5A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
3385 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 33V
Voltage - Breakdown (Min) : 36.7V
Voltage - Clamping (Max) @ Ipp : 53.3V
Current - Peak Pulse (10/1000µs) : 7.5A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
2480 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 33V
Voltage - Breakdown (Min) : 36.7V
Voltage - Clamping (Max) @ Ipp : 53.3V
Current - Peak Pulse (10/1000µs) : 7.5A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
4750 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 36V
Voltage - Breakdown (Min) : 40V
Voltage - Clamping (Max) @ Ipp : 58.1V
Current - Peak Pulse (10/1000µs) : 6.88A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
5000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 36V
Voltage - Breakdown (Min) : 40V
Voltage - Clamping (Max) @ Ipp : 58.1V
Current - Peak Pulse (10/1000µs) : 6.88A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
1500 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 40V
Voltage - Breakdown (Min) : 44.4V
Voltage - Clamping (Max) @ Ipp : 64.5V
Current - Peak Pulse (10/1000µs) : 6.2A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
4015 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 40V
Voltage - Breakdown (Min) : 44.4V
Voltage - Clamping (Max) @ Ipp : 64.5V
Current - Peak Pulse (10/1000µs) : 6.2A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
375 in stock
