CnC Tech

- CnC Tech takes pride in providing reliable industrial connection and interconnect solutions when high quality parts and competitive pricing are important factors. With 17 years of experience, CnC Tech is committed to meeting the demands of an ever changing market.

CnC Tech’s product line includes raw wire, magnet wire, power cords, connectors, interconnects, USB cables, modular cables, standard cables, flat ribbon cables, and board level components, like IC sockets, IDC's, PLCC sockets and USB connectors.

CnC Tech also specializes in fast turnaround custom cables and interconnects with original or equivalent connectors according to customers’ requirements. From flat ribbon cable interconnections, specialized custom cables to power cords of all kinds, CnC Tech’s capabilities are well known in the industry.


Part Number

Manufacturer

Description

Unit Price

In Stock

245-16-1-03

CnC Tech

Manufacturer : CNC Tech
Packaging : Tube
Series : -
Part Status : Obsolete
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 16 (2 x 8)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole, Kinked Pin
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 60.0µin (1.52µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature : -40°C ~ 105°C

7263 in stock

245-18-1-03

CnC Tech

Manufacturer : CNC Tech
Packaging : Tube
Series : -
Part Status : Obsolete
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 18 (2 x 9)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole, Kinked Pin
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 60.0µin (1.52µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature : -40°C ~ 105°C

1442 in stock

245-28-1-06

CnC Tech

Manufacturer : CNC Tech
Packaging : Tube
Series : -
Part Status : Obsolete
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole, Kinked Pin
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 60.0µin (1.52µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature : -40°C ~ 105°C

3140 in stock

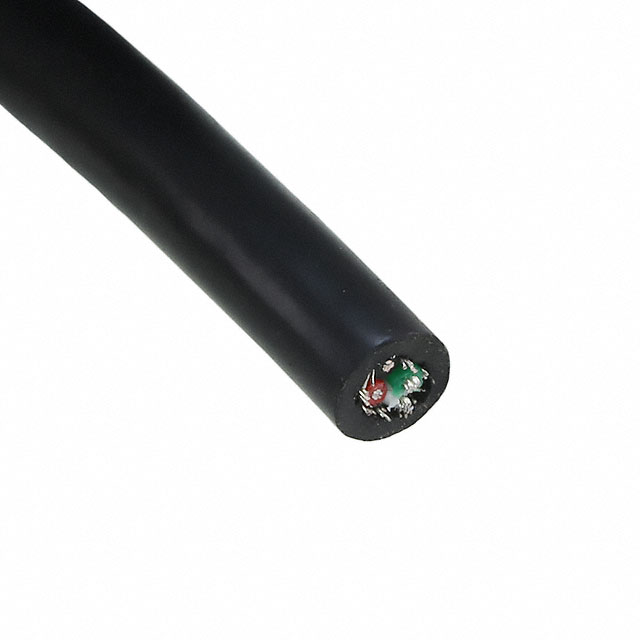

2725-2828-BL-01000-A

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Multi-Conductor
Number of Conductors : 4
Wire Gauge : 28 AWG
Conductor Strand : 7/36
Conductor Material : Copper, Tinned
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter : 0.150" (3.81mm)
Shield Type : Foil, Braid
Length : 1000.0' (304.8m)
Jacket Color : Black
Ratings : UL Style 2725
Features : Drain Wire
Voltage : 30V
Operating Temperature : 80°C
Usage : USB 2.0
Jacket (Insulation) Thickness : 0.0264" (0.671mm)

8 in stock

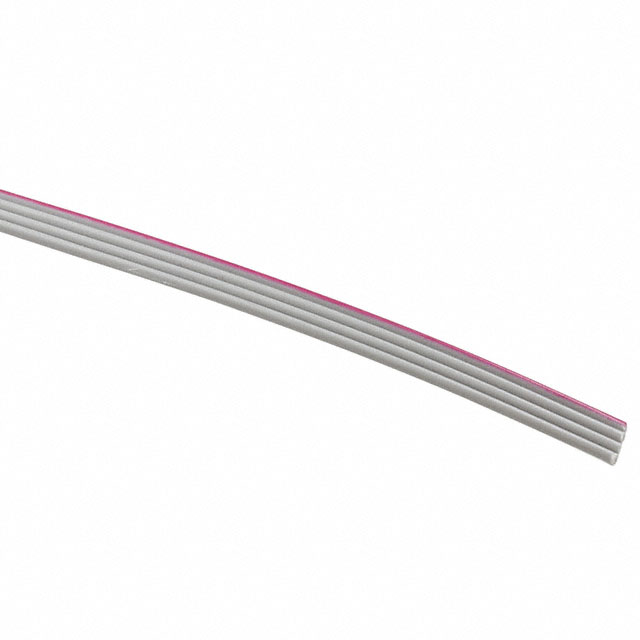

300-30-04-GR-0100F

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Flat Cable
Number of Conductors : 4
Pitch : 0.025" (0.64mm)
Length : 100.0' (30.48m)
Wire Gauge : 30 AWG
Conductor Strand : 7 Strands / 38 AWG
Shielding : Unshielded
Jacket Color : Gray
Ribbon Thickness : 0.026" (0.66mm)
Ribbon Width : 0.250" (6.35mm)
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Voltage : 150V
Operating Temperature : 105°C
Ratings : UL Style 2678
Features : -

21 in stock

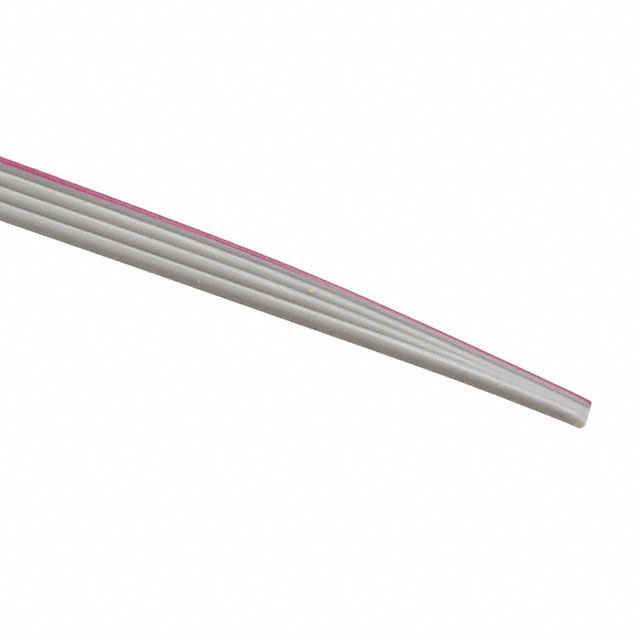

300-30-04-GR-0250F

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Flat Cable
Number of Conductors : 4
Pitch : 0.025" (0.64mm)
Length : 250.0' (76.20m)
Wire Gauge : 30 AWG
Conductor Strand : 7 Strands / 38 AWG
Shielding : Unshielded
Jacket Color : Gray
Ribbon Thickness : 0.026" (0.66mm)
Ribbon Width : 0.250" (6.35mm)
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Voltage : 150V
Operating Temperature : 105°C
Ratings : UL Style 2678
Features : -

23 in stock

300-30-10-GR-0100F

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Flat Cable
Number of Conductors : 10
Pitch : 0.025" (0.64mm)
Length : 100.0' (30.48m)
Wire Gauge : 30 AWG
Conductor Strand : 7 Strands / 38 AWG
Shielding : Unshielded
Jacket Color : Gray
Ribbon Thickness : 0.026" (0.66mm)
Ribbon Width : 0.250" (6.35mm)
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Voltage : 150V
Operating Temperature : 105°C
Ratings : UL Style 2678
Features : -

22 in stock

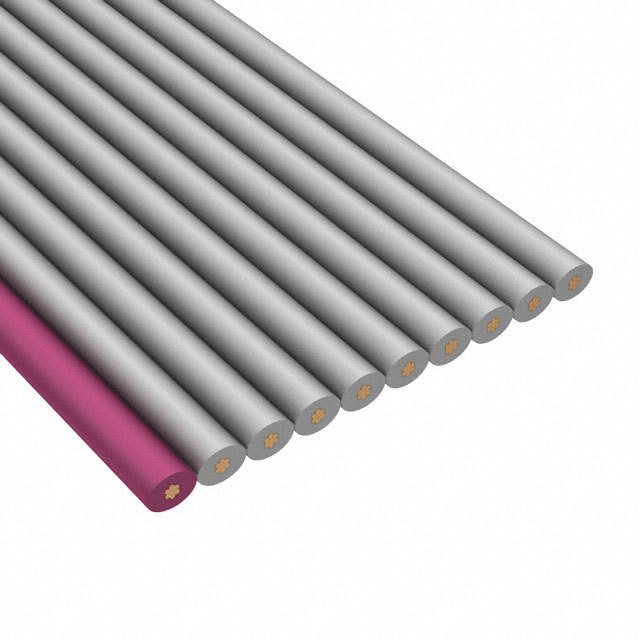

300-30-10-GR-0250F

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Flat Cable
Number of Conductors : 10
Pitch : 0.025" (0.64mm)
Length : 250.0' (76.20m)
Wire Gauge : 30 AWG
Conductor Strand : 7 Strands / 38 AWG
Shielding : Unshielded
Jacket Color : Gray
Ribbon Thickness : 0.026" (0.66mm)
Ribbon Width : 0.250" (6.35mm)
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Voltage : 150V
Operating Temperature : 105°C
Ratings : UL Style 2678
Features : -

34 in stock

300-30-14-GR-0100F

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Flat Cable
Number of Conductors : 14
Pitch : 0.025" (0.64mm)
Length : 100.0' (30.48m)
Wire Gauge : 30 AWG
Conductor Strand : 7 Strands / 38 AWG
Shielding : Unshielded
Jacket Color : Gray
Ribbon Thickness : 0.026" (0.66mm)
Ribbon Width : 0.350" (8.89mm)
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Voltage : 150V
Operating Temperature : 105°C
Ratings : UL Style 2678
Features : -

29 in stock

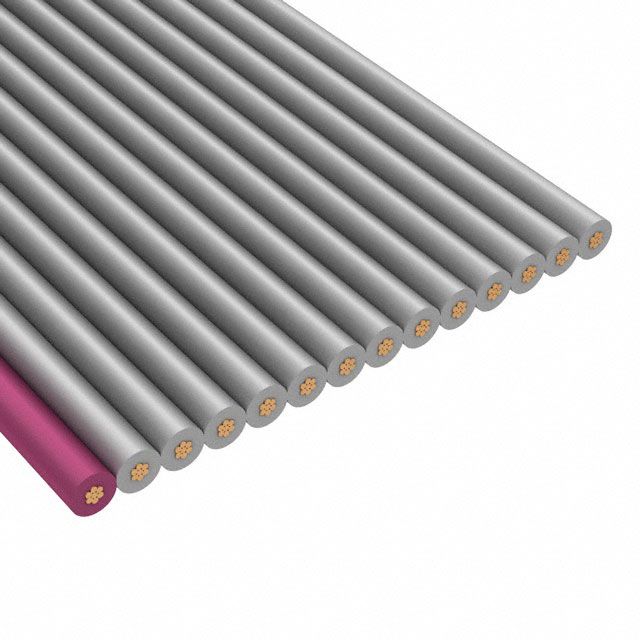

300-30-14-GR-0250F

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Flat Cable
Number of Conductors : 14
Pitch : 0.025" (0.64mm)
Length : 250.0' (76.20m)
Wire Gauge : 30 AWG
Conductor Strand : 7 Strands / 38 AWG
Shielding : Unshielded
Jacket Color : Gray
Ribbon Thickness : 0.026" (0.66mm)
Ribbon Width : 0.350" (8.89mm)
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Voltage : 150V
Operating Temperature : 105°C
Ratings : UL Style 2678
Features : -

15 in stock

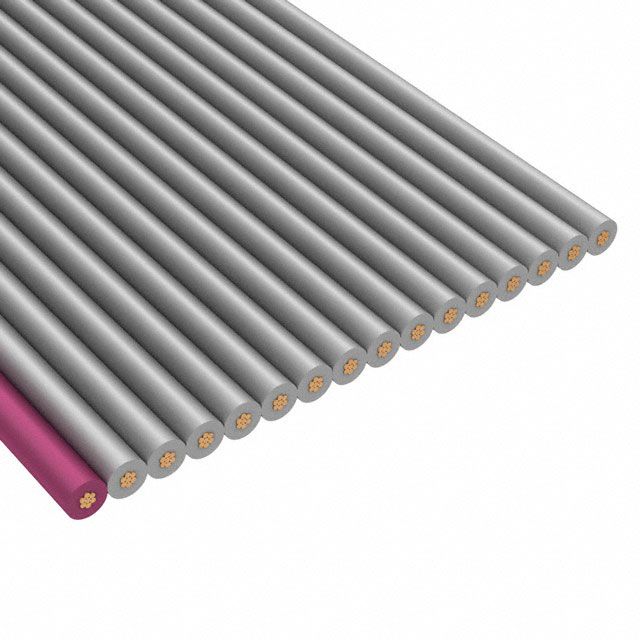

300-30-16-GR-0100F

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Flat Cable
Number of Conductors : 16
Pitch : 0.025" (0.64mm)
Length : 100.0' (30.48m)
Wire Gauge : 30 AWG
Conductor Strand : 7 Strands / 38 AWG
Shielding : Unshielded
Jacket Color : Gray
Ribbon Thickness : 0.026" (0.66mm)
Ribbon Width : 0.400" (10.16mm)
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Voltage : 150V
Operating Temperature : 105°C
Ratings : UL Style 2678
Features : -

30 in stock

300-30-16-GR-0250F

CnC Tech

Manufacturer : CNC Tech
Series : -
Part Status : Active
Cable Type : Flat Cable
Number of Conductors : 16
Pitch : 0.025" (0.64mm)
Length : 250.0' (76.20m)
Wire Gauge : 30 AWG
Conductor Strand : 7 Strands / 38 AWG
Shielding : Unshielded
Jacket Color : Gray
Ribbon Thickness : 0.026" (0.66mm)
Ribbon Width : 0.400" (10.16mm)
Jacket (Insulation) Material : Poly-Vinyl Chloride (PVC)
Voltage : 150V
Operating Temperature : 105°C
Ratings : UL Style 2678
Features : -

4 in stock
