Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 6.5V
Voltage - Breakdown (Min) : 7.22V
Voltage - Clamping (Max) @ Ipp : 11.2V
Current - Peak Pulse (10/1000µs) : 53.6A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 60V
Voltage - Breakdown (Min) : 66.7V
Voltage - Clamping (Max) @ Ipp : 96.8V
Current - Peak Pulse (10/1000µs) : 6.2A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
2688 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 64V
Voltage - Breakdown (Min) : 71.1V
Voltage - Clamping (Max) @ Ipp : 103V
Current - Peak Pulse (10/1000µs) : 5.8A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 7.5V
Voltage - Breakdown (Min) : 8.33V
Voltage - Clamping (Max) @ Ipp : 12.9V
Current - Peak Pulse (10/1000µs) : 46.5A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
2990 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 70V
Voltage - Breakdown (Min) : 77.8V
Voltage - Clamping (Max) @ Ipp : 113V
Current - Peak Pulse (10/1000µs) : 5.3A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
2979 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 85V
Voltage - Breakdown (Min) : 94.4V
Voltage - Clamping (Max) @ Ipp : 137V
Current - Peak Pulse (10/1000µs) : 4.4A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
3000 in stock

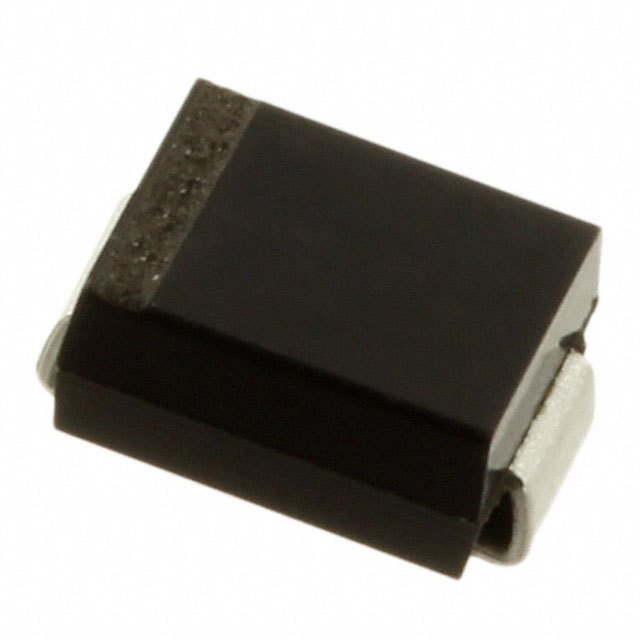

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 9V
Voltage - Breakdown (Min) : 10V
Voltage - Clamping (Max) @ Ipp : 15.4V
Current - Peak Pulse (10/1000µs) : 39A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 10V
Voltage - Breakdown (Min) : 11.1V
Voltage - Clamping (Max) @ Ipp : 17V
Current - Peak Pulse (10/1000µs) : 88.2A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
3000 in stock

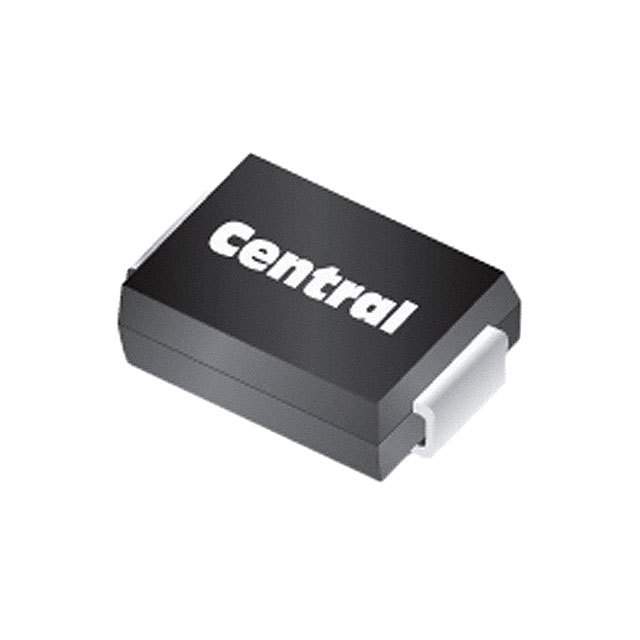

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 11V
Voltage - Breakdown (Min) : 12.2V
Voltage - Clamping (Max) @ Ipp : 18.2V
Current - Peak Pulse (10/1000µs) : 82.4A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 12V
Voltage - Breakdown (Min) : 13.3V
Voltage - Clamping (Max) @ Ipp : 19.9V
Current - Peak Pulse (10/1000µs) : 75.3A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
2980 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 130V
Voltage - Breakdown (Min) : 144V
Voltage - Clamping (Max) @ Ipp : 209V
Current - Peak Pulse (10/1000µs) : 7.2A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
2940 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 130V
Voltage - Breakdown (Min) : 144V
Voltage - Clamping (Max) @ Ipp : 209V
Current - Peak Pulse (10/1000µs) : 7.2A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
3000 in stock
