Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

BXRA-40E2200-B-03 BXRA-40E2200-B-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2750 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E4000-F-00 BXRA-40E4000-F-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3530 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.9V
Lumens/Watt @ Current - Test : 113 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E4000-F-03 BXRA-40E4000-F-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3530 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.9V
Lumens/Watt @ Current - Test : 113 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E4500-H-00 BXRA-40E4500-H-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5700 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 23.5V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 2.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E4500-H-03 BXRA-40E4500-H-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5700 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 23.5V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 2.8A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

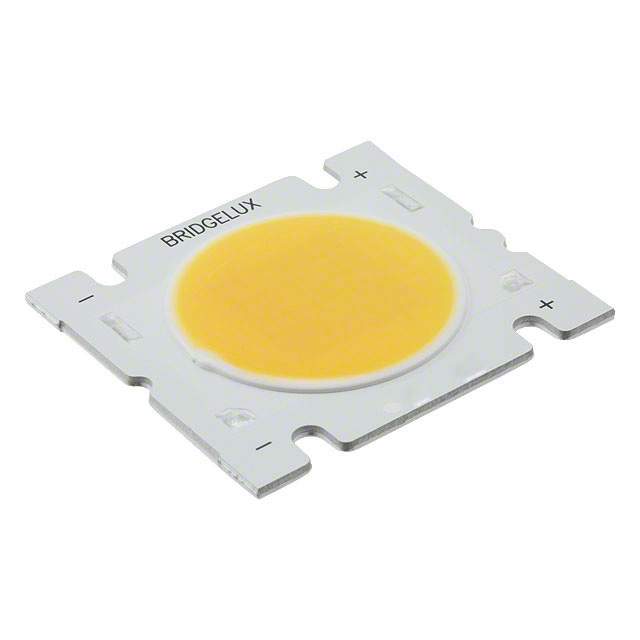

BXRA-40E7500-J-00 BXRA-40E7500-J-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 9010 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.4V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 3.5A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E7500-J-03 BXRA-40E7500-J-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 9010 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.4V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 3.5A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 45.60mm L x 50.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-50C1000-A-04 BXRA-50C1000-A-04

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1000 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 27.3V
Lumens/Watt @ Current - Test : 105 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 20.20mm Diameter
Height : 3.00mm
Light Emitting Surface (LES) : 10.90mm Diameter
Lens Type : Flat
0
100 in stock

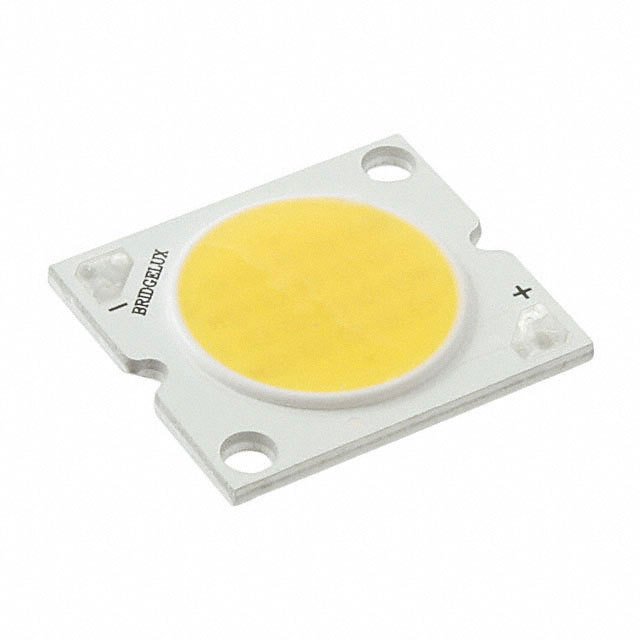

BXRA-50C1100-B-00 BXRA-50C1100-B-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1320 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 20.7V
Lumens/Watt @ Current - Test : 128 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-50C1100-B-04 BXRA-50C1100-B-04

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1320 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 20.7V
Lumens/Watt @ Current - Test : 128 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-50C1600-B-00 BXRA-50C1600-B-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1920 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.6V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-50C1600-B-04 BXRA-50C1600-B-04

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1920 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.6V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
