Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

BXRA-35H2000-B-03 BXRA-35H2000-B-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1540 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36.2V
Lumens/Watt @ Current - Test : 61 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 97
Viewing Angle : 120°
Features : -
Size / Dimension : 25.80mm L x 22.80mm W
Height : 3.50mm
Light Emitting Surface (LES) : 19.15mm Diameter
Lens Type : Domed
0
100 in stock

BXRA-35H4000-H-03 BXRA-35H4000-H-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3345 lm (Typ)
Current - Test : 2.1A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 23.5V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 3A
CRI (Color Rendering Index) : 97
Viewing Angle : 120°
Features : -
Size / Dimension : 49.50mm W x 45.30mm H
Height : 2.60mm
Light Emitting Surface (LES) : 35.00mm Diameter
Lens Type : Flat
0
100 in stock

BXRA-35H7000-J-03 BXRA-35H7000-J-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : RS
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4920 lm (Typ)
Current - Test : 2.8A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 29.4V
Lumens/Watt @ Current - Test : 60 lm/W
Current - Max : 3.8A
CRI (Color Rendering Index) : 97
Viewing Angle : 120°
Features : -
Size / Dimension : 49.50mm W x 45.30mm H
Height : 2.60mm
Light Emitting Surface (LES) : 35.00mm Diameter
Lens Type : Flat
0
100 in stock

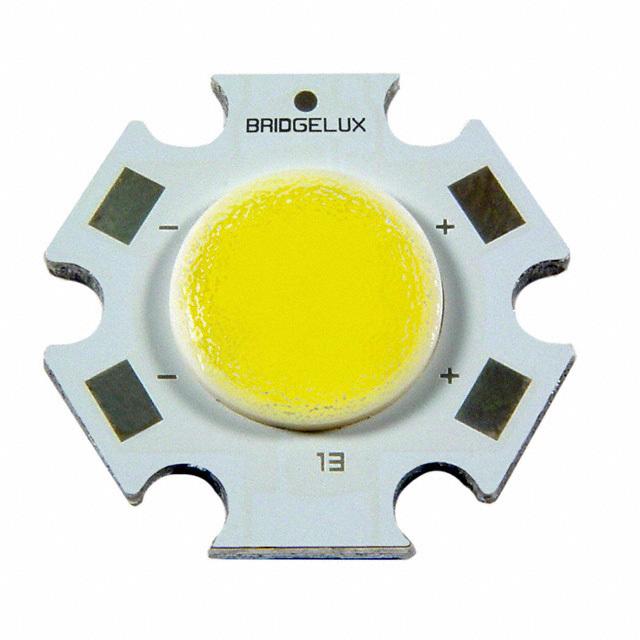

BXRA-40E0600-A-00 BXRA-40E0600-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 680 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.2V
Lumens/Watt @ Current - Test : 107 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E0600-A-03 BXRA-40E0600-A-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 680 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18.2V
Lumens/Watt @ Current - Test : 107 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

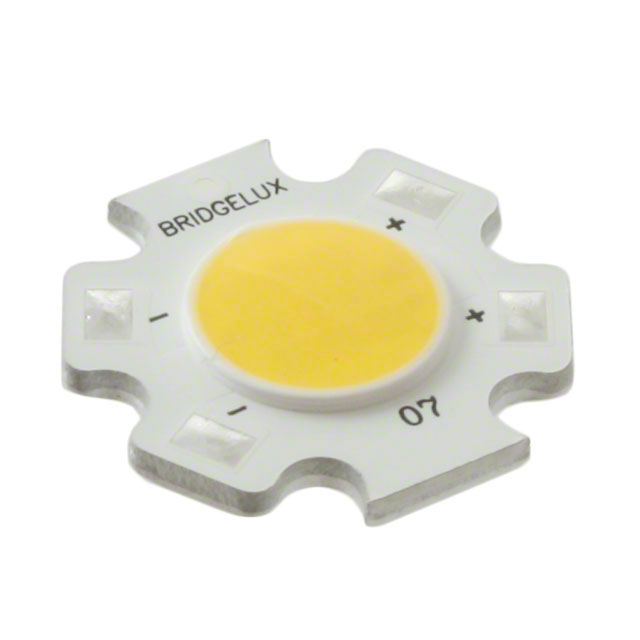

BXRA-40E0810-A-00 BXRA-40E0810-A-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 7-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1030 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 27.3V
Lumens/Watt @ Current - Test : 108 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

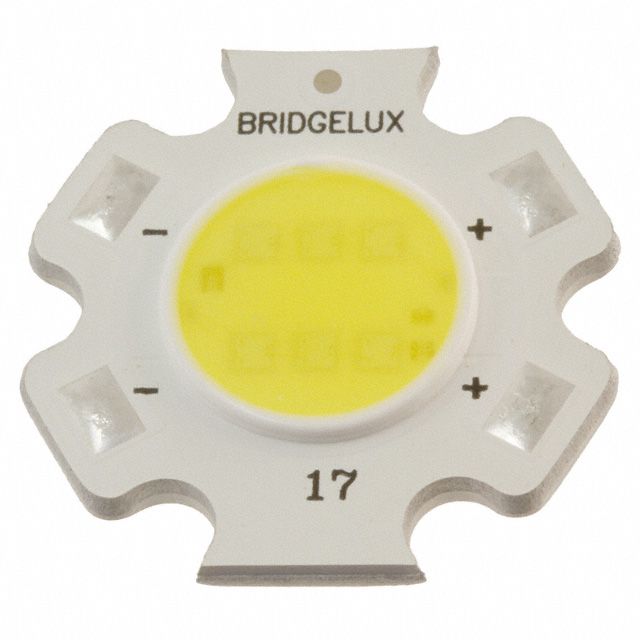

BXRA-40E0810-A-03 BXRA-40E0810-A-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES STAR
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1030 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 27.3V
Lumens/Watt @ Current - Test : 108 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E0950-B-00 BXRA-40E0950-B-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1150 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 20.7V
Lumens/Watt @ Current - Test : 111 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E0950-B-03 BXRA-40E0950-B-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1150 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 20.7V
Lumens/Watt @ Current - Test : 111 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E1350-B-00 BXRA-40E1350-B-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1690 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.6V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

BXRA-40E1350-B-03 BXRA-40E1350-B-03

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1690 lm (Typ)
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.6V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

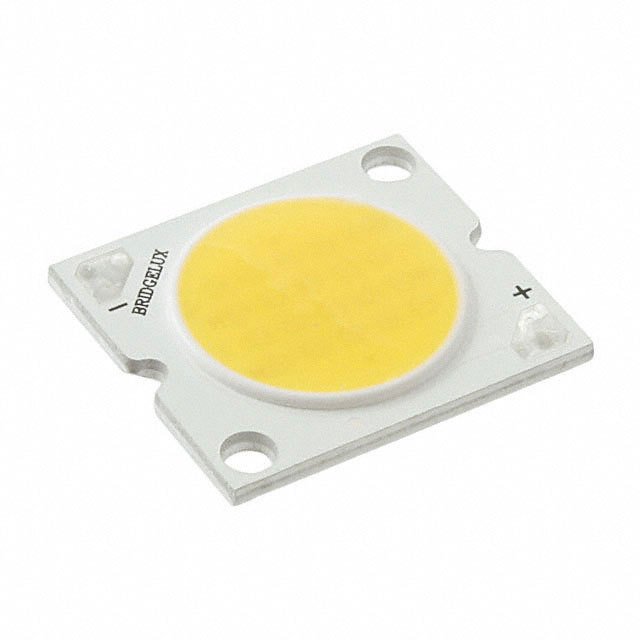

BXRA-40E2200-B-00 BXRA-40E2200-B-00

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : ES
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2750 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 750mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 22.80mm L x 25.80mm W
Height : 3.00mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
