Aries Electronics, Inc.
- Aries is the recognized leading manufacturer of Zero Insertion Force (ZIF) Test Sockets for DIP, PGA, PLCC and SOIC sockets, and continues to be a significant source for a wide variety of specialty electronic connectors. Our corporate objective is to continue to grow within the electronic packaging area, further establishing our position as a major international connector manufacturer.
Part Number
Manufacturer
Description
Unit Price
In Stock
Aries Electronics, Inc.
Manufacturer : Aries Electronics
Series : Correct-A-Chip® 665000
Part Status : Active
Convert From (Adapter End) : SOIC-W
Convert To (Adapter End) : SOIC
Number of Pins : 20
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin-Lead
Housing Material : -
Board Material : FR4 Epoxy Glass
0
100 in stock
Aries Electronics, Inc.
Manufacturer : Aries Electronics
Series : Correct-A-Chip® 666000
Part Status : Active
Convert From (Adapter End) : SOIC
Convert To (Adapter End) : SOWIC
Number of Pins : 20
Pitch - Mating : 0.050" (1.27mm)
Contact Finish - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Pitch - Post : 0.050" (1.27mm)
Contact Finish - Post : Tin-Lead
Housing Material : -
Board Material : FR4 Epoxy Glass
0
100 in stock

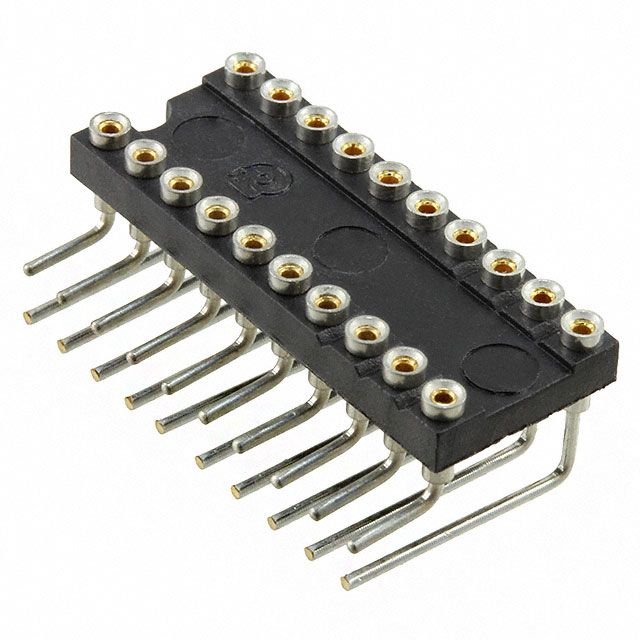

Aries Electronics, Inc.
Manufacturer : Aries Electronics
Packaging : Bulk
Series : Vertisockets™800
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole, Right Angle, Horizontal
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature : -55°C ~ 105°C
0
36 in stock

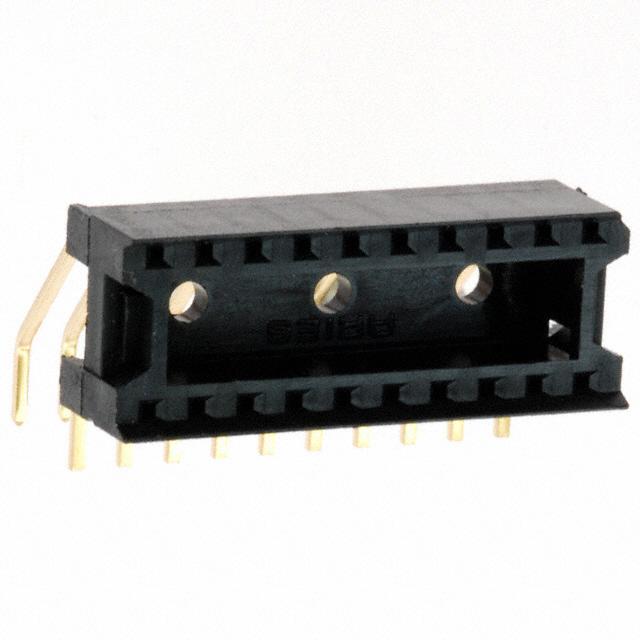

Aries Electronics, Inc.
Manufacturer : Aries Electronics
Packaging : Bulk
Series : Vertisockets™800
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole, Right Angle, Horizontal
Features : Closed Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 10.0µin (0.25µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polyamide (PA46), Nylon 4/6
Operating Temperature : -
0
2432 in stock

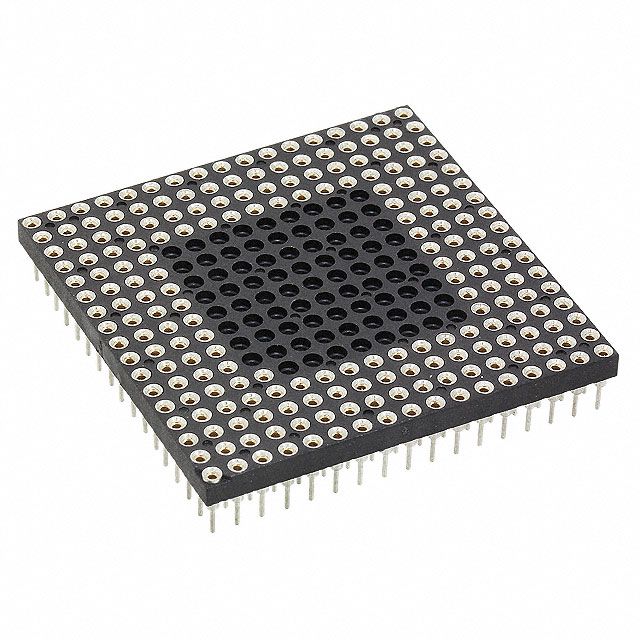

Aries Electronics, Inc.
Manufacturer : Aries Electronics
Packaging : Bulk
Series : PGM
Part Status : Active
Type : PGA
Number of Positions or Pins (Grid) : -
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : -
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature : -55°C ~ 105°C
0
19 in stock

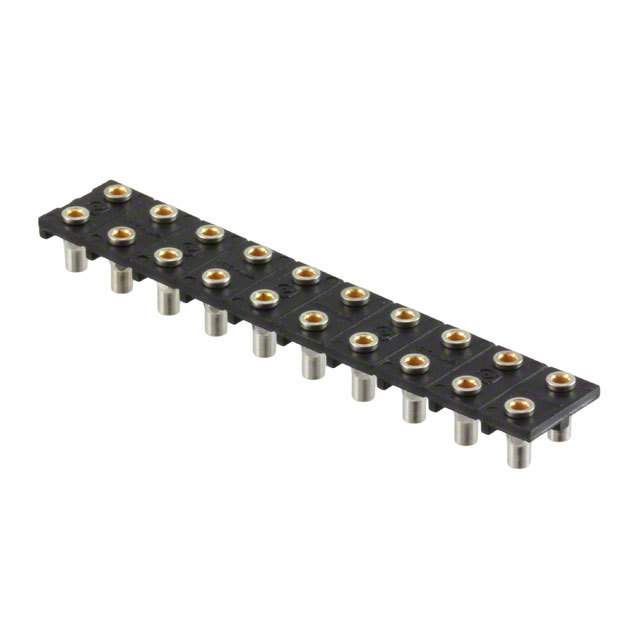

Aries Electronics, Inc.
Manufacturer : Aries Electronics
Packaging : Bulk
Series : F40
Part Status : Active
Connector Type : Receptacle, Breakaway
Contact Type : Female Socket
Style : -
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.200" (5.08mm)
Number of Rows : 2
Row Spacing - Mating : 0.200" (5.08mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : -
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 200.0µin (5.08µm)
Insulation Color : Black
Insulation Height : 0.040" (1.02mm)
Contact Length - Post : 0.129" (3.28mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 8A
Voltage Rating : -
0
100 in stock
Aries Electronics, Inc.
Manufacturer : Aries Electronics
Series : 171
Part Status : Active
Contact Termination : Solder Tab to Solder Tab
Length : 3.00" (76.20mm)
Number of Positions : 21
Pitch : 0.100" (2.54mm)
0
100 in stock
Aries Electronics, Inc.
Manufacturer : Aries Electronics
Series : 172
Part Status : Active
Contact Termination : Receptacle to Solder Tab
Length : 3.00" (76.20mm)
Number of Positions : 21
Pitch : 0.100" (2.54mm)
0
100 in stock
Aries Electronics, Inc.
Manufacturer : Aries Electronics
Series : 173
Part Status : Active
Contact Termination : Receptacle to Receptacle
Length : 3.00" (76.20mm)
Number of Positions : 21
Pitch : 0.100" (2.54mm)
0
100 in stock
Aries Electronics, Inc.
Manufacturer : Aries Electronics
Series : 171
Part Status : Active
Contact Termination : Solder Tab to Solder Tab
Length : 6.00" (152.40mm)
Number of Positions : 21
Pitch : 0.100" (2.54mm)
0
100 in stock
Aries Electronics, Inc.
Manufacturer : Aries Electronics
Series : 172
Part Status : Active
Contact Termination : Receptacle to Solder Tab
Length : 6.00" (152.40mm)
Number of Positions : 21
Pitch : 0.100" (2.54mm)
0
100 in stock
Aries Electronics, Inc.
Manufacturer : Aries Electronics
Series : 173
Part Status : Active
Contact Termination : Receptacle to Receptacle
Length : 6.00" (152.40mm)
Number of Positions : 21
Pitch : 0.100" (2.54mm)
0
100 in stock
