Apex Microtechnology
- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.
Part Number
Manufacturer
Description
Unit Price
In Stock

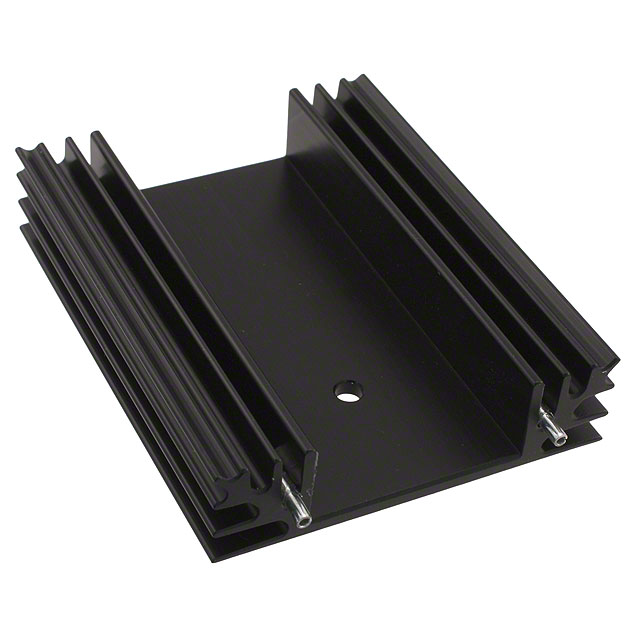

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : PSIP
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 2.360" (59.94mm)
Diameter : -
Height Off Base (Height of Fin) : 0.630" (16.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
49 in stock

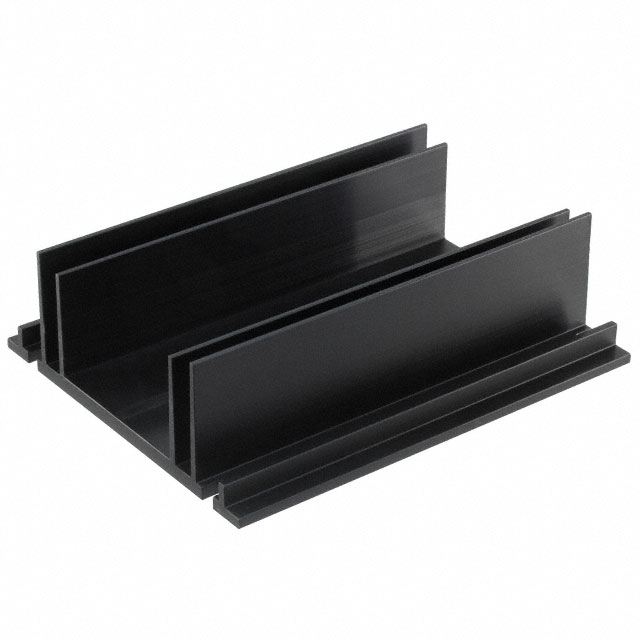

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level, Vertical
Package Cooled : -
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.500" (63.50mm)
Width : 1.650" (41.91mm)
Diameter : -
Height Off Base (Height of Fin) : 1.000" (25.40mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
10 in stock

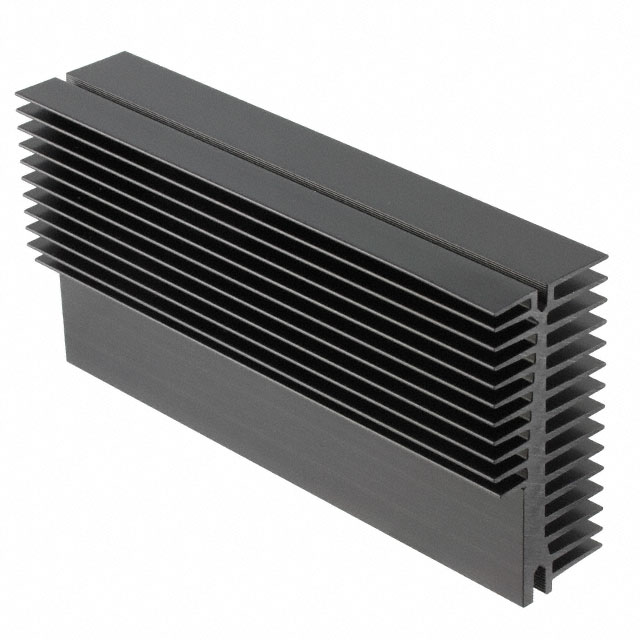

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level, Vertical, Extrusion
Package Cooled : SIP
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 6.000" (152.40mm)
Width : 2.953" (75.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.338" (34.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 1.33°C/W
Material : Aluminum
Material Finish : Black Anodized
0
19 in stock

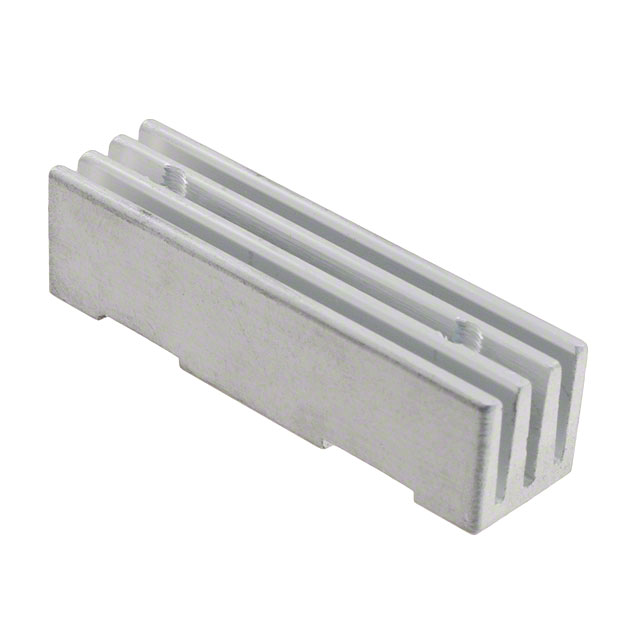

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : -
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 0.400" (10.16mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 16.00°C/W
Material : Aluminum
Material Finish : -
0
100 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
0
5 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 2
Output Type : -
Slew Rate : 167 V/µs
Gain Bandwidth Product : -
-3db Bandwidth : 230kHz
Current - Input Bias : 3.3µA
Voltage - Input Offset : 2mV
Current - Supply : 19mA
Current - Output / Channel : 12A
Voltage - Supply, Single/Dual (±) : 30 V ~ 200 V, ±15 V ~ 100 V
Operating Temperature : 0°C ~ 70°C
Mounting Type : Through Hole
Package / Case : 42-DIP Module
Supplier Device Package : 42-DIP
0
44 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 2
Output Type : -
Slew Rate : 50 V/µs
Gain Bandwidth Product : 30MHz
-3db Bandwidth : -
Current - Input Bias : 2.5µA
Voltage - Input Offset : 6mV
Current - Supply : 50mA
Current - Output / Channel : 11A
Voltage - Supply, Single/Dual (±) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : -
Package / Case : Module
Supplier Device Package : -
0
8 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : -
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 45 V/µs
Gain Bandwidth Product : 8.5MHz
-3db Bandwidth : -
Current - Input Bias : 300nA
Voltage - Input Offset : 3mV
Current - Supply : 30mA
Current - Output / Channel : 32A
Voltage - Supply, Single/Dual (±) : -15 V ~ 60 V
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : 42-DIP Module
Supplier Device Package : Module
0
17 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 170 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 100pA
Voltage - Input Offset : 1mV
Current - Supply : 50mA
Current - Output / Channel : 10A
Voltage - Supply, Single/Dual (±) : 30 V ~ 200 V, ±15 V ~ 100 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 34-DIP Module
Supplier Device Package : 34-DIP
0
608 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 170 V/µs
Gain Bandwidth Product : 10MHz
-3db Bandwidth : -
Current - Input Bias : 70pA
Voltage - Input Offset : 1mV
Current - Supply : 50mA
Current - Output / Channel : 11A
Voltage - Supply, Single/Dual (±) : 30 V ~ 200 V, ±15 V ~ 100 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 34-DIP Module
Supplier Device Package : 34-DIP
0
6 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 130 V/µs
Gain Bandwidth Product : 6MHz
-3db Bandwidth : -
Current - Input Bias : 100pA
Voltage - Input Offset : 1mV
Current - Supply : 142mA
Current - Output / Channel : 15A
Voltage - Supply, Single/Dual (±) : 30 V ~ 100 V, ±15 V ~ 50 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 34-DIP Module
Supplier Device Package : 34-DIP
0
92 in stock
Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : -
Part Status : Active
Type : Board
Motor Type : Servo
Control / Drive Type : Servo DC
Number of Motors : 1
Voltage - Load : -
Current - Output : 3A
Wattage - Load : -
Voltage - Supply : 5VDC
Interface : -
Mounting Type : Chassis Mount
Operating Temperature : -
Features : -
For Use With/Related Products : -
0
3 in stock
