Apex Microtechnology

- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.

Part Number
Manufacturer
Description
Unit Price
In Stock

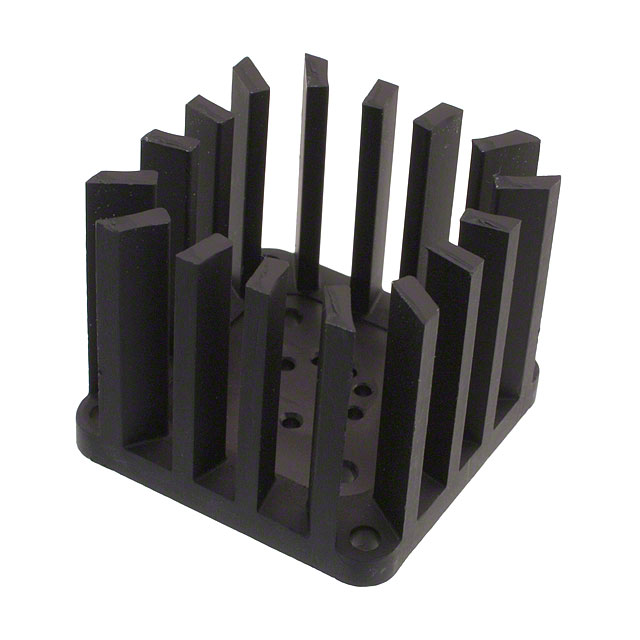

HS02 HS02

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 1.810" (45.97mm)
Width : 1.810" (45.97mm)
Diameter : -
Height Off Base (Height of Fin) : 1.500" (38.10mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 4.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
377 in stock

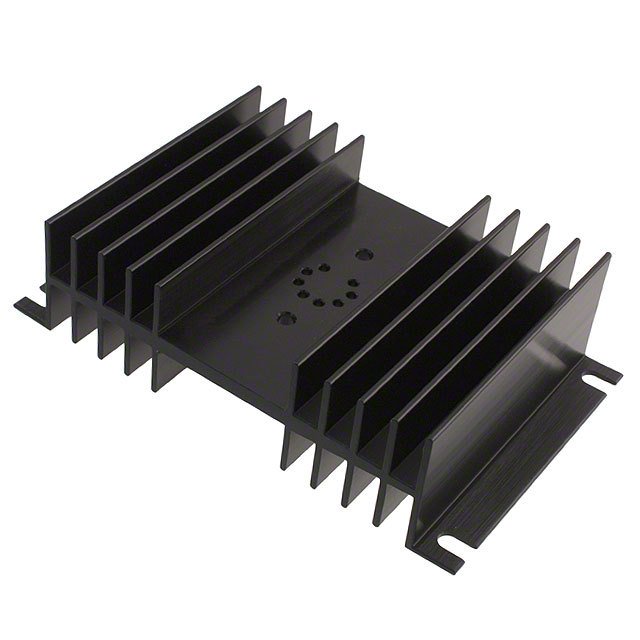

HS03 HS03

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 15.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 1.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 1.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
59 in stock

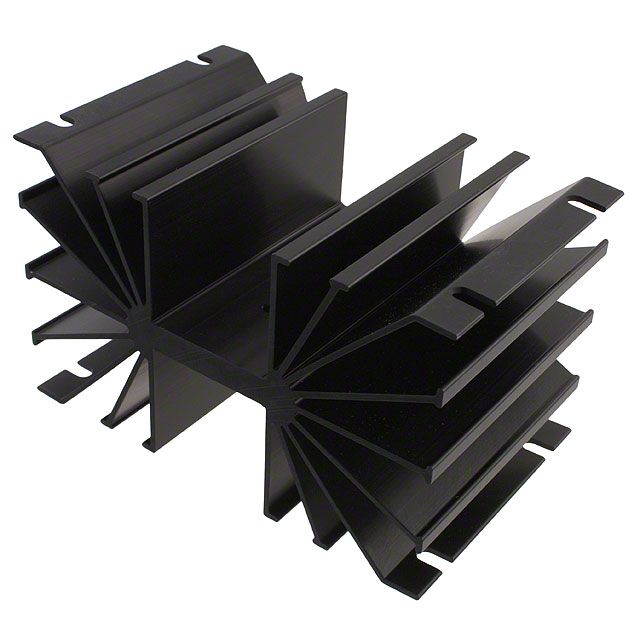

HS04 HS04

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 3.000" (76.20mm)
Power Dissipation @ Temperature Rise : 50.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 0.35°C/W @ 300 LFM
Thermal Resistance @ Natural : 0.95°C/W
Material : Aluminum
Material Finish : Black Anodized
0
8 in stock

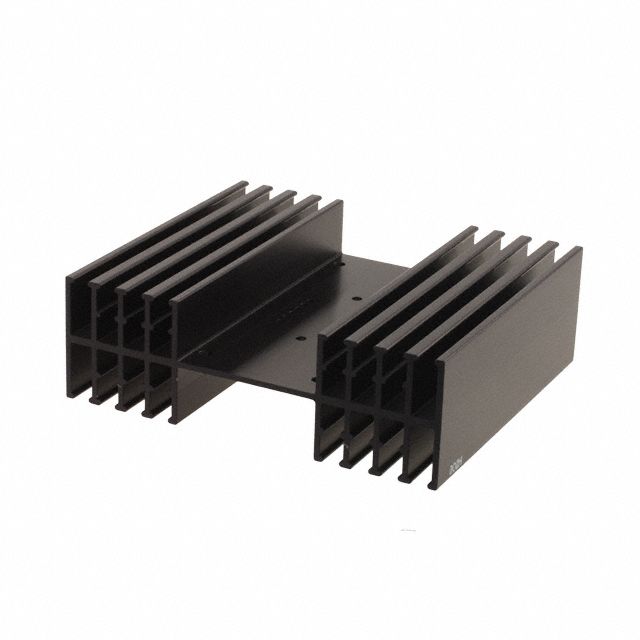

HS06 HS06

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : PDIP
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.500" (139.70mm)
Width : 6.250" (158.75mm)
Diameter : -
Height Off Base (Height of Fin) : 2.000" (50.80mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.30°C/W @ 600 LFM
Thermal Resistance @ Natural : 0.96°C/W
Material : Aluminum
Material Finish : Black Anodized
0
26 in stock

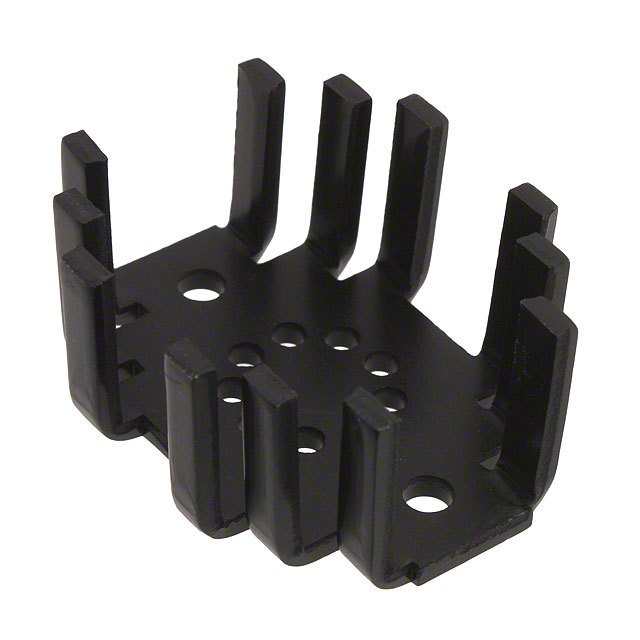

HS09 HS09

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rhombus
Length : 1.630" (41.40mm)
Width : 1.290" (32.77mm)
Diameter : -
Height Off Base (Height of Fin) : 0.750" (19.05mm)
Power Dissipation @ Temperature Rise : 7.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 14.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 11.70°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1026 in stock

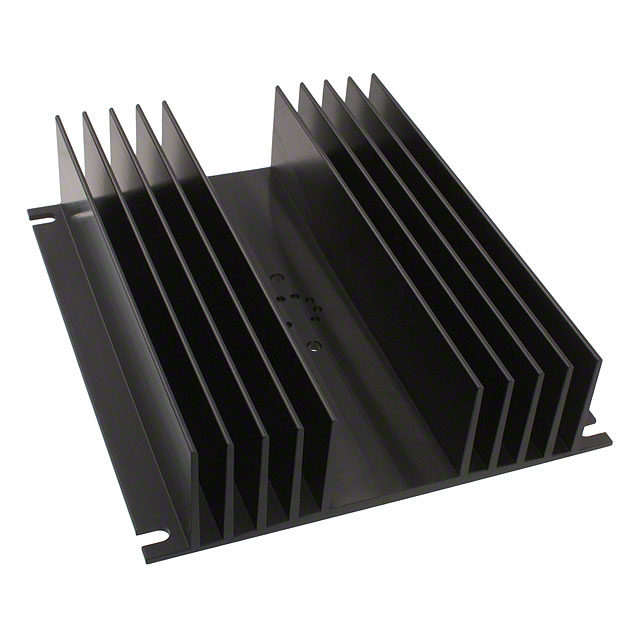

HS13 HS13

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.421" (139.70mm)
Width : 4.812" (122.22mm)
Diameter : -
Height Off Base (Height of Fin) : 1.310" (33.27mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.40°C/W @ 800 LFM
Thermal Resistance @ Natural : 1.48°C/W
Material : Aluminum
Material Finish : Black Anodized
0
98 in stock

HS14 HS14

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 4.812" (122.22mm)
Diameter : -
Height Off Base (Height of Fin) : 1.310" (33.27mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 2.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
12 in stock

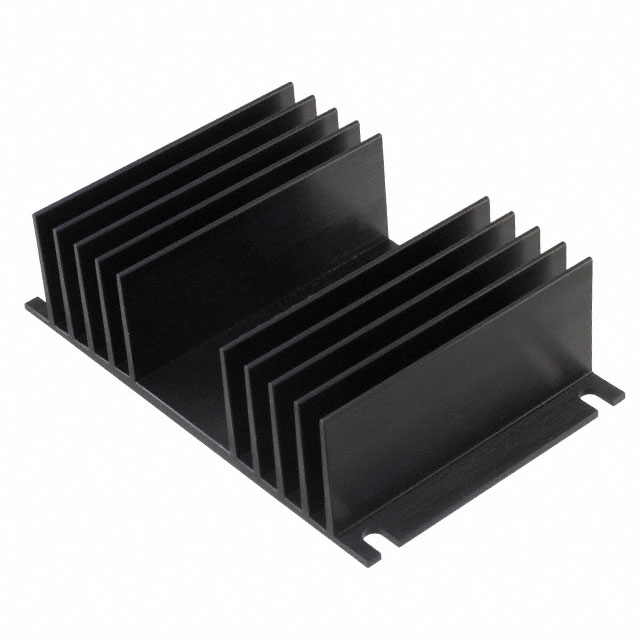

HS16 HS16

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : 10-PowerDip
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 4.812" (122.22mm)
Diameter : -
Height Off Base (Height of Fin) : 1.310" (33.27mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 600 LFM
Thermal Resistance @ Natural : 2.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
4 in stock

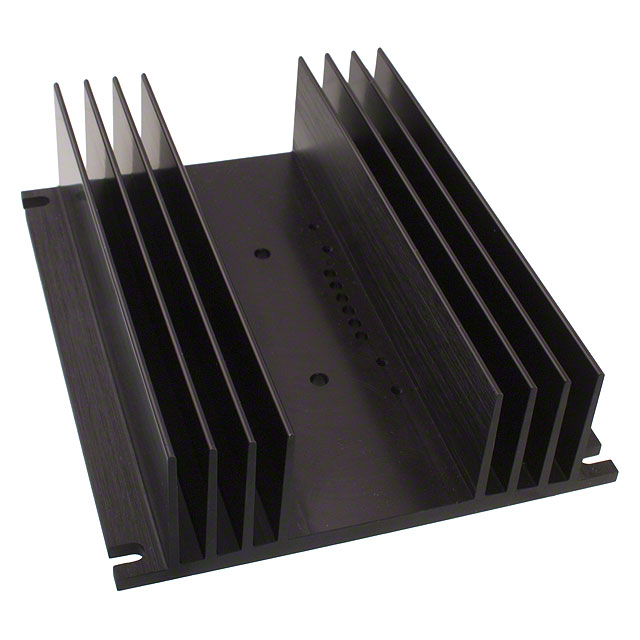

HS18 HS18

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : PDIP
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.421" (139.70mm)
Width : 4.612" (117.14mm)
Diameter : -
Height Off Base (Height of Fin) : 1.500" (38.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 1.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
17 in stock

HS20 HS20

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level
Package Cooled : -
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.500" (88.90mm)
Width : 5.350" (135.89mm)
Diameter : -
Height Off Base (Height of Fin) : 2.276" (57.81mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 1.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
11 in stock

HS24 HS24

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Top Mount
Package Cooled : SMD
Attachment Method : SMD Pad
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.220" (30.99mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 16.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 50.00°C/W
Material : Copper
Material Finish : Solderable
0
123 in stock

HS26 HS26

Apex Microtechnology
Manufacturer : Apex Microtechnology
Series : Apex Precision Power®
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : -
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 9.000" (228.60mm)
Width : 6.620" (168.15mm)
Diameter : -
Height Off Base (Height of Fin) : 1.780" (45.21mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
9 in stock
