- Amgis is a manufacturer/importer of high frequency inductive components and AC/DC power supplies. We import and export components daily through our purchasing and sales networking systems, including India, Asia, Europe, and the United States. The majority of our standard components are manufactured at our ISO9001 certified facility located in Salem, India. Our strength is in our service, having qualified engineers at all of our locations, and exceptional customer service teams, we can qualify most requirements and have answers to requests within hours instead of days.
Amgis was originally a subsidiary of the Talema Group and carries all the Talema high frequency component lines, including power inductors, common mode chokes, current sensors, telecom products, and networking products. Also, we have diversified into the switching power supply market, including standard lines and custom designs, both open style and enclosed. By drawing upon the resources of our extensive worldwide network, Amgis provides its customers with high quality components at very competitive prices.
Part Number
Manufacturer
Description
Unit Price
In Stock

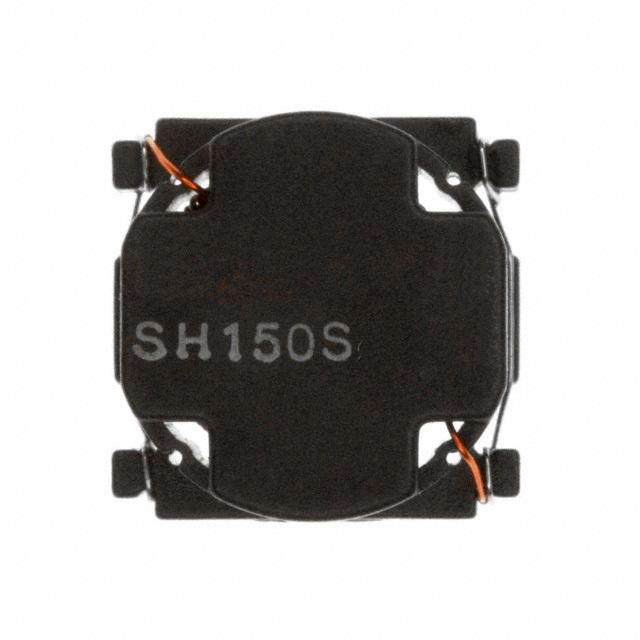

AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 112µH
Tolerance : ±20%
Current Rating : 1.26A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 300 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.614" L x 0.591" W (15.60mm x 15.00mm)
Height - Seated (Max) : 0.388" (9.85mm)
0
3869 in stock
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 77µH
Tolerance : ±20%
Current Rating : 1.54A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 200 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.614" L x 0.591" W (15.60mm x 15.00mm)
Height - Seated (Max) : 0.388" (9.85mm)
0
2768 in stock
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 53µH
Tolerance : ±20%
Current Rating : 1.87A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 130 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.614" L x 0.591" W (15.60mm x 15.00mm)
Height - Seated (Max) : 0.388" (9.85mm)
0
351 in stock

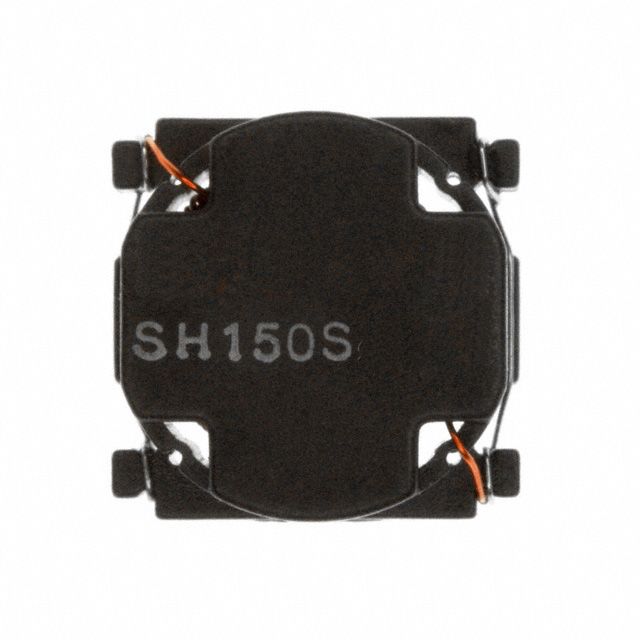

AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 37µH
Tolerance : ±20%
Current Rating : 2.24A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.614" L x 0.591" W (15.60mm x 15.00mm)
Height - Seated (Max) : 0.388" (9.85mm)
0
1397 in stock
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 24µH
Tolerance : ±20%
Current Rating : 2.74A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 70 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.614" L x 0.591" W (15.60mm x 15.00mm)
Height - Seated (Max) : 0.388" (9.85mm)
0
667 in stock
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 17µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.614" L x 0.591" W (15.60mm x 15.00mm)
Height - Seated (Max) : 0.388" (9.85mm)
0
1387 in stock
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 25µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 40 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.701" L x 0.669" W (17.80mm x 17.00mm)
Height - Seated (Max) : 0.443" (11.25mm)
0
4355 in stock

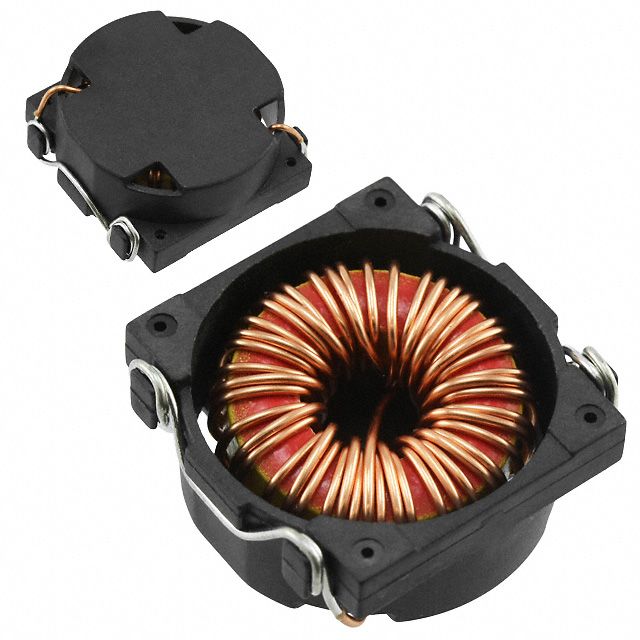

AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 38µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.957" L x 0.925" W (24.30mm x 23.50mm)
Height - Seated (Max) : 0.427" (10.85mm)
0
3017 in stock

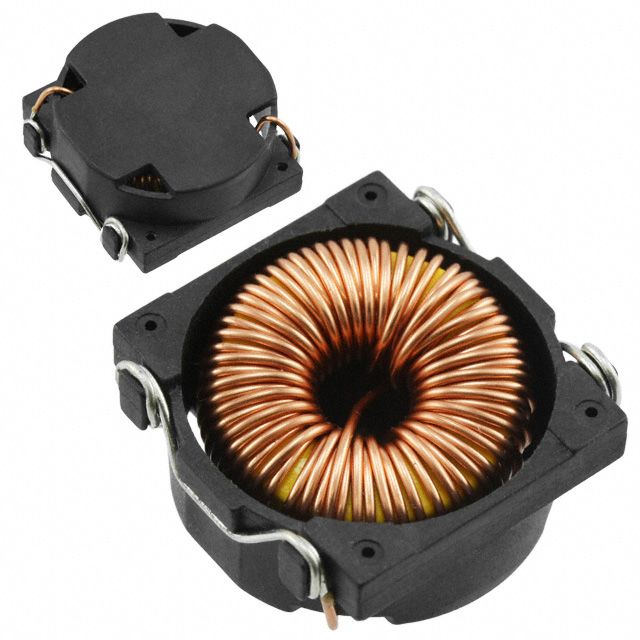

AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 77µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 80 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.957" L x 0.925" W (24.30mm x 23.50mm)
Height - Seated (Max) : 0.427" (10.85mm)
0
149 in stock
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 118µH
Tolerance : ±20%
Current Rating : 380mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.2 Ohm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.433" L x 0.441" W (11.00mm x 11.20mm)
Height - Seated (Max) : 0.280" (7.10mm)
0
217 in stock
AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 115µH
Tolerance : ±20%
Current Rating : 670mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 400 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.551" L x 0.559" W (14.00mm x 14.20mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
147 in stock

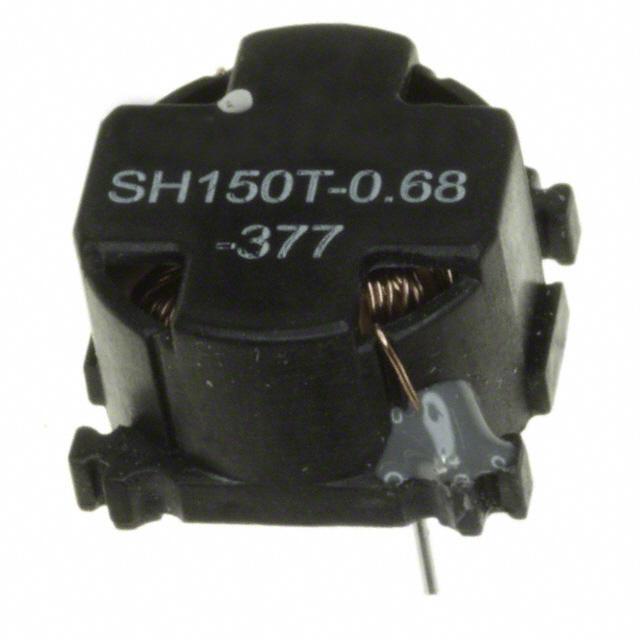

AlfaMag Electronics (AMGIS)
Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH150
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 377µH
Tolerance : ±20%
Current Rating : 680mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.614" L x 0.591" W (15.60mm x 15.00mm)
Height - Seated (Max) : 0.358" (9.10mm)
0
303 in stock
