Altera (Intel)
- Intel and Altera announced on June 1, 2015, that they had entered into a definitive agreement under which Intel would acquire Altera. The transaction closed December 28, 2015. The acquisition couples Intel’s leading-edge products and manufacturing process with Altera’s leading field-programmable gate array (FPGA) technology. The combination enables new classes of products that meet customer needs in the data center and Internet of Things (IoT) market segments.
Part Number
Manufacturer
Description
Unit Price
In Stock

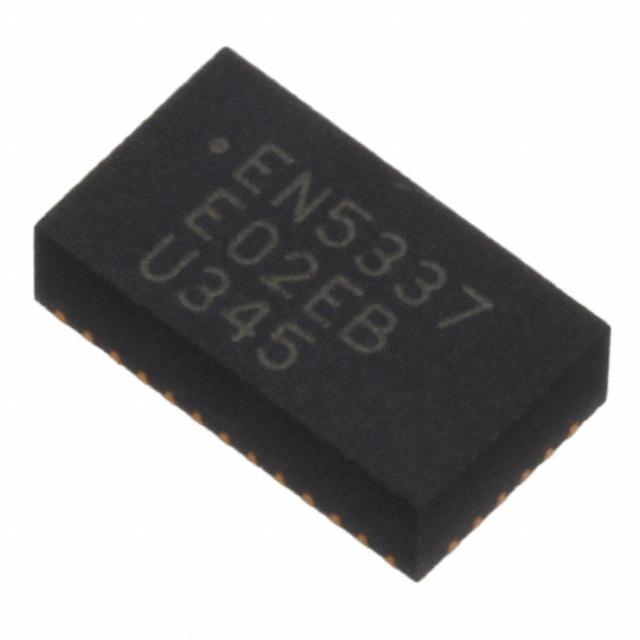

EN5337QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.6 ~ 5 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 38-FQFN Exposed Pad
Size / Dimension : 0.28" L x 0.16" W x 0.07" H (7.0mm x 4.0mm x 1.9mm)
Supplier Device Package : 38-QFN (7x4)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.6 ~ 5 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 38-FQFN Exposed Pad
Size / Dimension : 0.28" L x 0.16" W x 0.07" H (7.0mm x 4.0mm x 1.9mm)
Supplier Device Package : 38-QFN (7x4)
Control Features : Enable, Active High
0
3994 in stock

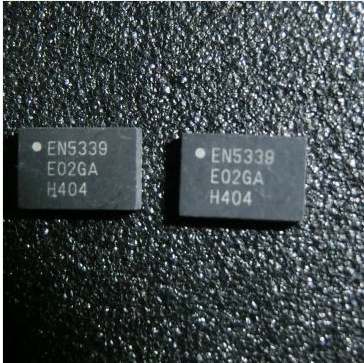

EN5339QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.4V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.6 ~ 4.6 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 24-PowerTQFN Module
Size / Dimension : 0.24" L x 0.16" W x 0.04" H (6.0mm x 4.0mm x 1.1mm)
Supplier Device Package : 24-QFN (6x4)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.4V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.6 ~ 4.6 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 24-PowerTQFN Module
Size / Dimension : 0.24" L x 0.16" W x 0.04" H (6.0mm x 4.0mm x 1.1mm)
Supplier Device Package : 24-QFN (6x4)
Control Features : Enable, Active High
0
100 in stock

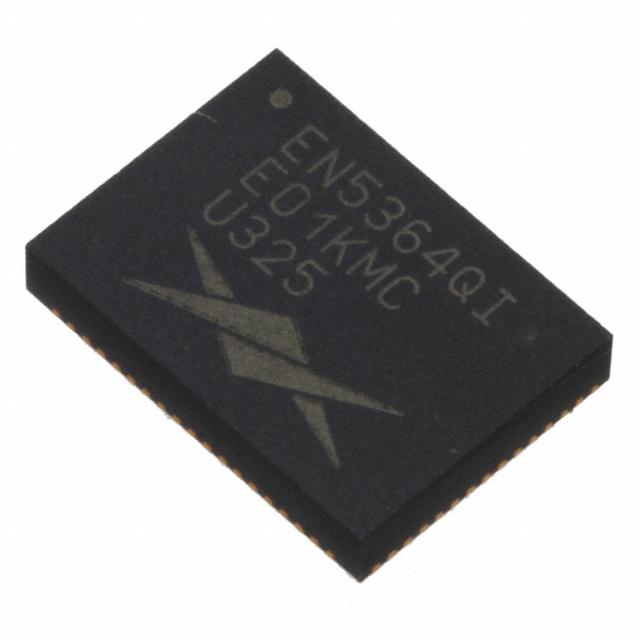

EN5364QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 6.6V
Voltage - Output 1 : 0.6 ~ 6.12 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 68-FQFN Exposed Pad, Module
Size / Dimension : 0.43" L x 0.31" W x 0.07" H (11.0mm x 8.0mm x 1.9mm)
Supplier Device Package : 68-QFN (11x8)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 6.6V
Voltage - Output 1 : 0.6 ~ 6.12 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 68-FQFN Exposed Pad, Module
Size / Dimension : 0.43" L x 0.31" W x 0.07" H (11.0mm x 8.0mm x 1.9mm)
Supplier Device Package : 68-QFN (11x8)
Control Features : Enable, Active High
0
1147 in stock
EN5365QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.75 ~ 3.3 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 58-QFN Exposed Pad, Module
Size / Dimension : 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm)
Supplier Device Package : 58-QFN (12x10)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.75 ~ 3.3 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 58-QFN Exposed Pad, Module
Size / Dimension : 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm)
Supplier Device Package : 58-QFN (12x10)
Control Features : Enable, Active High
0
1094 in stock

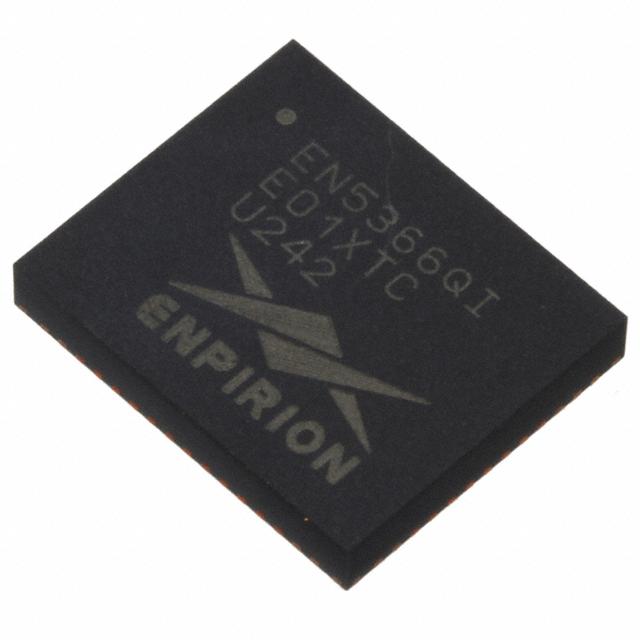

EN5366QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.75 ~ 3.3 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 58-QFN Exposed Pad, Module
Size / Dimension : 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm)
Supplier Device Package : 58-QFN (12x10)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.75 ~ 3.3 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 58-QFN Exposed Pad, Module
Size / Dimension : 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm)
Supplier Device Package : 58-QFN (12x10)
Control Features : Enable, Active High
0
158 in stock

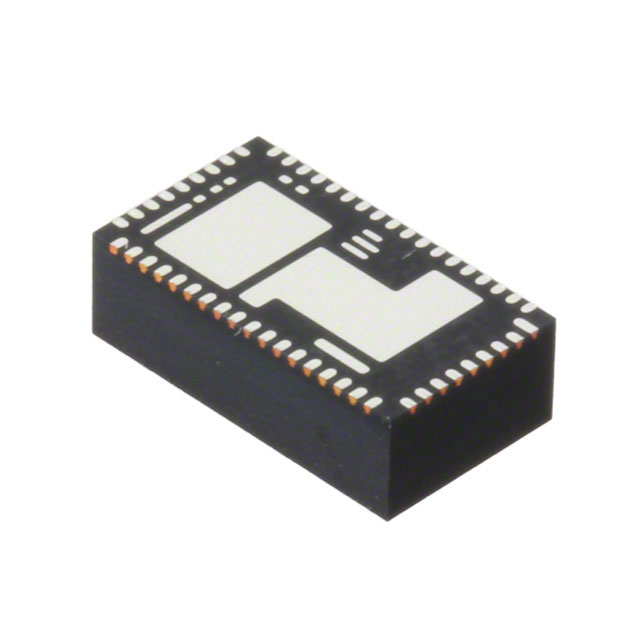

EN5367QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.5V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.6 ~ 4.9 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 54-PowerBFQFN Module
Size / Dimension : 0.39" L x 0.22" W x 0.12" H (10.0mm x 5.5mm x 3.0mm)
Supplier Device Package : 54-QFN (10x5.5)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.5V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.6 ~ 4.9 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 54-PowerBFQFN Module
Size / Dimension : 0.39" L x 0.22" W x 0.12" H (10.0mm x 5.5mm x 3.0mm)
Supplier Device Package : 54-QFN (10x5.5)
Control Features : Enable, Active High
0
823 in stock

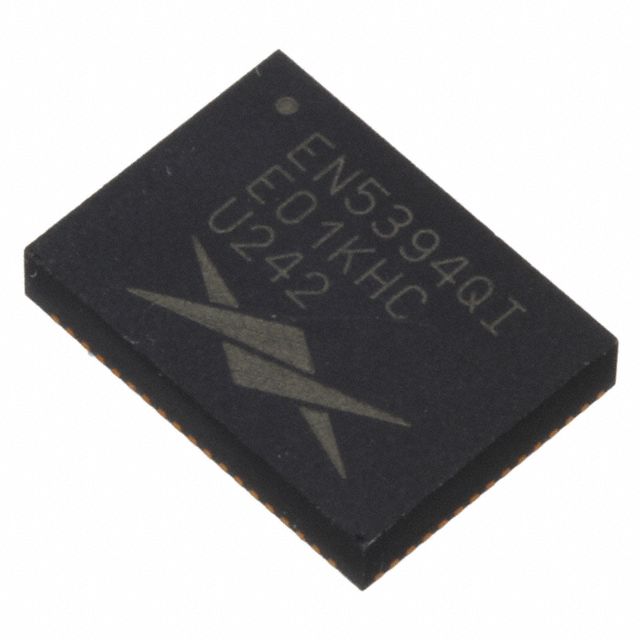

EN5394QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 6.6V
Voltage - Output 1 : 0.6 ~ 5.88 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 68-FQFN Exposed Pad, Module
Size / Dimension : 0.43" L x 0.31" W x 0.07" H (11.0mm x 8.0mm x 1.9mm)
Supplier Device Package : 68-QFN (11x8)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 6.6V
Voltage - Output 1 : 0.6 ~ 5.88 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 68-FQFN Exposed Pad, Module
Size / Dimension : 0.43" L x 0.31" W x 0.07" H (11.0mm x 8.0mm x 1.9mm)
Supplier Device Package : 68-QFN (11x8)
Control Features : Enable, Active High
0
676 in stock

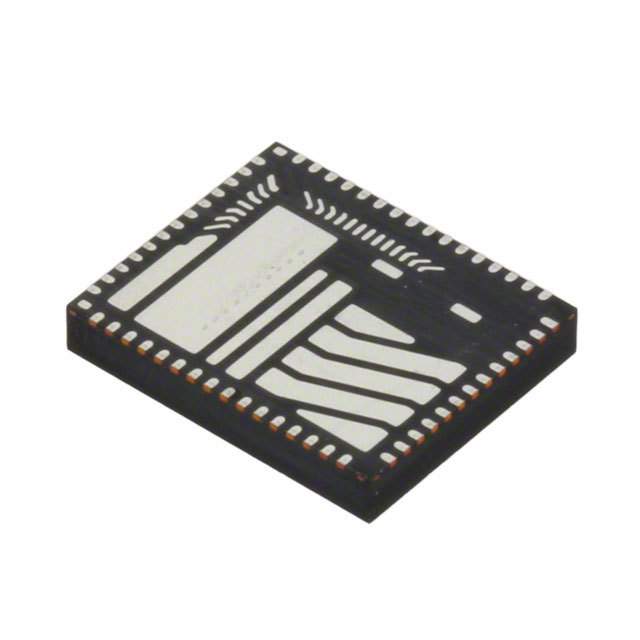

EN5395QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.75 ~ 5.05 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 58-PowerFQFN Module
Size / Dimension : 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm)
Supplier Device Package : 58-QFN (12x10)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.75 ~ 5.05 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 58-PowerFQFN Module
Size / Dimension : 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm)
Supplier Device Package : 58-QFN (12x10)
Control Features : Enable, Active High
0
137 in stock
EN5396QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.75 ~ 5.05 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 58-PowerFQFN Module
Size / Dimension : 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm)
Supplier Device Package : 58-QFN (12x10)
Control Features : Enable, Active High
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion® 5300
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.375V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 0.75 ~ 5.05 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 58-PowerFQFN Module
Size / Dimension : 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm)
Supplier Device Package : 58-QFN (12x10)
Control Features : Enable, Active High
0
500 in stock

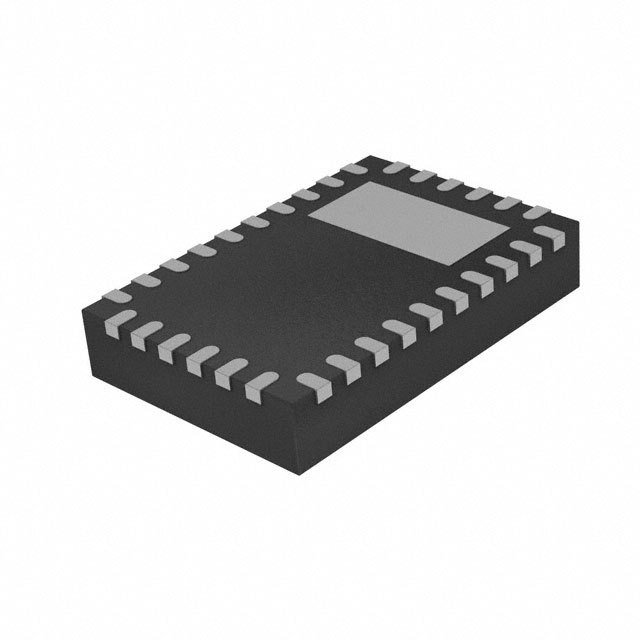

EN6310QA
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100, Enpirion®
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 0.6V
Voltage - Output (Max) : 3.3V
Current - Output : 1A
Frequency - Switching : 2.2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 30-PowerFQFN
Supplier Device Package : 30-QFN (4x5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100, Enpirion®
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 0.6V
Voltage - Output (Max) : 3.3V
Current - Output : 1A
Frequency - Switching : 2.2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 30-PowerFQFN
Supplier Device Package : 30-QFN (4x5)
0
369 in stock
EN6310QI
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 0.6V
Voltage - Output (Max) : 3.3V
Current - Output : 1A
Frequency - Switching : 2.2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 30-PowerFQFN
Supplier Device Package : 30-QFN (4x5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 0.6V
Voltage - Output (Max) : 3.3V
Current - Output : 1A
Frequency - Switching : 2.2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 30-PowerFQFN
Supplier Device Package : 30-QFN (4x5)
0
1816 in stock

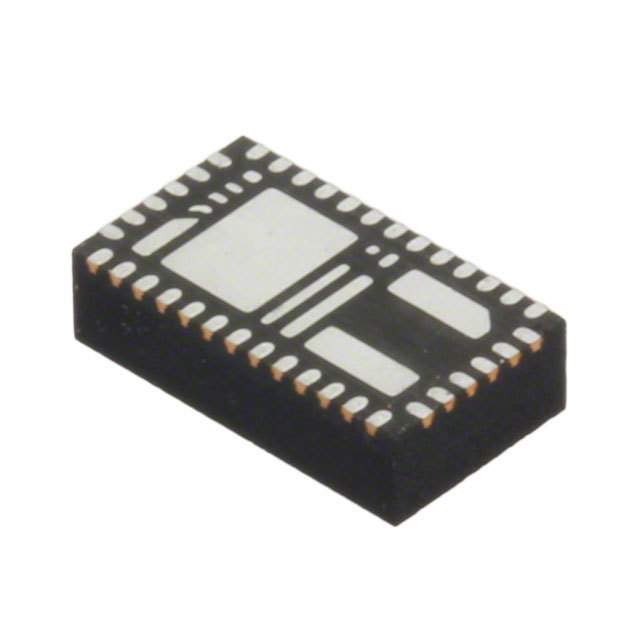

EN6337QA
Altera (Intel)
Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.5V
Voltage - Input (Max) : 6.6V
Voltage - Output 1 : 0.6 ~ 6.285 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 105°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 38-FQFN Exposed Pad
Size / Dimension : 0.28" L x 0.16" W x 0.07" H (7.0mm x 4.0mm x 1.9mm)
Supplier Device Package : 38-QFN (7x4)
Control Features : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.5V
Voltage - Input (Max) : 6.6V
Voltage - Output 1 : 0.6 ~ 6.285 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 105°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 38-FQFN Exposed Pad
Size / Dimension : 0.28" L x 0.16" W x 0.07" H (7.0mm x 4.0mm x 1.9mm)
Supplier Device Package : 38-QFN (7x4)
Control Features : -
0
3678 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
