Altera (Intel)

- Intel and Altera announced on June 1, 2015, that they had entered into a definitive agreement under which Intel would acquire Altera. The transaction closed December 28, 2015. The acquisition couples Intel’s leading-edge products and manufacturing process with Altera’s leading field-programmable gate array (FPGA) technology. The combination enables new classes of products that meet customer needs in the data center and Internet of Things (IoT) market segments.


Part Number

Manufacturer

Description

Unit Price

In Stock

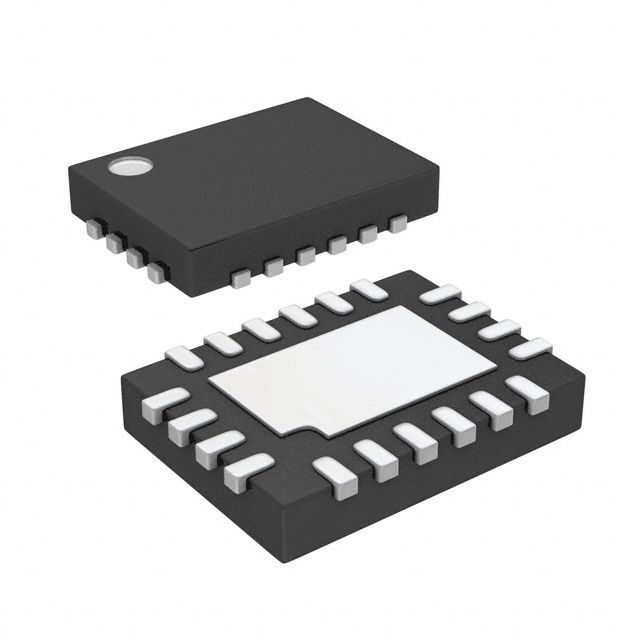

EC7100VQI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Discontinued at
Applications : Controller, FPGA
Voltage - Input : 3.3 V ~ 25 V
Number of Outputs : 1
Voltage - Output : 0.5 V ~ 5 V
Operating Temperature : -10°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 20-VFQFN Exposed Pad
Supplier Device Package : 20-QFN (3x4)

879 in stock

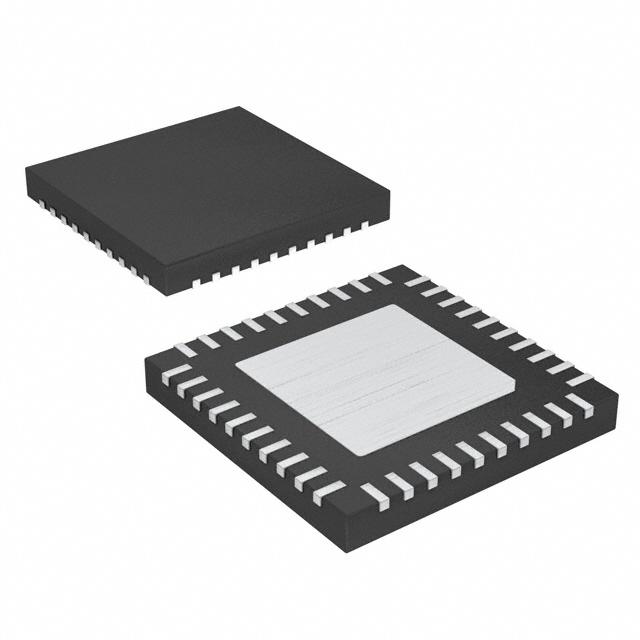

EC7401QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Output Type : PWM Signal
Function : Step-Down
Output Configuration : Positive, Isolation Capable
Topology : Buck
Number of Outputs : 4
Output Phases : 4
Voltage - Supply (Vcc/Vdd) : 4.75 V ~ 5.25 V
Frequency - Switching : 80kHz ~ 1MHz
Duty Cycle (Max) : 66.7%
Synchronous Rectifier : -
Clock Sync : No
Serial Interfaces : -
Control Features : Enable, Frequency Control, Power Good, Soft Start
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 40-VFQFN Exposed Pad
Supplier Device Package : 40-QFN (6x6)

703 in stock

ED8101P00QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Active
Output Type : PWM Signal
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Number of Outputs : 1
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 3 V ~ 5.25 V
Frequency - Switching : 500kHz ~ 1MHz
Duty Cycle (Max) : 100%
Synchronous Rectifier : -
Clock Sync : No
Serial Interfaces : I²C
Control Features : Power Good
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)

1021 in stock

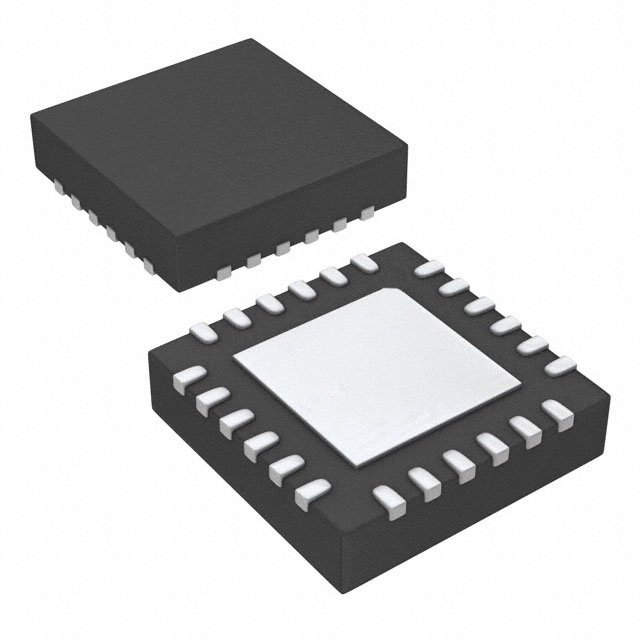

ED8106N00QI

Altera (Intel)

Manufacturer : Intel
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Enpirion®
Part Status : Discontinued at
Output Type : PWM Signal
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Number of Outputs : 1
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 3 V ~ 5.25 V
Frequency - Switching : 500kHz ~ 1MHz
Duty Cycle (Max) : 100%
Synchronous Rectifier : -
Clock Sync : No
Serial Interfaces : -
Control Features : Power Good
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)

1754 in stock

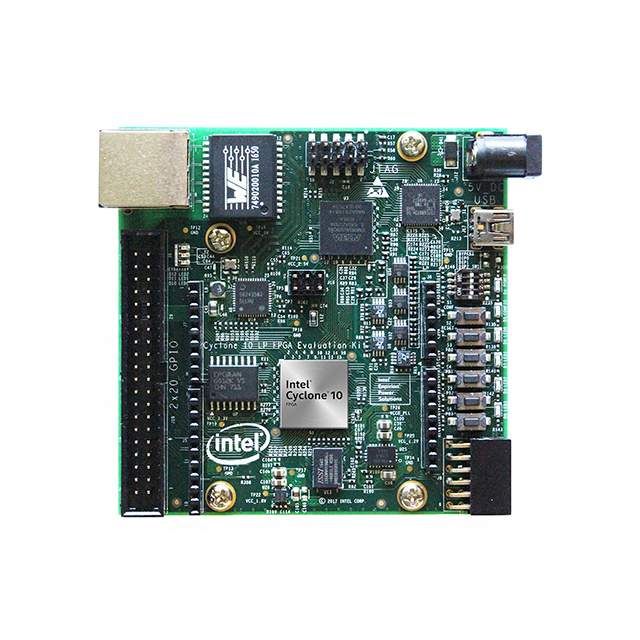

EK-10CL025U256

Altera (Intel)

Manufacturer : Intel
Series : Cyclone® 10 LP
Part Status : Active
Type : FPGA
For Use With/Related Products : Cyclone 10 LP
Contents : Board(s)

104 in stock

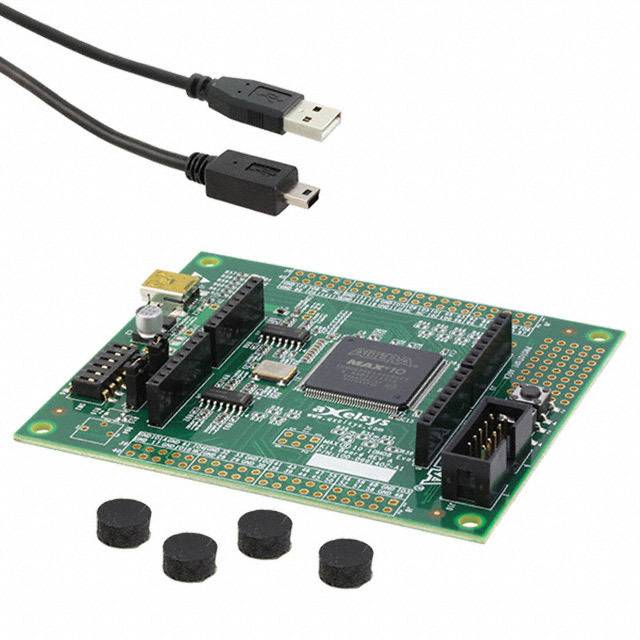

EK-10M08E144

Altera (Intel)

Manufacturer : Intel
Series : MAX® 10
Part Status : Active
Type : FPGA
For Use With/Related Products : MAX® 10
Contents : Board(s)

134 in stock

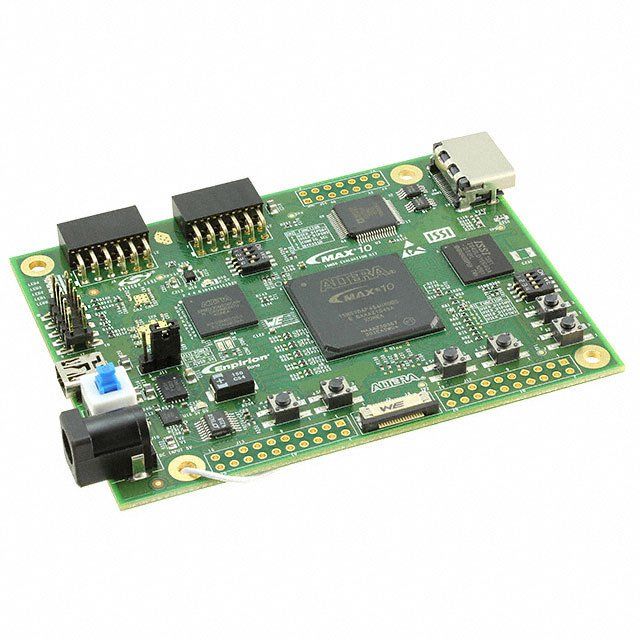

EK-10M50F484

Altera (Intel)

Manufacturer : Intel
Series : MAX® 10
Part Status : Active
Type : FPGA
For Use With/Related Products : MAX® 10
Contents : Board(s), Cable(s)

44 in stock

EM2030L01QI

Altera (Intel)

Manufacturer : Intel
Packaging : Tray
Series : Enpirion® 2030
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 16V
Voltage - Output 1 : 0.5 V ~ 1.325 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 30A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, OVP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 90%
Mounting Type : Surface Mount
Package / Case : 100-PowerBQFN Module
Size / Dimension : 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Supplier Device Package : 100-QFN (17x11)
Control Features : Enable, Active High

489 in stock

EM2120H01QI

Altera (Intel)

Manufacturer : Intel
Packaging : Tray
Series : Enpirion® 2120
Part Status : Active
Type : Non-Isolated PoL Module, Digital
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 16V
Voltage - Output 1 : 1.325 ~ 5 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 100-PowerBQFN Module
Size / Dimension : 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Supplier Device Package : 100-QFN (17x11)
Control Features : -

74 in stock

EM2120L01QI

Altera (Intel)

Manufacturer : Intel
Packaging : Tray
Series : Enpirion® 2120
Part Status : Active
Type : Non-Isolated PoL Module, Digital
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 16V
Voltage - Output 1 : 0.7 ~ 1.325 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 90%
Mounting Type : Surface Mount
Package / Case : 100-PowerBQFN Module
Size / Dimension : 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Supplier Device Package : 100-QFN (17x11)
Control Features : -

326 in stock

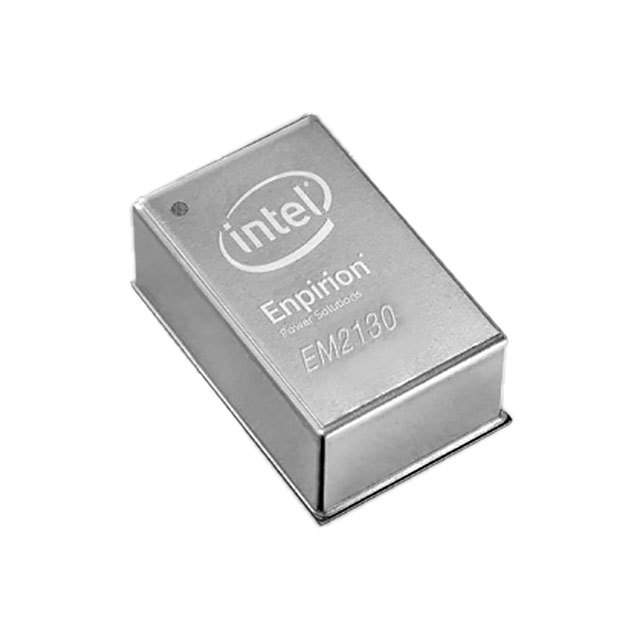

EM2130H01QI

Altera (Intel)

Manufacturer : Intel
Packaging : Tray
Series : Enpirion®
Part Status : Active
Type : Non-Isolated PoL Module, Digital
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 16V
Voltage - Output 1 : 1.35 ~ 3.6 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 30A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 100-PowerBQFN Module
Size / Dimension : 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Supplier Device Package : 100-QFN (17x11)
Control Features : -

667 in stock

EM2130L01QI

Altera (Intel)

Manufacturer : Intel
Packaging : Tray
Series : Enpirion®
Part Status : Active
Type : Non-Isolated PoL Module, Digital
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 16V
Voltage - Output 1 : 0.7 ~ 1.325 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 30A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 90%
Mounting Type : Surface Mount
Package / Case : 100-PowerBQFN Module
Size / Dimension : 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Supplier Device Package : 100-QFN (17x11)
Control Features : -

100 in stock
