Allegro MicroSystems, LLC.
- Allegro MicroSystems, (Allegro) is a leader in developing high-performance power and sensing semiconductors. Allegro's innovative solutions serve high-growth applications within the automotive market, with additional focus on industrial and consumer/computing solutions. Allegro is headquartered in Manchester, New Hampshire (USA) with design, applications, and sales support centers located worldwide.
Part Number
Manufacturer
Description
Unit Price
In Stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Last Time Buy
Topology : Step-Down (Buck) (1) Synchronous or Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (3)
Number of Outputs : 4
Frequency - Switching : 250kHz ~ 2.4MHz
Voltage/Current - Output 1 : 1.25V, 750mA
Voltage/Current - Output 2 : 5V, 250mA
Voltage/Current - Output 3 : 3.3V, 160mA
w/LED Driver : No
w/Supervisor : No
w/Sequencer : Yes
Voltage - Supply : 2.8 V ~ 36 V
Operating Temperature : -40°C ~ 135°C
Mounting Type : Surface Mount
Package / Case : 38-TFSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 38-eTSSOP
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 8V
Voltage - Input (Max) : 50V
Voltage - Output (Min/Fixed) : 0.8V
Voltage - Output (Max) : 24V
Current - Output : 2A
Frequency - Switching : -
Synchronous Rectifier : No
Operating Temperature : -20°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOIC-EP
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Type : Transistor Driver
Function : Step-Up/Step-Down
Output Configuration : Positive
Topology : Buck-Boost
Number of Outputs : 1
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 3 V ~ 36 V
Frequency - Switching : 250kHz ~ 2.2MHz
Duty Cycle (Max) : -
Synchronous Rectifier : No
Clock Sync : Yes
Serial Interfaces : -
Control Features : Enable, Frequency Control, Soft Start
Operating Temperature : -40°C ~ 150°C (TJ)
Package / Case : 20-WFQFN Exposed Pad
Supplier Device Package : 20-QFN (4x4)
0
8242 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive
Part Status : Active
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 28V
Voltage - Output (Min/Fixed) : 5V
Voltage - Output (Max) : -
Voltage Dropout (Max) : -
Current - Output : 50mA
Current - Quiescent (Iq) : 4mA
Current - Supply (Max) : -
PSRR : -
Control Features : Enable, Power Good
Protection Features : Over Current, Over Temperature, Over Voltage, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature : -40°C ~ 150°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-ESOIC
0
2889 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Obsolete
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 3
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 34V
Voltage - Output (Min/Fixed) : 0.8V
Voltage - Output (Max) : 30.6V
Current - Output : -
Frequency - Switching : 550kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-WFQFN Exposed Pad
Supplier Device Package : 20-QFN (4x4)
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 3
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 34V
Voltage - Output (Min/Fixed) : 0.8V
Voltage - Output (Max) : 30.6V
Current - Output : -
Frequency - Switching : 550kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-WFQFN Exposed Pad
Supplier Device Package : 20-QFN (4x4)
0
5420 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 3
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 23V
Voltage - Output (Min/Fixed) : 0.8V
Voltage - Output (Max) : 20.7V
Current - Output : -
Frequency - Switching : 550kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-WFQFN Exposed Pad
Supplier Device Package : 20-QFN (4x4)
0
11085 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 3
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 34V
Voltage - Output (Min/Fixed) : 0.8V
Voltage - Output (Max) : 30.6V
Current - Output : -
Frequency - Switching : 550kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-WFQFN Exposed Pad
Supplier Device Package : 20-QFN (4x4)
0
2352 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : Brushless DC (BLDC)
Function : Controller - Commutation, Direction Management
Output Configuration : Pre-Driver - Half Bridge (3)
Interface : Serial
Technology : CMOS
Step Resolution : -
Applications : Automotive
Current - Output : -
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 5.5 V ~ 50 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-LQFP Exposed Pad
Supplier Device Package : 48-LQFP-EP (7x7)
0
2905 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : Brushless DC (BLDC)
Function : Controller - Commutation, Direction Management
Output Configuration : Pre-Driver - Half Bridge
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : -
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 5 V ~ 50 V
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-VFQFN Exposed Pad
Supplier Device Package : 28-QFN (5x5)
0
3322 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : Brushless DC (BLDC)
Function : Controller - Commutation, Direction Management
Output Configuration : Pre-Driver - Half Bridge
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : -
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 5 V ~ 50 V
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 28-TSSOP-EP
0
5387 in stock

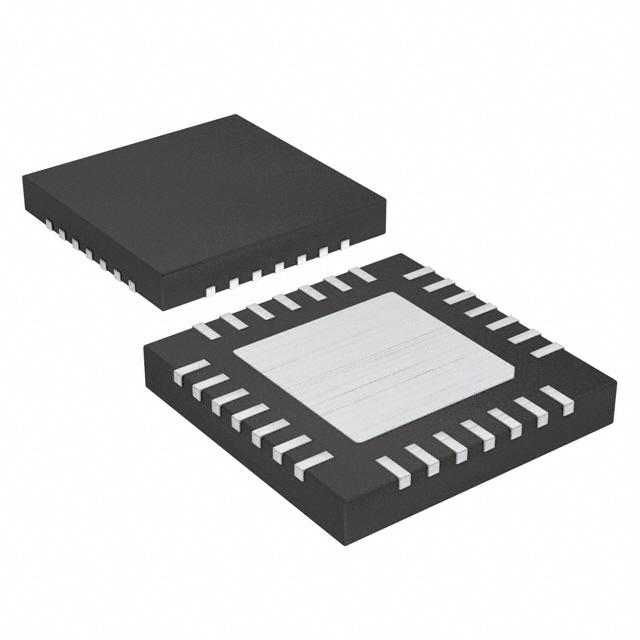

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : High-Side or Low-Side
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : N-Channel MOSFET
Voltage - Supply : 5.5 V ~ 50 V
Logic Voltage - VIL, VIH : 0.8V, 1.5V
Current - Peak Output (Source, Sink) : -
Input Type : TTL
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 35ns, 20ns
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 28-VFQFN Exposed Pad
Supplier Device Package : 28-QFN-EP (5x5)
0
1490 in stock
