Allegro MicroSystems, LLC.
- Allegro MicroSystems, (Allegro) is a leader in developing high-performance power and sensing semiconductors. Allegro's innovative solutions serve high-growth applications within the automotive market, with additional focus on industrial and consumer/computing solutions. Allegro is headquartered in Manchester, New Hampshire (USA) with design, applications, and sales support centers located worldwide.
Part Number
Manufacturer
Description
Unit Price
In Stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Last Time Buy
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (6)
Interface : Parallel
Technology : DMOS
Step Resolution : 1, 1/2, 1/4
Applications : General Purpose
Current - Output : 1.2A, 2.4A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 8 V ~ 36 V
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-VFQFN Exposed Pad
Supplier Device Package : 36-QFN-EP (6x6)
0
100 in stock

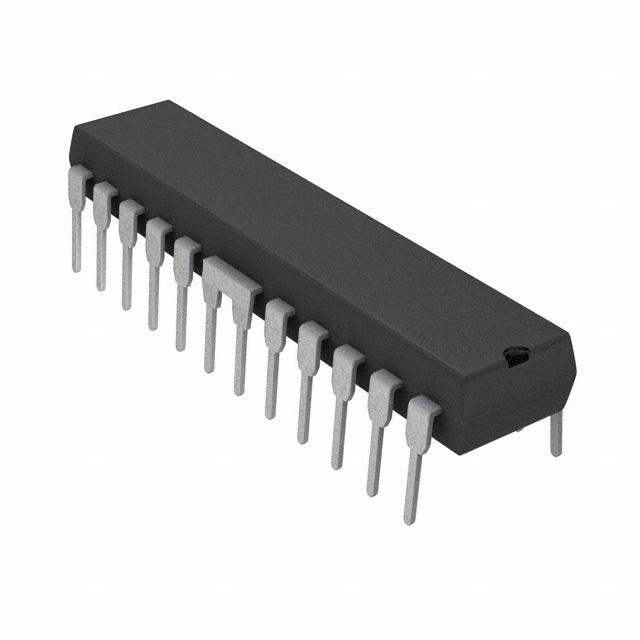

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : -
Part Status : Obsolete
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Serial
Technology : DMOS
Step Resolution : 1 ~ 1/64
Applications : General Purpose
Current - Output : 1.5A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 15 V ~ 50 V
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 24-PowerDIP (0.300", 7.62mm)
Supplier Device Package : 24-DIP
0
100 in stock

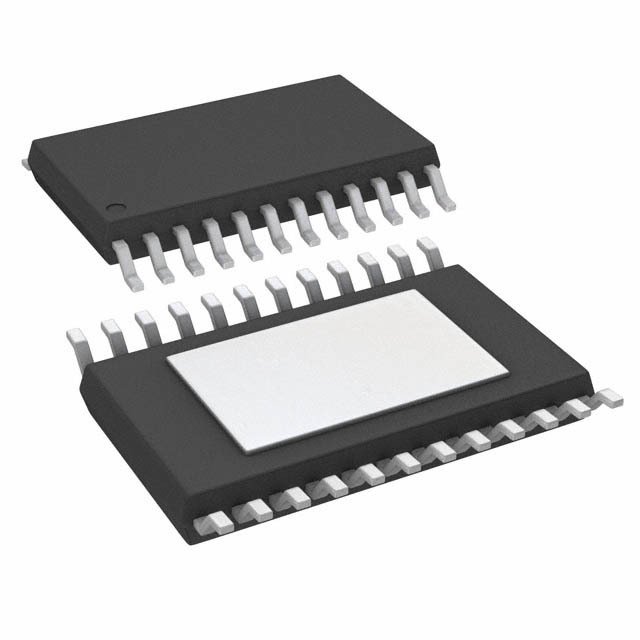

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Serial
Technology : DMOS
Step Resolution : 1 ~ 1/64
Applications : General Purpose
Current - Output : 1.5A
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 15 V ~ 50 V
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 24-TSSOP-EP
0
36653 in stock

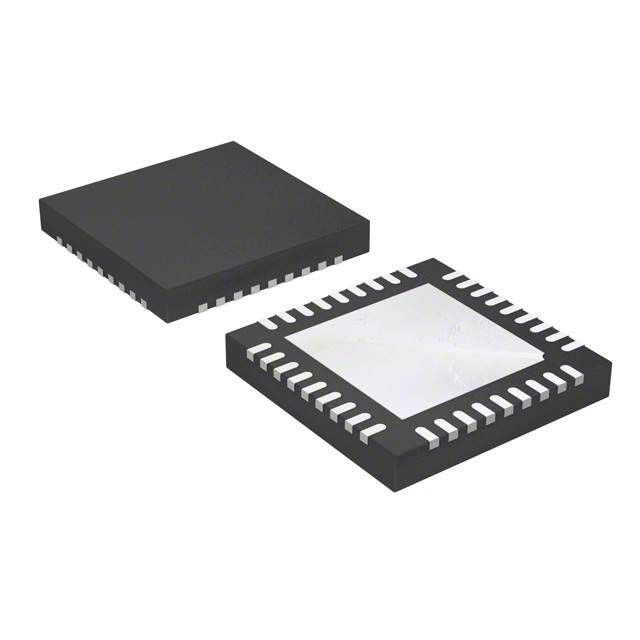

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Last Time Buy
Motor Type - Stepper : -
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Parallel
Technology : DMOS
Step Resolution : -
Applications : General Purpose
Current - Output : 2.4A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 8 V ~ 36 V
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-VFQFN Exposed Pad
Supplier Device Package : 36-QFN-EP (6x6)
0
100 in stock

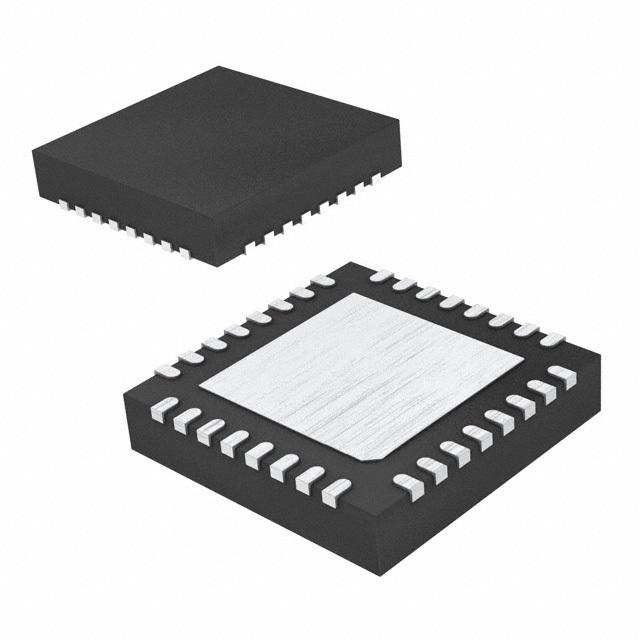

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Serial
Technology : DMOS
Step Resolution : 1, 1/2, 1/4, 1/8
Applications : General Purpose
Current - Output : 1.5A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 9 V ~ 50 V
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 32-VFQFN Exposed Pad
Supplier Device Package : 32-QFN (5x5)
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : -
Part Status : Obsolete
Display Type : Vacuum Fluorescent (VF)
Configuration : -
Interface : -
Digits or Characters : -
Current - Supply : 2.3mA
Voltage - Supply : 7 V ~ 40 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Display Type : Vacuum Fluorescent (VF)
Configuration : -
Interface : -
Digits or Characters : -
Current - Supply : 2.3mA
Voltage - Supply : 7 V ~ 40 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Topology : Step-Down (Buck) (1), Linear (LDO) (1)
Number of Outputs : 2
Frequency - Switching : 2MHz
Voltage/Current - Output 1 : 3.3 V ~ 5 V, 1A
Voltage/Current - Output 2 : 1.8 V ~ 3.3 V, 250mA
Voltage/Current - Output 3 : -
w/LED Driver : No
w/Supervisor : No
w/Sequencer : No
Voltage - Supply : 6 V ~ 50 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 16-TSSOP-EP
0
1360 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Topology : Step-Down (Buck) (1), Linear (LDO) (1)
Number of Outputs : 2
Frequency - Switching : 2MHz
Voltage/Current - Output 1 : 3.3 V ~ 5 V, 1A
Voltage/Current - Output 2 : 1.8 V ~ 3.3 V, 250mA
Voltage/Current - Output 3 : -
w/LED Driver : No
w/Supervisor : No
w/Sequencer : No
Voltage - Supply : 6 V ~ 50 V
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 16-TSSOP-EP
0
6429 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 46V
Voltage - Output (Min/Fixed) : 0.8V
Voltage - Output (Max) : 46V
Current - Output : 3A
Frequency - Switching : 450kHz ~ 2MHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 16-WQFN Exposed Pad
Supplier Device Package : 16-QFN (4x4)
0
27477 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Topology : Step-Down (Buck) (1) Synchronous or Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (3)
Number of Outputs : 3
Frequency - Switching : 250kHz ~ 2.4MHz
Voltage/Current - Output 1 : 5V, 115mA
Voltage/Current - Output 2 : 3.3V, 165mA
Voltage/Current - Output 3 : 5V, 325mA
w/LED Driver : No
w/Supervisor : No
w/Sequencer : Yes
Voltage - Supply : 2.8 V ~ 36 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 38-TFSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 38-eTSSOP
0
3997 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Topology : Step-Down (Buck) (1) or Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (2)
Number of Outputs : 3
Frequency - Switching : 400kHz ~ 2.4MHz
Voltage/Current - Output 1 : 0.8 V ~ 3.3 V, 800mA
Voltage/Current - Output 2 : 6V/6.6V, 1A
Voltage/Current - Output 3 : 5V, 150mA
w/LED Driver : No
w/Supervisor : No
w/Sequencer : Yes
Voltage - Supply : 3 V ~ 36 V
Operating Temperature : -40°C ~ 135°C
Mounting Type : Surface Mount
Package / Case : 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 20-TSSOP-EP
0
100 in stock
