Allegro MicroSystems, LLC.
- Allegro MicroSystems, (Allegro) is a leader in developing high-performance power and sensing semiconductors. Allegro's innovative solutions serve high-growth applications within the automotive market, with additional focus on industrial and consumer/computing solutions. Allegro is headquartered in Manchester, New Hampshire (USA) with design, applications, and sales support centers located worldwide.
Part Number
Manufacturer
Description
Unit Price
In Stock

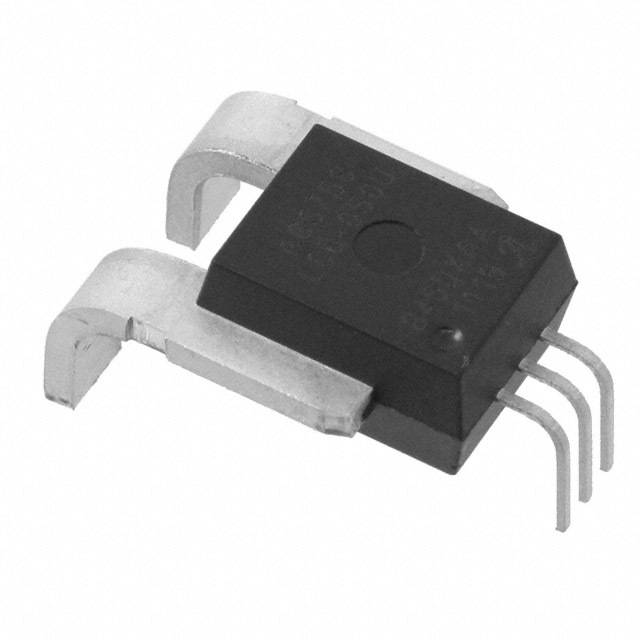

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : Automotive, AEC-Q100
Part Status : Not For New Designs
For Measuring : DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 50A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 60mV/A
Frequency : DC ~ 120kHz
Linearity : ±1%
Accuracy : ±2%
Voltage - Supply : 3 V ~ 5.5 V
Response Time : 4µs
Current - Supply (Max) : 13.5mA
Operating Temperature : -40°C ~ 150°C
Polarization : Unidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
14420 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : Automotive, AEC-Q100
Part Status : Not For New Designs
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 100A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 20mV/A
Frequency : DC ~ 120kHz
Linearity : ±1.25%
Accuracy : ±2.4%
Voltage - Supply : 3 V ~ 5.5 V
Response Time : 4µs
Current - Supply (Max) : 13.5mA
Operating Temperature : -40°C ~ 150°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
15763 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : Automotive, AEC-Q100
Part Status : Not For New Designs
For Measuring : DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 100A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 40mV/A
Frequency : DC ~ 120kHz
Linearity : ±1.25%
Accuracy : ±2.4%
Voltage - Supply : 3 V ~ 5.5 V
Response Time : 4µs
Current - Supply (Max) : 13.5mA
Operating Temperature : -40°C ~ 150°C
Polarization : Unidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
4411 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : -
Part Status : Not For New Designs
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 200A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 8.8mV/A
Frequency : DC ~ 120kHz
Linearity : ±1%
Accuracy : ±4%
Voltage - Supply : 3 V ~ 3.6 V
Response Time : 4µs
Current - Supply (Max) : 13.5mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
4752 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : -
Part Status : Not For New Designs
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 150A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 8.8mV/A
Frequency : DC ~ 120kHz
Linearity : ±1%
Accuracy : ±4%
Voltage - Supply : 3 V ~ 3.6 V
Response Time : 4µs
Current - Supply (Max) : 13.5mA
Operating Temperature : -40°C ~ 125°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
1495 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : -
Part Status : Not For New Designs
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 50A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 26.4mV/A
Frequency : DC ~ 120kHz
Linearity : ±1%
Accuracy : ±3.5%
Voltage - Supply : 3 V ~ 3.6 V
Response Time : 4µs
Current - Supply (Max) : 13.5mA
Operating Temperature : -40°C ~ 150°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
2752 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : -
Part Status : Not For New Designs
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 100A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 13.2mV/A
Frequency : DC ~ 120kHz
Linearity : ±1%
Accuracy : ±4%
Voltage - Supply : 3 V ~ 3.6 V
Response Time : 4µs
Current - Supply (Max) : 13.5mA
Operating Temperature : -40°C ~ 150°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
5406 in stock

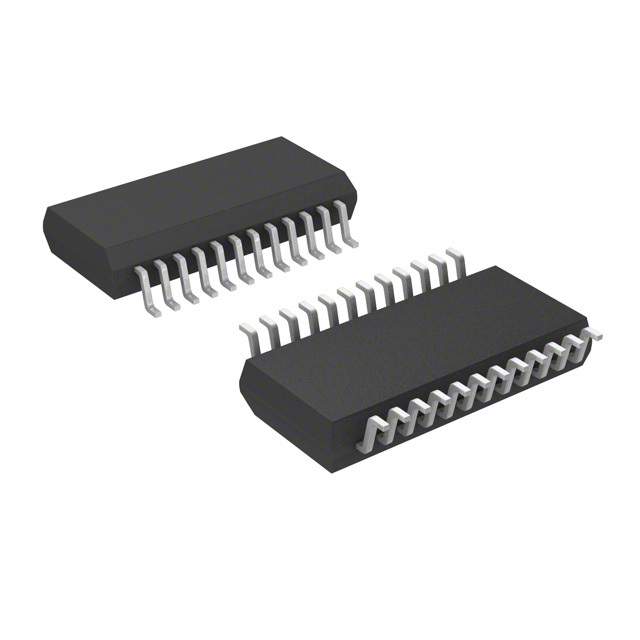

Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
For Measuring : DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 16A
Number of Channels : 1
Output : I²C
Sensitivity : -
Frequency : 2kHz
Linearity : ±0.75%
Accuracy : ±1%
Voltage - Supply : 3 V ~ 3.6 V
Response Time : 100µs
Current - Supply (Max) : 14mA
Operating Temperature : -40°C ~ 125°C
Polarization : Unidirectional
Mounting Type : Surface Mount
Package / Case : 24-SSOP (0.154", 3.90mm Width)
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
For Measuring : DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 32A
Number of Channels : 1
Output : I²C
Sensitivity : -
Frequency : 2kHz
Linearity : ±0.75%
Accuracy : ±1%
Voltage - Supply : 3 V ~ 3.6 V
Response Time : 100µs
Current - Supply (Max) : 14mA
Operating Temperature : -40°C ~ 125°C
Polarization : Unidirectional
Mounting Type : Surface Mount
Package / Case : 24-SSOP (0.154", 3.90mm Width)
0
100 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : ACS770
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 200A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 10mV/A
Frequency : DC ~ 120kHz
Linearity : ±1%
Accuracy : ±0.6%
Voltage - Supply : 5V
Response Time : 4.6µs
Current - Supply (Max) : 15mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
4127 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : ACS770
Part Status : Active
For Measuring : DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 200A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 20mV/A
Frequency : DC ~ 120kHz
Linearity : ±1%
Accuracy : ±0.6%
Voltage - Supply : 5V
Response Time : 4.6µs
Current - Supply (Max) : 15mA
Operating Temperature : -40°C ~ 85°C
Polarization : Unidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
2250 in stock
Allegro MicroSystems, LLC.
Manufacturer : Allegro MicroSystems, LLC
Packaging : Tube
Series : ACS770
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 150A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 13.3mV/A
Frequency : DC ~ 120kHz
Linearity : ±1%
Accuracy : ±0.6%
Voltage - Supply : 5V
Response Time : 4.6µs
Current - Supply (Max) : 15mA
Operating Temperature : -40°C ~ 125°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : 5-CB Formed Leads, PFF
0
3323 in stock
