- Transformers
- Power Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
VPS16-5000-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 63.50mm L x 58.67mm W
Height - Seated (Max) : 76.20mm
Voltage - Isolation : 4000Vrms
Weight : 2.8 lbs (1.3kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 63.50mm L x 58.67mm W
Height - Seated (Max) : 76.20mm
Voltage - Isolation : 4000Vrms
Weight : 2.8 lbs (1.3kg)
0
32 in stock
VPS16-8100
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 16.2A, Series 8.1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 130 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.37mm L x 68.33mm W
Height - Seated (Max) : 85.85mm
Voltage - Isolation : 4000Vrms
Weight : 4.1 lbs (1.9kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 16.2A, Series 8.1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 130 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.37mm L x 68.33mm W
Height - Seated (Max) : 85.85mm
Voltage - Isolation : 4000Vrms
Weight : 4.1 lbs (1.9kg)
0
6 in stock
VPS16-8100-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 16.2A, Series 8.1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 130 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.37mm L x 68.33mm W
Height - Seated (Max) : 85.85mm
Voltage - Isolation : 4000Vrms
Weight : 4.1 lbs (1.9kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 16.2A, Series 8.1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 130 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.37mm L x 68.33mm W
Height - Seated (Max) : 85.85mm
Voltage - Isolation : 4000Vrms
Weight : 4.1 lbs (1.9kg)
0
54 in stock
VPS20-1250
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 50.80mm L x 49.28mm W
Height - Seated (Max) : 58.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.3 lbs (589.7g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 50.80mm L x 49.28mm W
Height - Seated (Max) : 58.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.3 lbs (589.7g)
0
118 in stock
VPS20-1250-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 50.80mm L x 49.28mm W
Height - Seated (Max) : 58.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.3 lbs (589.7g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 50.80mm L x 49.28mm W
Height - Seated (Max) : 58.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.3 lbs (589.7g)
0
24 in stock

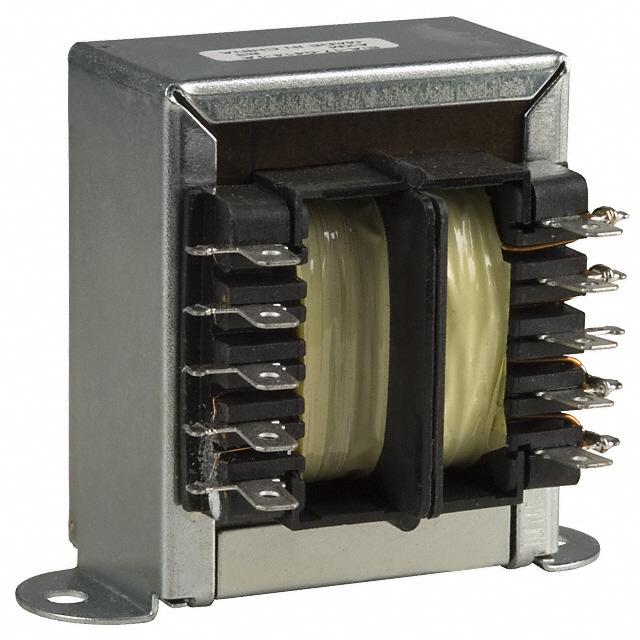

VPS20-2200
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 4.4A, Series 2.2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 43 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 74.68mm L x 50.80mm W
Height - Seated (Max) : 74.68mm
Voltage - Isolation : 4000Vrms
Weight : 1.6 lbs (725.7g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 4.4A, Series 2.2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 43 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 74.68mm L x 50.80mm W
Height - Seated (Max) : 74.68mm
Voltage - Isolation : 4000Vrms
Weight : 1.6 lbs (725.7g)
0
8 in stock
VPS20-4000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 63.50mm L x 74.68mm W
Height - Seated (Max) : 76.20mm
Voltage - Isolation : 4000Vrms
Weight : 2.8 lbs (1.3kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 63.50mm L x 74.68mm W
Height - Seated (Max) : 76.20mm
Voltage - Isolation : 4000Vrms
Weight : 2.8 lbs (1.3kg)
0
93 in stock
VPS20-4000-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 63.50mm L x 74.68mm W
Height - Seated (Max) : 76.20mm
Voltage - Isolation : 4000Vrms
Weight : 2.8 lbs (1.3kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 63.50mm L x 74.68mm W
Height - Seated (Max) : 76.20mm
Voltage - Isolation : 4000Vrms
Weight : 2.8 lbs (1.3kg)
0
8 in stock

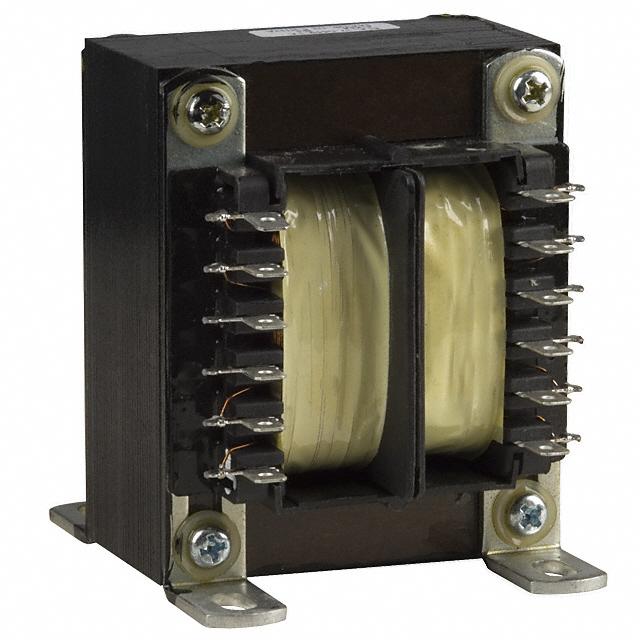

VPS20-6500
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 13A, Series 6.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 130 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.37mm L x 68.33mm W
Height - Seated (Max) : 85.85mm
Voltage - Isolation : 4000Vrms
Weight : 4.1 lbs (1.9kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 13A, Series 6.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 130 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.37mm L x 68.33mm W
Height - Seated (Max) : 85.85mm
Voltage - Isolation : 4000Vrms
Weight : 4.1 lbs (1.9kg)
0
6 in stock
VPS20-6500-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 13A, Series 6.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 130 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.37mm L x 68.33mm W
Height - Seated (Max) : 85.85mm
Voltage - Isolation : 4000Vrms
Weight : 4.1 lbs (1.9kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 13A, Series 6.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 130 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.37mm L x 68.33mm W
Height - Seated (Max) : 85.85mm
Voltage - Isolation : 4000Vrms
Weight : 4.1 lbs (1.9kg)
0
168 in stock
VPS20-8800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 17.6A, Series 8.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 175 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 79.50mm L x 71.37mm W
Height - Seated (Max) : 95.25mm
Voltage - Isolation : 4000Vrms
Weight : 5.5 lbs (2.5kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 17.6A, Series 8.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 175 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 79.50mm L x 71.37mm W
Height - Seated (Max) : 95.25mm
Voltage - Isolation : 4000Vrms
Weight : 5.5 lbs (2.5kg)
0
27 in stock
VPS20-8800-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 17.6A, Series 8.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 175 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 79.50mm L x 71.37mm W
Height - Seated (Max) : 95.25mm
Voltage - Isolation : 4000Vrms
Weight : 5.5 lbs (2.5kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 17.6A, Series 8.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 175 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 79.50mm L x 71.37mm W
Height - Seated (Max) : 95.25mm
Voltage - Isolation : 4000Vrms
Weight : 5.5 lbs (2.5kg)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
