- Optoelectronics
- Infrared, UV, Visible Emitters
Part Number
Manufacturer
Description
Unit Price
In Stock
ASDL-4560-C22
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 2mW/sr @ 50mA
Wavelength : 875nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 2mW/sr @ 50mA
Wavelength : 875nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
0
100 in stock
ASDL-4561-C22
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 60mA
Radiant Intensity (Ie) Min @ If : 1.64mW/sr @ 50mA
Wavelength : 870nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 60mA
Radiant Intensity (Ie) Min @ If : 1.64mW/sr @ 50mA
Wavelength : 870nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
0
100 in stock
ASDL-4860-C22
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 500mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 500mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Leads
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 500mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 500mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Leads
0
100 in stock
ATDS3534UV365B
Kingbright
Manufacturer : Kingbright
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 500mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 365nm
Voltage - Forward (Vf) (Typ) : 3.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 500mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 365nm
Voltage - Forward (Vf) (Typ) : 3.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
188 in stock
ATDS3534UV395B
Kingbright
Manufacturer : Kingbright
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 700mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 395nm
Voltage - Forward (Vf) (Typ) : 3.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 700mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 395nm
Voltage - Forward (Vf) (Typ) : 3.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
200 in stock
ATDS3534UV405B
Kingbright
Manufacturer : Kingbright
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 700mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 405nm
Voltage - Forward (Vf) (Typ) : 3.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 700mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 405nm
Voltage - Forward (Vf) (Typ) : 3.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
144 in stock
ATS2012UV365
Kingbright
Manufacturer : Kingbright
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 365nm
Voltage - Forward (Vf) (Typ) : 3.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 365nm
Voltage - Forward (Vf) (Typ) : 3.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
0
89 in stock

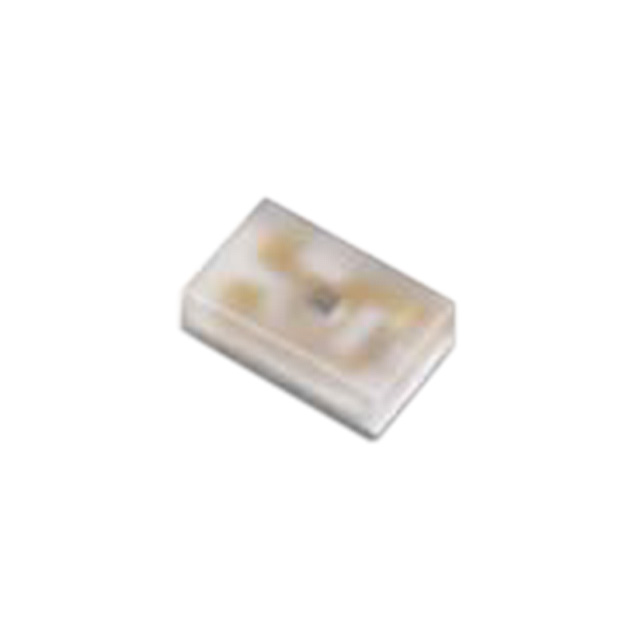

ATS2012UV385
Kingbright
Manufacturer : Kingbright
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 385nm
Voltage - Forward (Vf) (Typ) : 3.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 385nm
Voltage - Forward (Vf) (Typ) : 3.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
0
60 in stock
ATS2012UV395
Kingbright
Manufacturer : Kingbright
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 395nm
Voltage - Forward (Vf) (Typ) : 3.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 395nm
Voltage - Forward (Vf) (Typ) : 3.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
0
196 in stock
ATS2012UV415
Kingbright
Manufacturer : Kingbright
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 415nm
Voltage - Forward (Vf) (Typ) : 3.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 30mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 415nm
Voltage - Forward (Vf) (Typ) : 3.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
0
196 in stock
BXIR-85090AA-0800
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1.5A
Radiant Intensity (Ie) Min @ If : 310mW/sr @ 1A
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.9V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1.5A
Radiant Intensity (Ie) Min @ If : 310mW/sr @ 1A
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.9V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
0
100 in stock

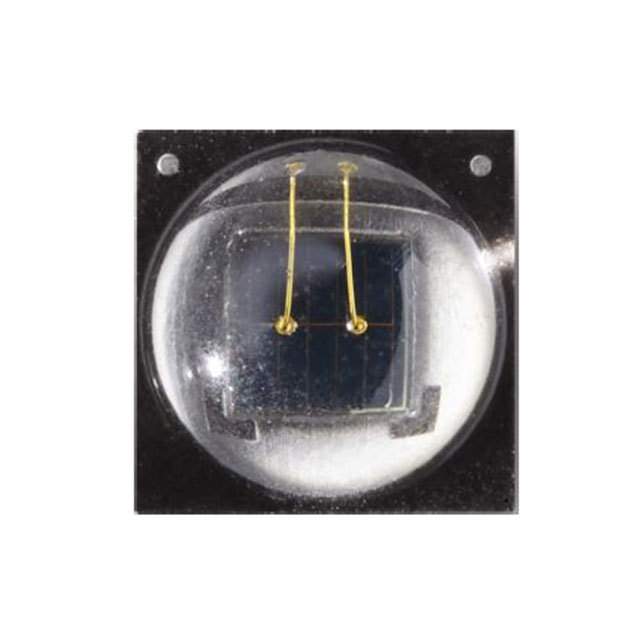

BXIR-85090AA-0900
Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1.5A
Radiant Intensity (Ie) Min @ If : 310mW/sr @ 1A
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.9V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 1.5A
Radiant Intensity (Ie) Min @ If : 310mW/sr @ 1A
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.9V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
0
100 in stock
