Infrared, UV, Visible Emitters Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

TSAL6100

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 80mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.35V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)

26841 in stock

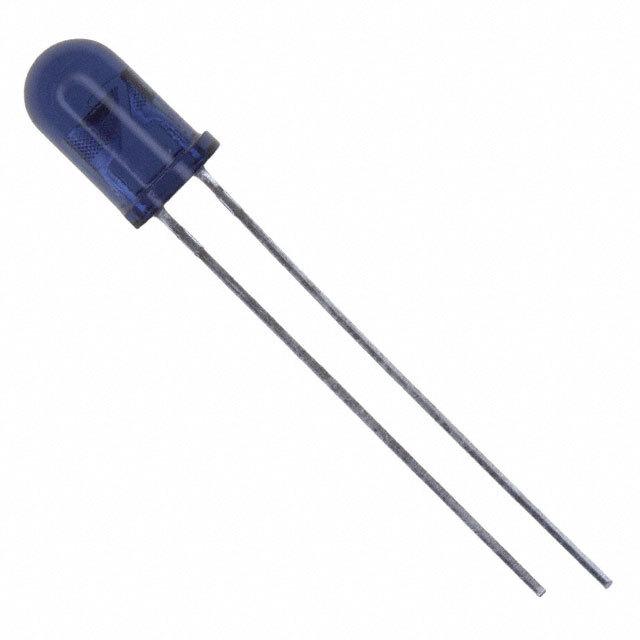

TSAL6200

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.35V
Viewing Angle : 34°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)

11981 in stock

TSAL6400

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 25mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.35V
Viewing Angle : 50°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)

37472 in stock

TSAL7200

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.35V
Viewing Angle : 34°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

100 in stock

TSAL7300

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 30mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.35V
Viewing Angle : 44°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

100 in stock

TSAL7400

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 25mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.35V
Viewing Angle : 50°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

100 in stock

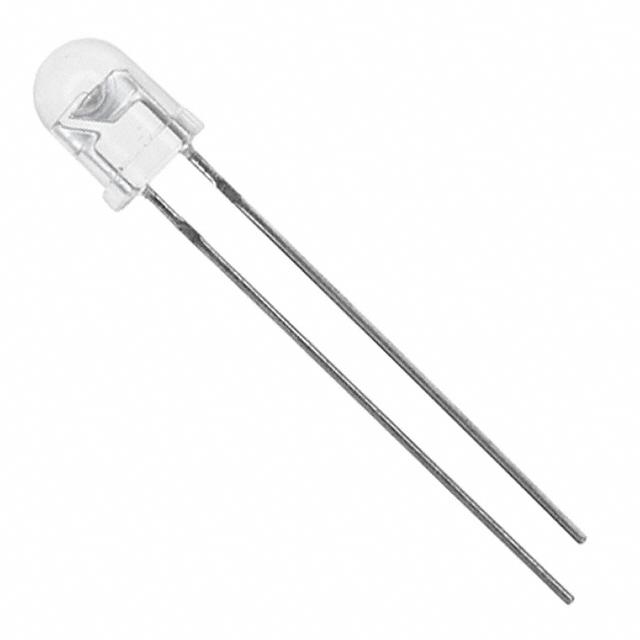

TSAL7600

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 15mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.35V
Viewing Angle : 60°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)

100 in stock

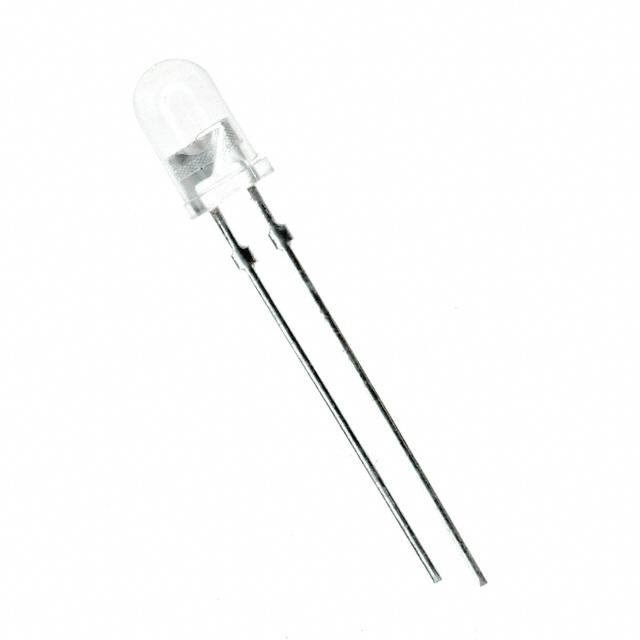

TSFF5210

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 120mW/sr @ 100mA
Wavelength : 870nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)

2107 in stock

TSFF5210-CS12

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 120mW/sr @ 100mA
Wavelength : 870nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

5757 in stock

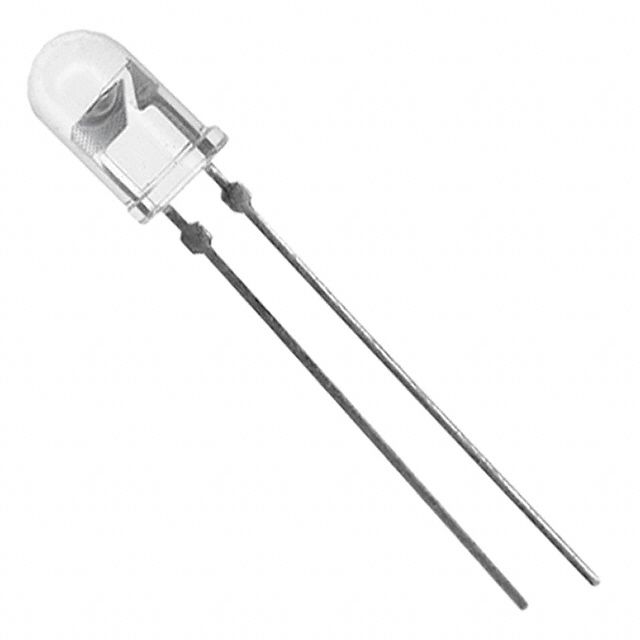

TSFF5410

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 45mW/sr @ 100mA
Wavelength : 870nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 44°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)

100 in stock

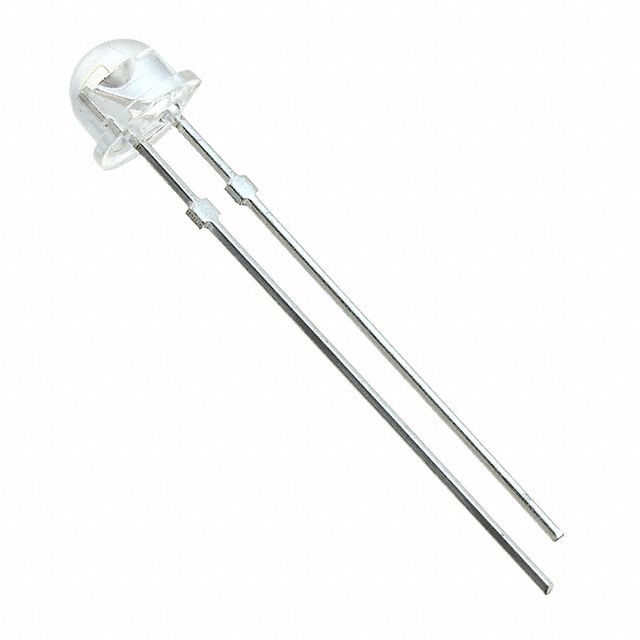

TSFF5510

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 16mW/sr @ 100mA
Wavelength : 870nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 76°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

8663 in stock

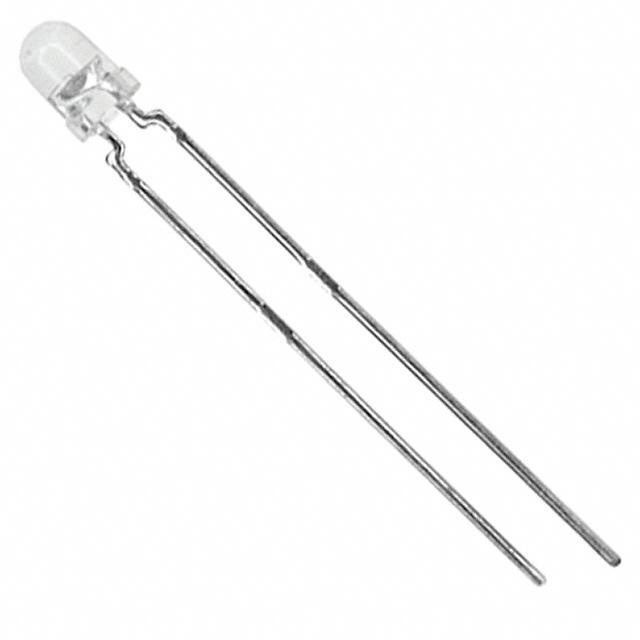

TSHA4400

Vishay / Semiconductor - Opto Division

Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 12mW/sr @ 100mA
Wavelength : 875nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 40°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 3mm Dia (T-1)

6320 in stock
