- Optoelectronics
- Infrared, UV, Visible Emitters
Part Number
Manufacturer
Description
Unit Price
In Stock

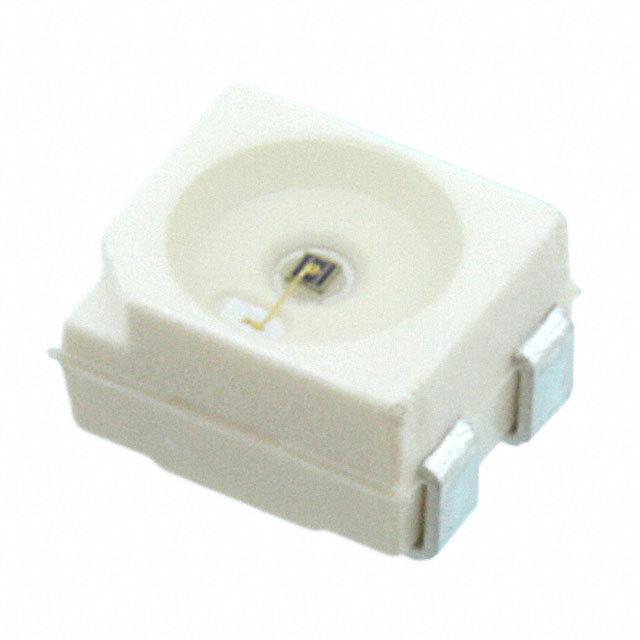

SFH 4250S-S
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : Power TOPLED®
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 16mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 3.1V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-PLCC
Packaging : -
Series : Power TOPLED®
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 16mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 3.1V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-PLCC
0
100 in stock

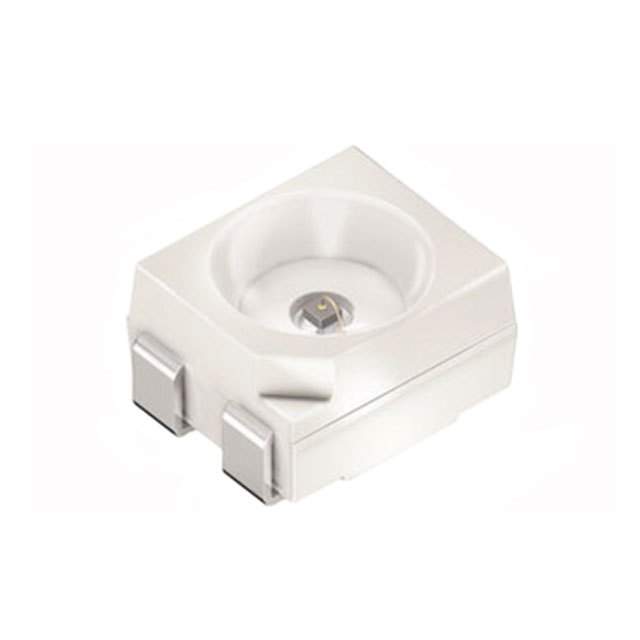

SFH 4250-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Power TOPLED®
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 20mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-PLCC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Power TOPLED®
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 20mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-PLCC
0
86441 in stock

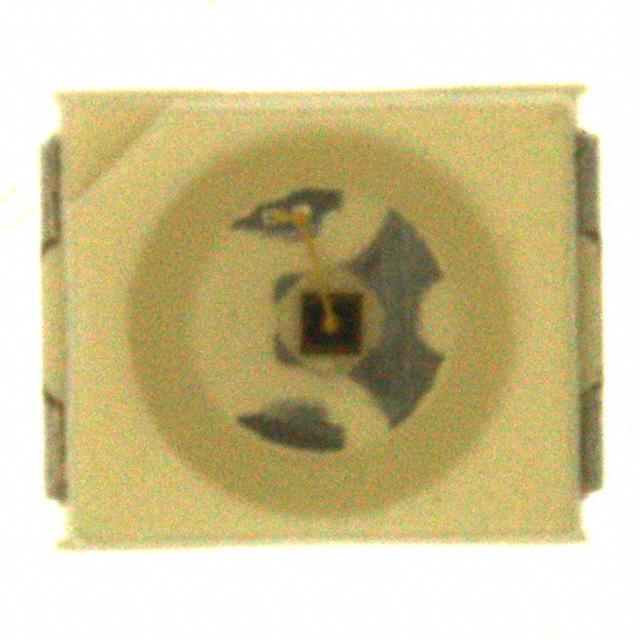

SFH 4252-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 10mW/sr @ 100mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-LCC (J-Lead)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 10mW/sr @ 100mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-LCC (J-Lead)
0
100 in stock
SFH 4253-R
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Power TOPLED®
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 13mW/sr @ 70mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 60°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Power TOPLED®
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 13mW/sr @ 70mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 60°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
0
3995 in stock

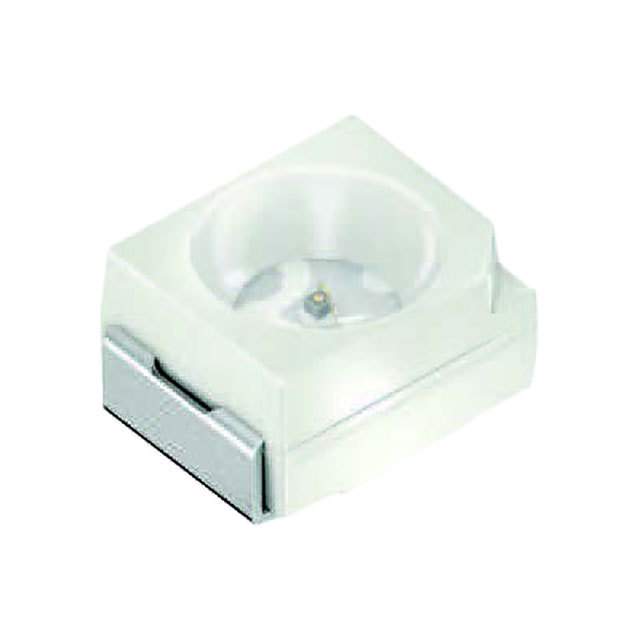

SFH 4253-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TOPLED
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 6.3mW/sr @ 70mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 3.20mm L x 2.80mm W x 1.90mm H
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TOPLED
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 6.3mW/sr @ 70mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 3.20mm L x 2.80mm W x 1.90mm H
0
62515 in stock
SFH 4254
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 4mW/sr @ 50mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 120°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 4mW/sr @ 50mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 120°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD
0
100 in stock

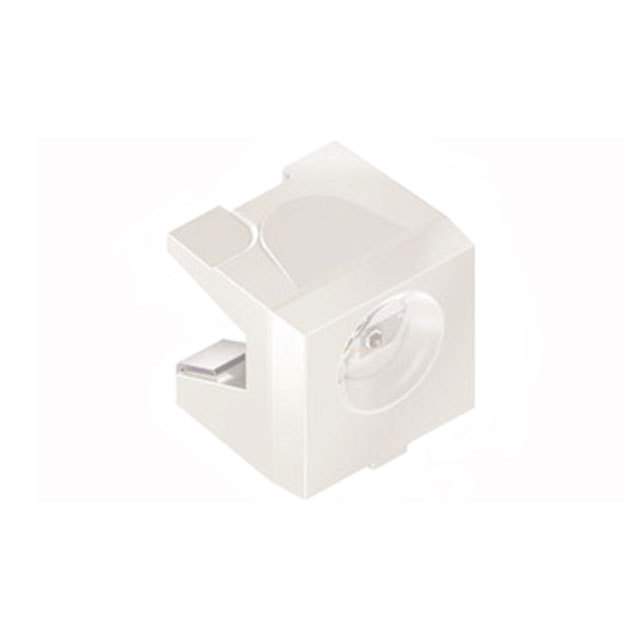

SFH 4255-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SIDELED
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 20mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 120°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Boomerang
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SIDELED
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 20mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 120°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Boomerang
0
23588 in stock
SFH 4256
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 6.3mW/sr @ 70mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 2.4V
Viewing Angle : 120°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount, Right Angle
Package / Case : 2-SMD, J-Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 6.3mW/sr @ 70mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 2.4V
Viewing Angle : 120°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount, Right Angle
Package / Case : 2-SMD, J-Lead
0
3967 in stock
SFH 4256-R
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Power TOPLED®
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 10mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Boomerang
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Power TOPLED®
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 10mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Boomerang
0
4000 in stock
SFH 4258
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 50mW/sr @ 100mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-LCC (J-Lead)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 50mW/sr @ 100mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-LCC (J-Lead)
0
100 in stock
SFH 4258S
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 70mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 3V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-PLCC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 70mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 3V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-PLCC
0
3875 in stock

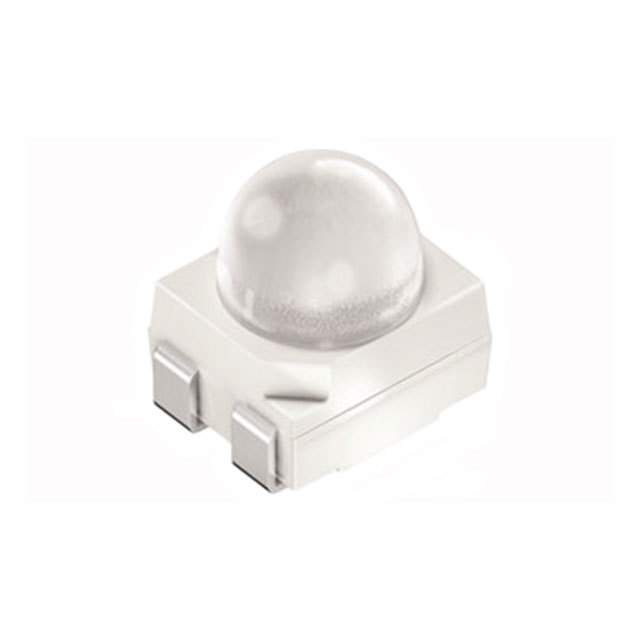

SFH 4258-Z
OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Power TOPLED®
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 110mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-PLCC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Power TOPLED®
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 110mW/sr @ 100mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-PLCC
0
305 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
