Part Number

Manufacturer

Description

Unit Price

In Stock

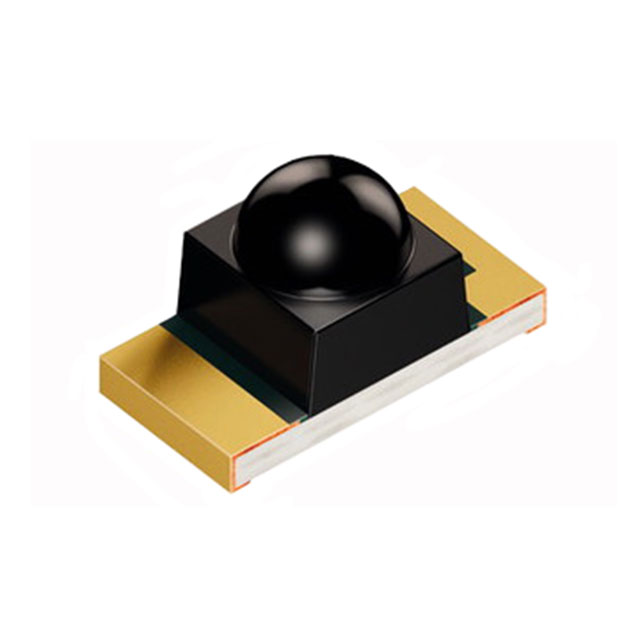

SFH 4059-QS

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CHIPLED
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 100mW/sr @ 70mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)

27843 in stock

SFH 4059S

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 50mW/sr @ 50mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 3.45V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)

6286 in stock

SFH 4059S E9576

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 2.95V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)

100 in stock

SFH 4059-Z

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 70mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 70mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)

100 in stock

SFH 4080-Z

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 1mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 160°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Flat Lead

100 in stock

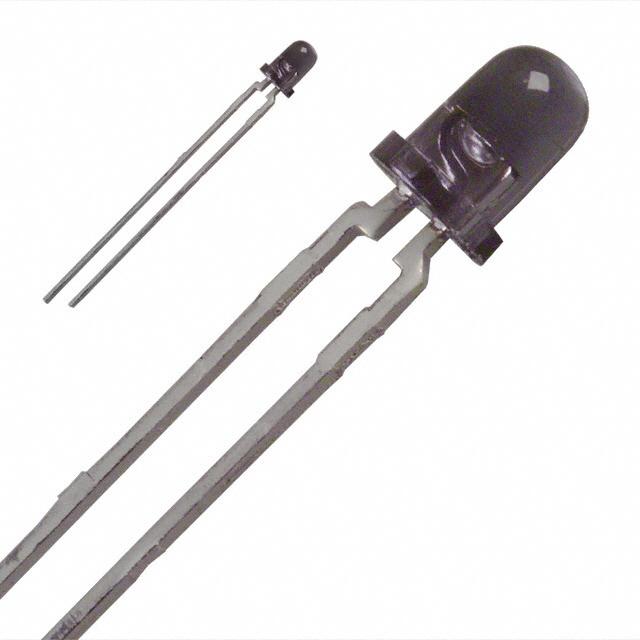

SFH 409

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 6.3mW/sr @ 100mA
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 40°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : T-1

100 in stock

SFH 409-2

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 10mW/sr @ 100mA
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 40°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

100 in stock

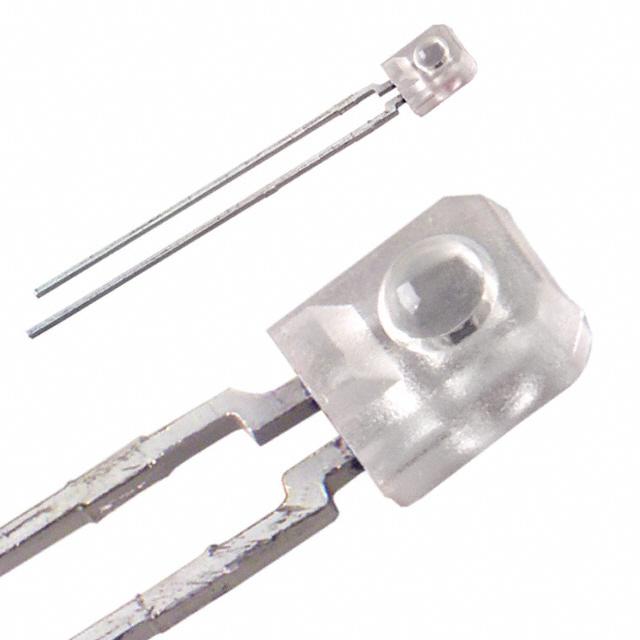

SFH 4110

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 60mA
Radiant Intensity (Ie) Min @ If : 2.5mW/sr @ 20mA
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 18°
Orientation : Side View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Mini

100 in stock

SFH 4111

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.25V
Viewing Angle : 60°/120°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

SFH 4113

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.25V
Viewing Angle : 66°/86°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

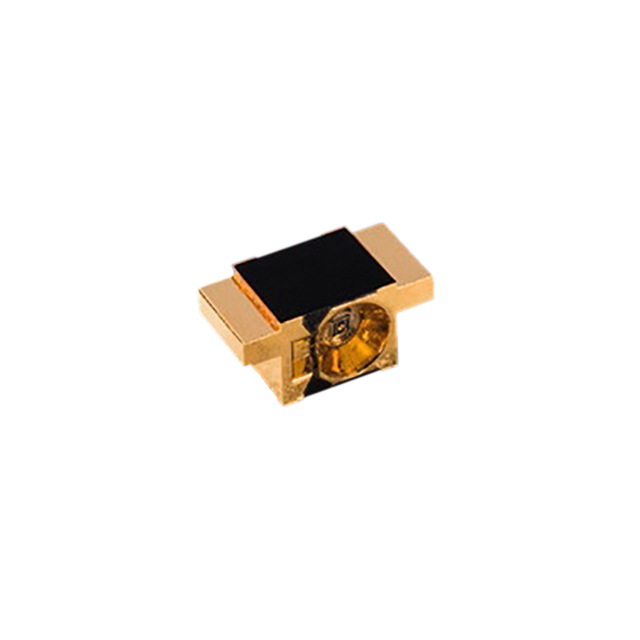

SFH 4140

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 25mW/sr @ 100mA
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount, Right Angle
Package / Case : 2-SMD, No Lead

100 in stock

SFH 4140-U E9591

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : -
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount, Right Angle
Package / Case : 2-SMD, No Lead

100 in stock
