- Optoelectronics
- Infrared, UV, Visible Emitters
Part Number
Manufacturer
Description
Unit Price
In Stock

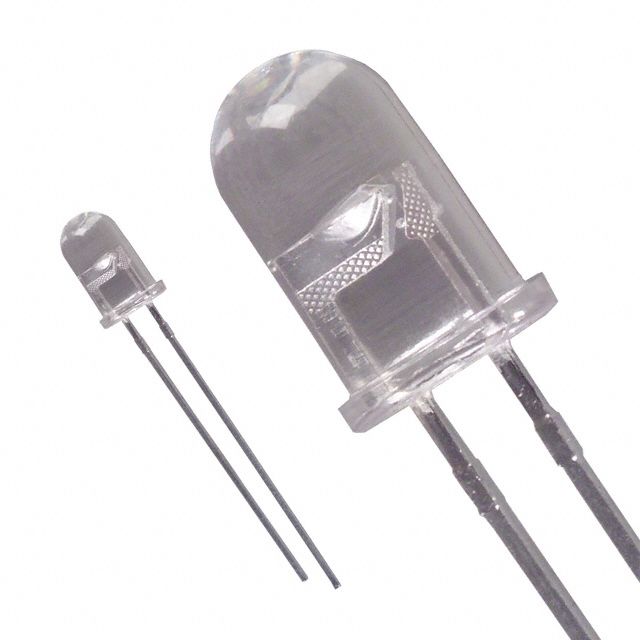

QED234
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 27mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 27mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)
0
99500 in stock
QED234A4R0
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 27mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 27mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)
0
100 in stock
QED422
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 10mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2
Packaging : -
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 10mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2
0
100 in stock

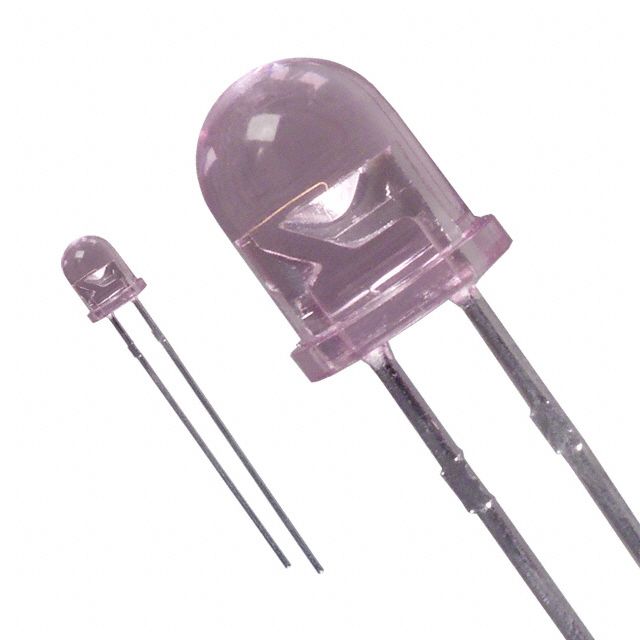

QED423
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 20mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2
Packaging : -
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 20mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2
0
100 in stock

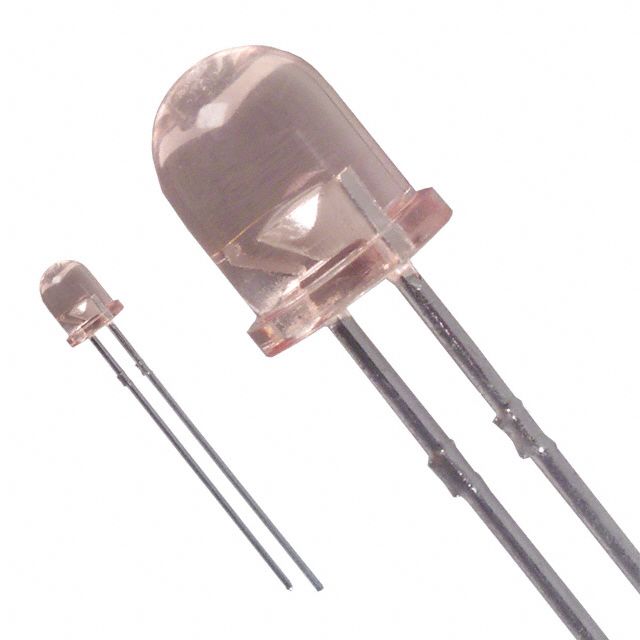

QED522
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 20mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2
Packaging : -
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 20mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2
0
100 in stock
QED523
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2
Packaging : -
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.8V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2
0
100 in stock
QEE113
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 3mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 3mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
0
13174 in stock

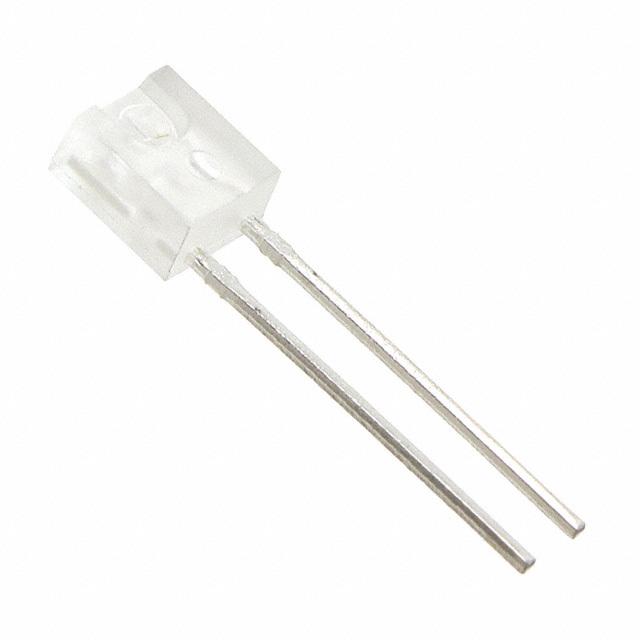

QEE113E3R0
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 3mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 3mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
0
1960 in stock

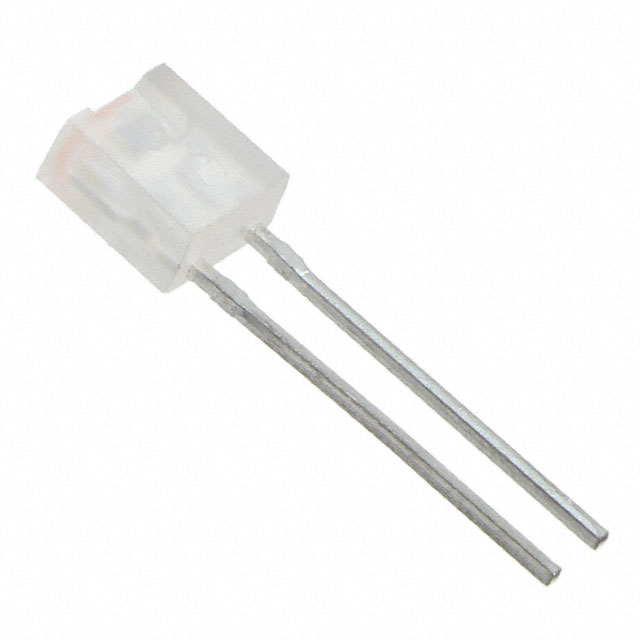

QEE122
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 4mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.7V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 4mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.7V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
0
730 in stock

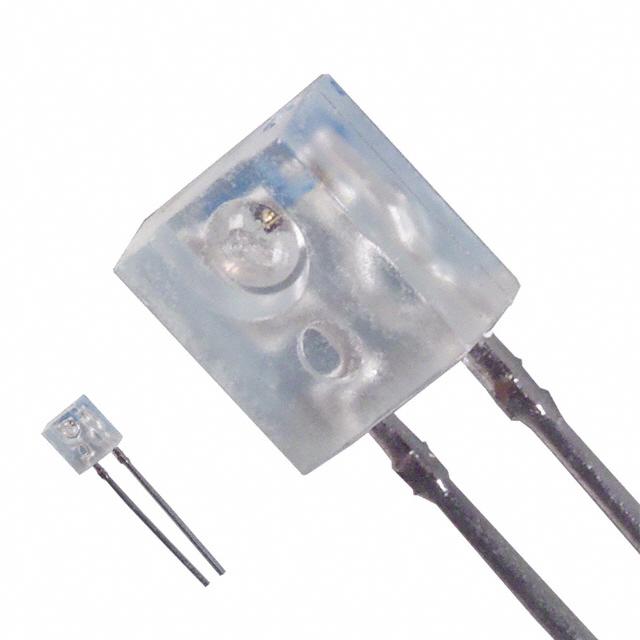

QEE123
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 8mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.7V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 8mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.7V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
0
3637 in stock
QEE123E3R0
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 8mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.7V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 8mW/sr @ 100mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.7V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
0
100 in stock
QEE213
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 2mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 2mW/sr @ 100mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 50°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, Side View
0
100 in stock
