Part Number
Manufacturer
Description
Unit Price
In Stock

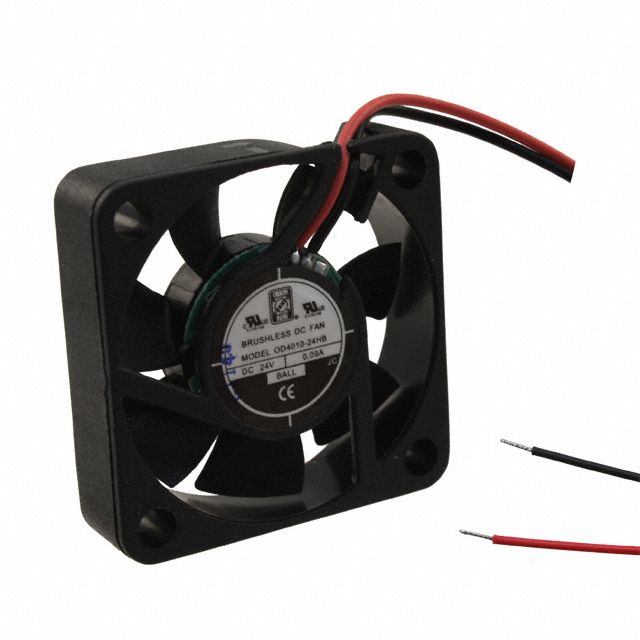

OD4010-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
5689 in stock

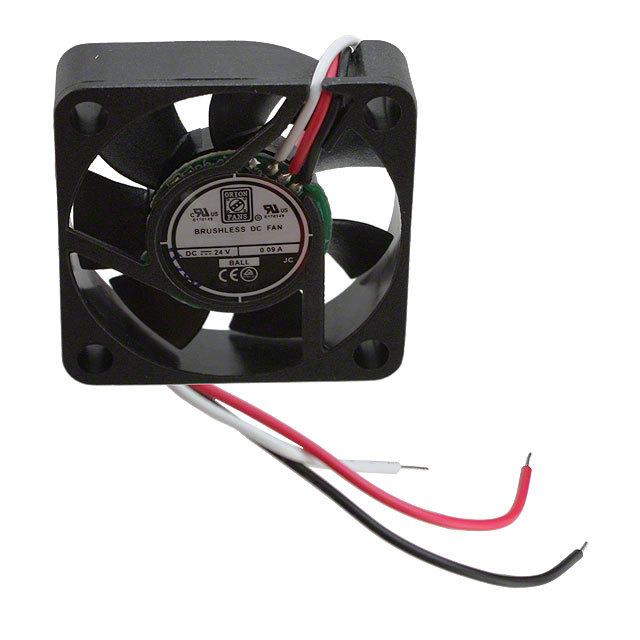

OD4010-24HB01A
Orion Fans
Manufacturer : Orion Fans
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 25.0 dB
Power (Watts) : -
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 25.0 dB
Power (Watts) : -
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
2772 in stock

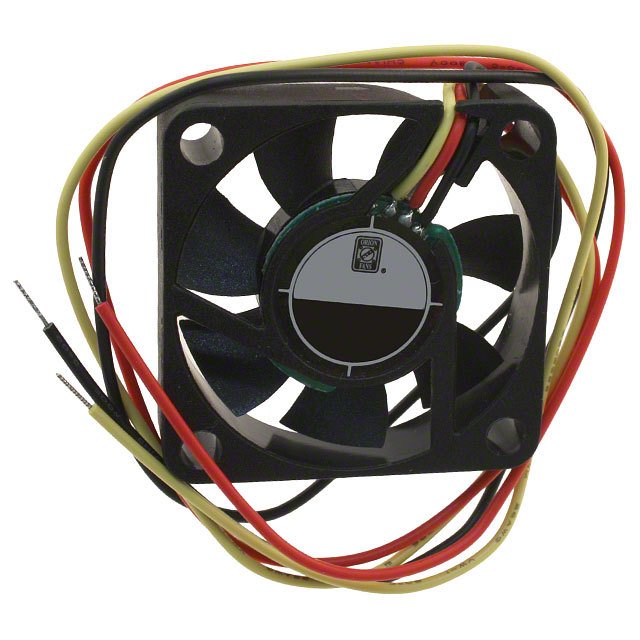

OD4010-24HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 25.0 dB
Power (Watts) : -
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 25.0 dB
Power (Watts) : -
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
1521 in stock

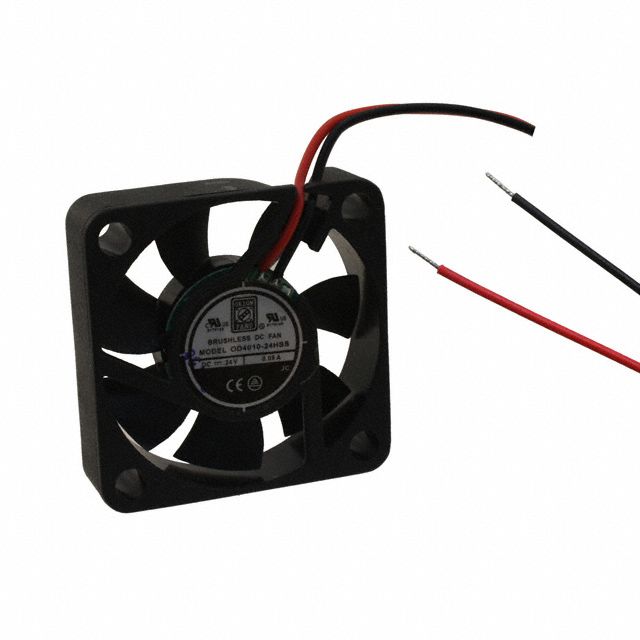

OD4010-24HSS
Orion Fans
Manufacturer : Orion Fans
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 6.7 CFM (0.188m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 6.7 CFM (0.188m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
5100 in stock

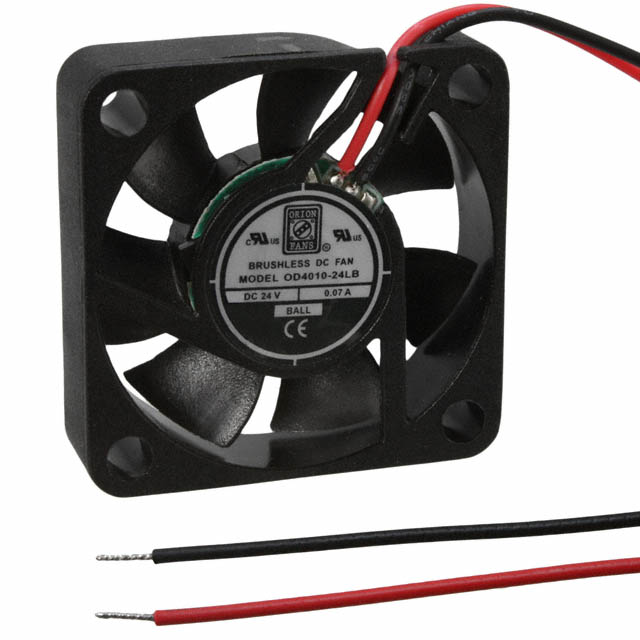

OD4010-24LB
Orion Fans
Manufacturer : Orion Fans
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 14.0 dB
Power (Watts) : -
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 14.0 dB
Power (Watts) : -
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
2488 in stock

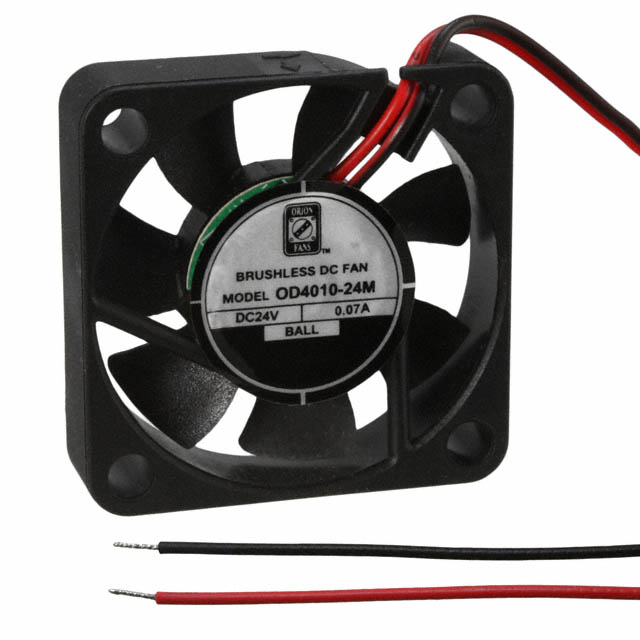

OD4010-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 20.0 dB
Power (Watts) : -
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.50mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 20.0 dB
Power (Watts) : -
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
878 in stock

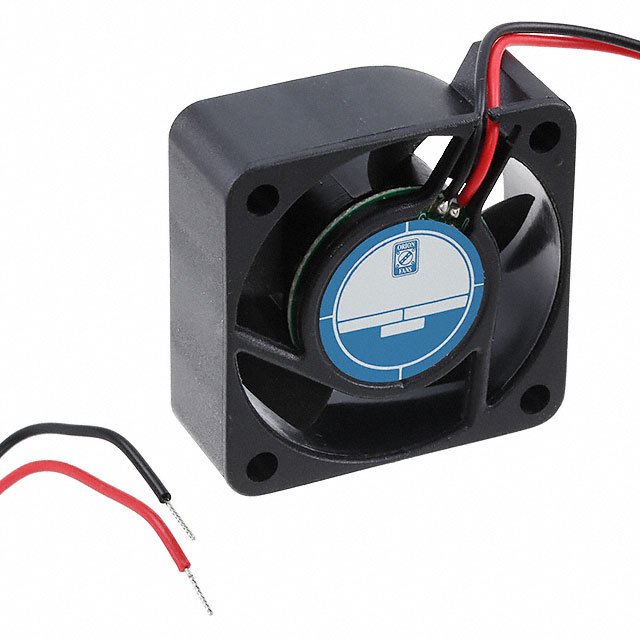

OD4015-05HB
Orion Fans
Manufacturer : Orion Fans
Series : OD4015
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 1.50W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
Series : OD4015
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 1.50W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
0
43 in stock
OD4015-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 1.80W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
Series : OD4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 1.80W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
0
171 in stock

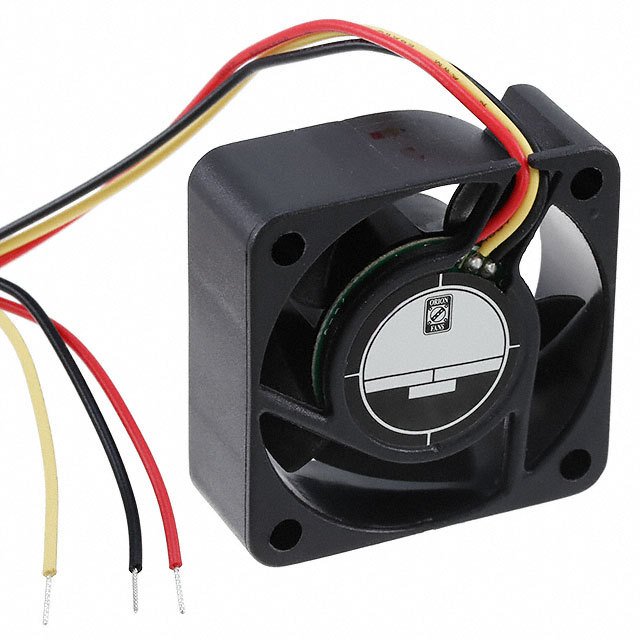

OD4015-12HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 36.0 dB
Power (Watts) : 1.80W
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
Series : OD4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 36.0 dB
Power (Watts) : 1.80W
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
0
141 in stock
OD4015-12LB
Orion Fans
Manufacturer : Orion Fans
Series : OD4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 6.8 CFM (0.190m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB
Power (Watts) : 1.20W
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
Series : OD4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 6.8 CFM (0.190m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB
Power (Watts) : 1.20W
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
0
398 in stock
OD4015-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.1 CFM (0.227m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 1.44W
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : -
Series : OD4015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.1 CFM (0.227m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 1.44W
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : -
0
32 in stock
OD4015-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD4015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 1.92W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
Series : OD4015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 8.5 CFM (0.238m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 1.92W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.053 lb (24.04g)
0
171 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
