- Connectors, Interconnects
- Terminal Blocks - Wire to Board
Part Number
Manufacturer
Description
Unit Price
In Stock
AST0250504
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 5
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 13A
Voltage : 300V
Wire Gauge : 14-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 5
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 13A
Voltage : 300V
Wire Gauge : 14-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
300 in stock

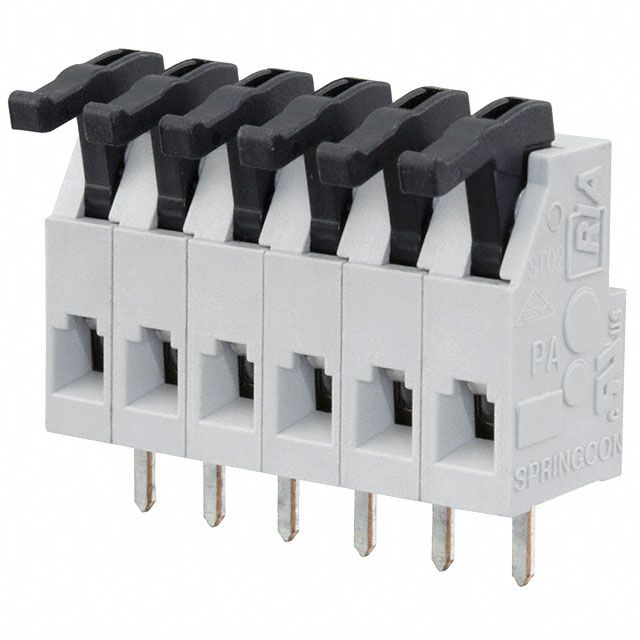

AST0250604
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 6
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 13A
Voltage : 300V
Wire Gauge : 14-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 6
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 13A
Voltage : 300V
Wire Gauge : 14-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
37 in stock
AST0250804
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 8
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 13A
Voltage : 300V
Wire Gauge : 14-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 8
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 13A
Voltage : 300V
Wire Gauge : 14-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
146 in stock
AST0410204
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 2
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 2
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
248 in stock

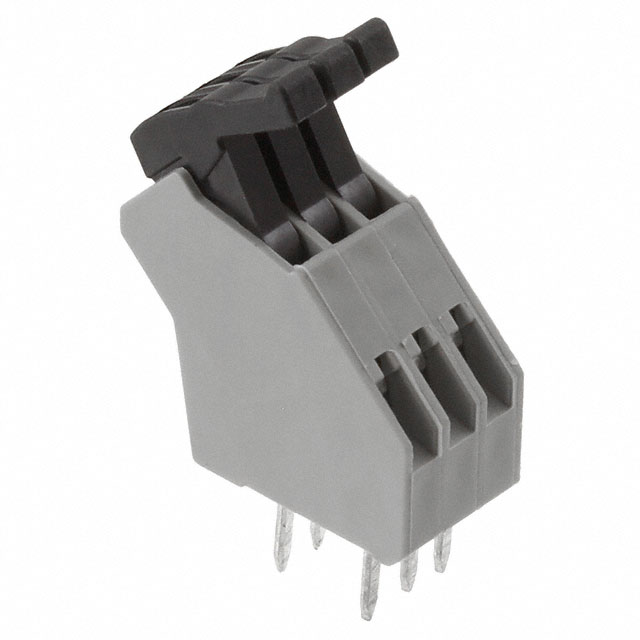

AST0410304
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 3
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 3
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
392 in stock

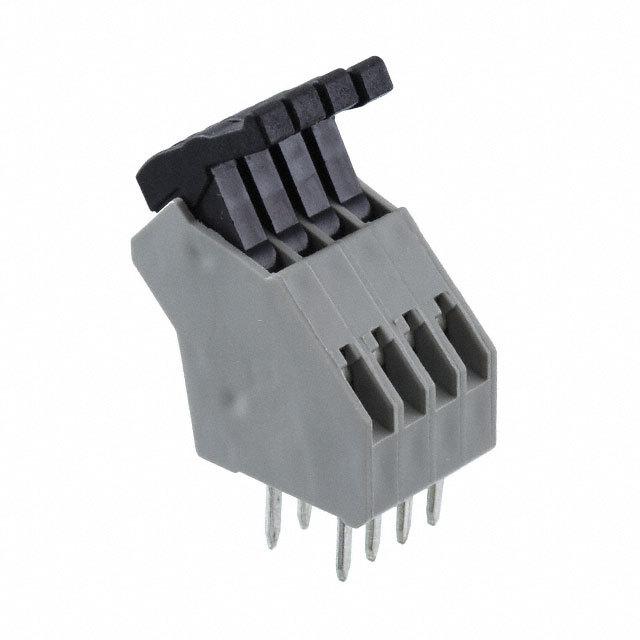

AST0410404
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 4
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 4
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
865 in stock
AST0410504
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 5
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 5
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
300 in stock

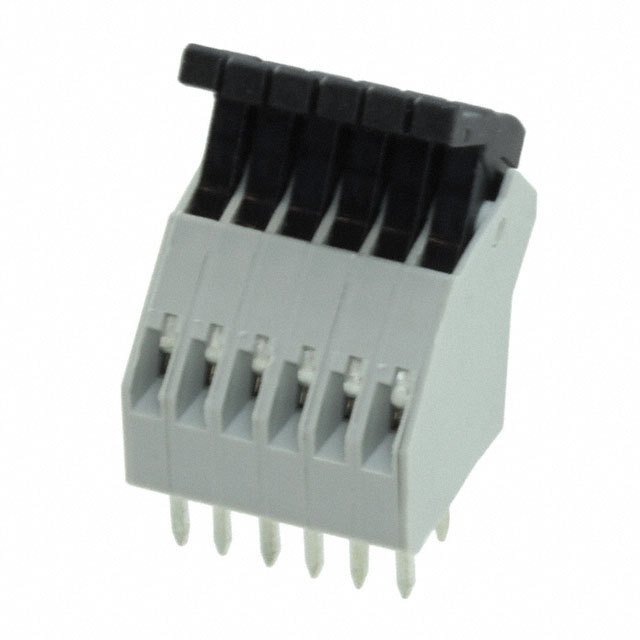

AST0410604
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 6
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 6
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
406 in stock
AST0410804
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 8
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 8
Pitch : 0.098" (2.50mm)
Mating Orientation : 45° (135°) Angle with Board
Current : 8A
Voltage : 150V
Wire Gauge : 18-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Gray
0
65 in stock

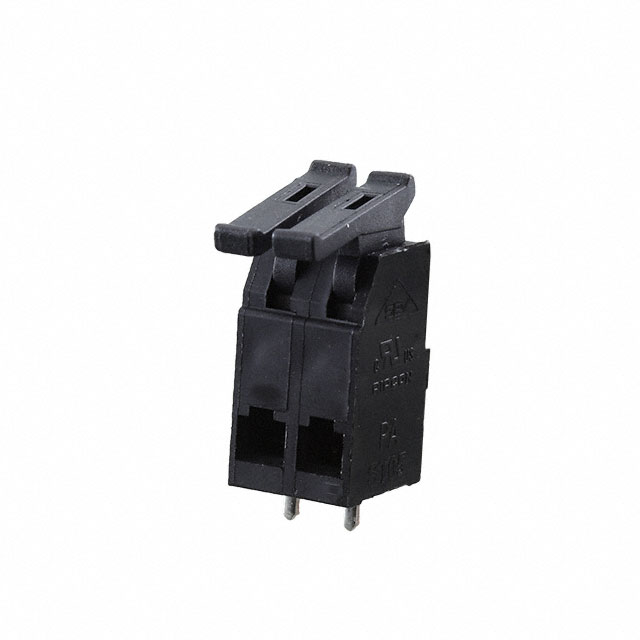

AST0550202
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 2
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 12A
Voltage : 300V
Wire Gauge : 12-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Black
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 2
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 12A
Voltage : 300V
Wire Gauge : 12-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Black
0
472 in stock

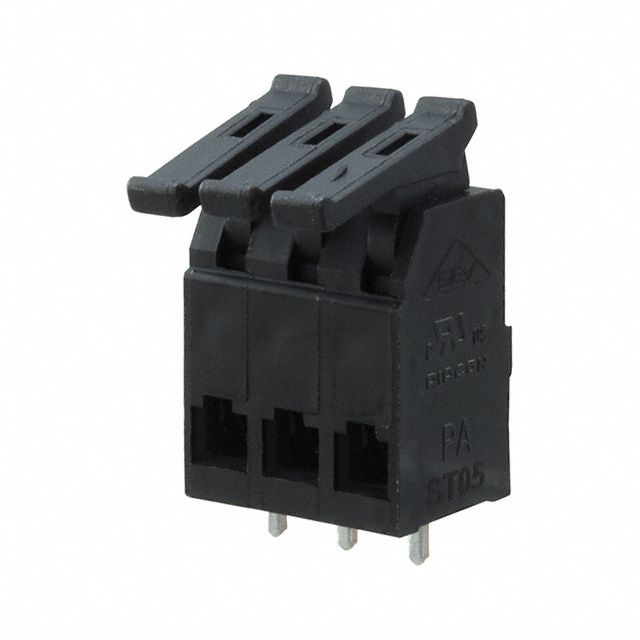

AST0550302
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 3
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 12A
Voltage : 300V
Wire Gauge : 12-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Black
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 3
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 12A
Voltage : 300V
Wire Gauge : 12-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Black
0
244 in stock

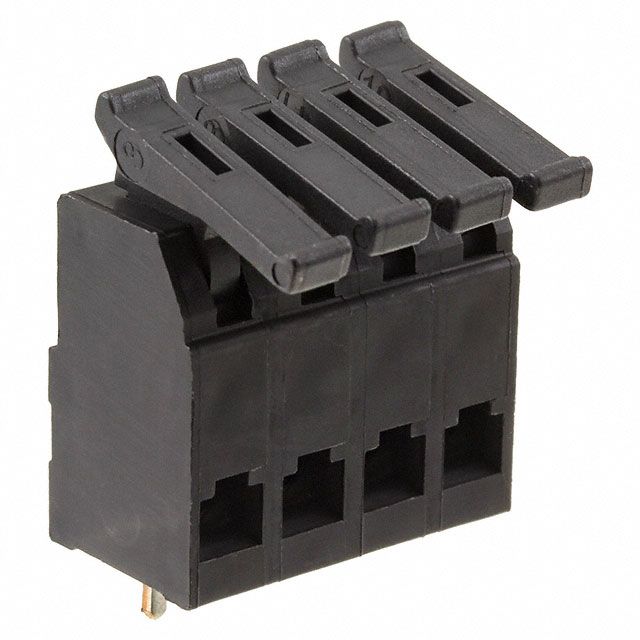

AST0550402
METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 4
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 12A
Voltage : 300V
Wire Gauge : 12-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Black
Packaging : Bulk
Series : -
Part Status : Active
Number of Levels : 1
Positions Per Level : 4
Pitch : 0.197" (5.00mm)
Mating Orientation : Horizontal with Board
Current : 12A
Voltage : 300V
Wire Gauge : 12-28 AWG
Mounting Type : Through Hole
Wire Termination : Screwless - Spring Cage, Tension Clamp
Features : Lever Actuated
Color : Black
0
491 in stock
