Part Number
Manufacturer
Description
Unit Price
In Stock
VEP15US05
XP Power
Manufacturer : XP Power
Series : VEP15 (15W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 2A
Power (Watts) : 10W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm)
Approvals : CB, TUV, UL
Series : VEP15 (15W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 2A
Power (Watts) : 10W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm)
Approvals : CB, TUV, UL
0
100 in stock

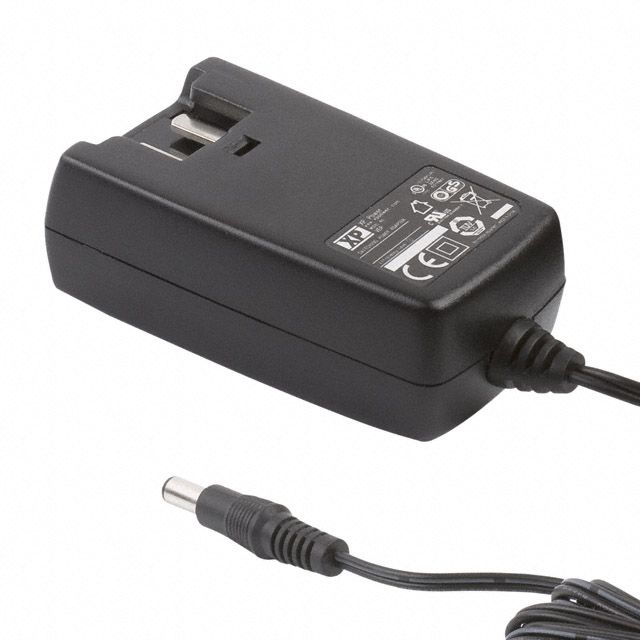

VEP15US09
XP Power
Manufacturer : XP Power
Series : VEP15 (15W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 1.4A
Power (Watts) : 13W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm)
Approvals : CB, TUV, UL
Series : VEP15 (15W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 1.4A
Power (Watts) : 13W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm)
Approvals : CB, TUV, UL
0
100 in stock
VEP15US12
XP Power
Manufacturer : XP Power
Series : VEP15 (15W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.25A
Power (Watts) : 15W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm)
Approvals : CB, TUV, UL
Series : VEP15 (15W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.25A
Power (Watts) : 15W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm)
Approvals : CB, TUV, UL
0
100 in stock
VEP15US24
XP Power
Manufacturer : XP Power
Series : VEP15 (15W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 630mA
Power (Watts) : 15W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm)
Approvals : CB, TUV, UL
Series : VEP15 (15W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 630mA
Power (Watts) : 15W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm)
Approvals : CB, TUV, UL
0
100 in stock
VEP24US05
XP Power
Manufacturer : XP Power
Series : VEP24 (24W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 2.5A
Power (Watts) : 13W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level IV
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approvals : CB, TUV, UL
Series : VEP24 (24W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 2.5A
Power (Watts) : 13W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level IV
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approvals : CB, TUV, UL
0
100 in stock
VEP24US09
XP Power
Manufacturer : XP Power
Series : VEP24 (24W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 2.2A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level IV
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approvals : CB, TUV, UL
Series : VEP24 (24W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 2.2A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level IV
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approvals : CB, TUV, UL
0
100 in stock
VEP24US12
XP Power
Manufacturer : XP Power
Series : VEP24 (24W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 2A
Power (Watts) : 24W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level IV
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approvals : CB, TUV, UL
Series : VEP24 (24W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 2A
Power (Watts) : 24W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level IV
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approvals : CB, TUV, UL
0
100 in stock

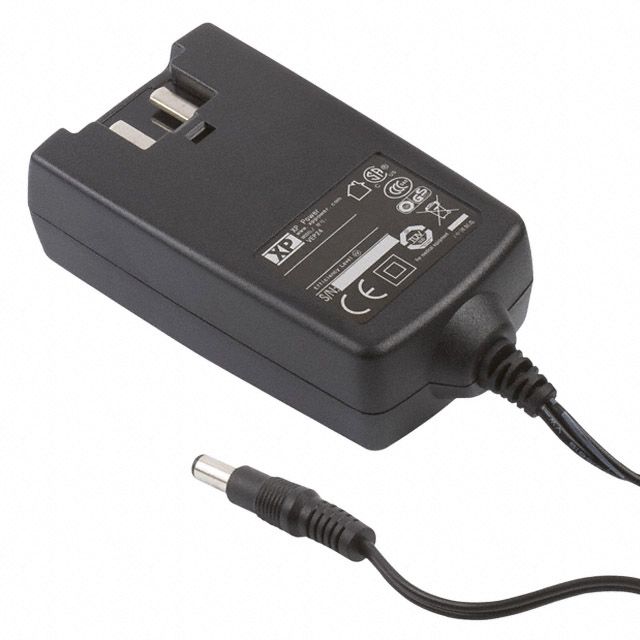

VEP24US24
XP Power
Manufacturer : XP Power
Series : VEP24 (24W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1A
Power (Watts) : 24W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level IV
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approvals : CB, TUV, UL
Series : VEP24 (24W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 80 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1A
Power (Watts) : 24W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level IV
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)
Approvals : CB, TUV, UL
0
100 in stock
VEP36US09
XP Power
Manufacturer : XP Power
Series : VEP36 (36W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 3A
Power (Watts) : 27W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)
Approvals : CB, TUV, UL
Series : VEP36 (36W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 3A
Power (Watts) : 27W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)
Approvals : CB, TUV, UL
0
100 in stock

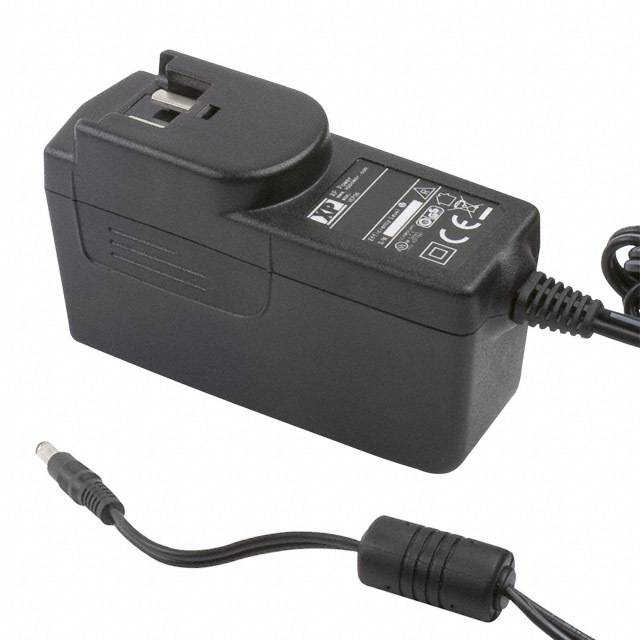

VEP36US12
XP Power
Manufacturer : XP Power
Series : VEP36 (36W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 3A
Power (Watts) : 36W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)
Approvals : CB, TUV, UL
Series : VEP36 (36W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 3A
Power (Watts) : 36W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)
Approvals : CB, TUV, UL
0
100 in stock
VEP36US15
XP Power
Manufacturer : XP Power
Series : VEP36 (36W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 15V
Current - Output (Max) : 2.4A
Power (Watts) : 36W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)
Approvals : CB, TUV, UL
Series : VEP36 (36W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 15V
Current - Output (Max) : 2.4A
Power (Watts) : 36W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)
Approvals : CB, TUV, UL
0
100 in stock
VEP36US24
XP Power
Manufacturer : XP Power
Series : VEP36 (36W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.5A
Power (Watts) : 36W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)
Approvals : CB, TUV, UL
Series : VEP36 (36W)
Part Status : Discontinued at
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.5A
Power (Watts) : 36W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial), Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)
Approvals : CB, TUV, UL
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
