WeEn Semiconductors Co., Ltd
- WeEn Semiconductors Co., Ltd, is the global joint venture between NXP Semiconductors N.V. and Beijing JianGuang Asset Management Co. Ltd (JAC Capital). WeEn Semiconductors was officially opened on 19th January, 2016 with the business and operations center located in Shanghai, China. WeEn Semiconductors is registered at Nanchang city which is the capital city of Jiangxi province, China. It fully owns subsidiaries and branches in Jilin city for bipolar production, in Shanghai and the United Kingdom for R&D and production support, in Hong Kong for Sales activities, and in many other countries for sales and customer services, respectively.
As a key player in the semiconductors industry, WeEn combines the advanced bipolar power technology and the strong resource of JAC Capital in Chinese manufacturing industry and distribution channels, to focus on developing a complete portfolio of industry-leading bipolar power products including silicon controlled rectifiers, power diodes, high voltage transistors, silicon carbide which are widely used in the automotive, telecommunications, computers and consumer electronics, intelligent home appliances, lighting, and power management markets. The aim is to help the customers achieve higher cost-efficiency and production efficiency and to contribute to the development of China and global intelligent manufacturing.
The NXP Bi-Polar Division product portfolio (Diodes, Thyristors & Transistors) has been transferred to WeEn Semiconductors (Jan 19, 2017).
Part Number
Manufacturer
Description
Unit Price
In Stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Bulk
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 800V
Current - On State (It (RMS)) (Max) : 12A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 95A, 105A
Current - Gate Trigger (Igt) (Max) : 35mA
Current - Hold (Ih) (Max) : 30mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole

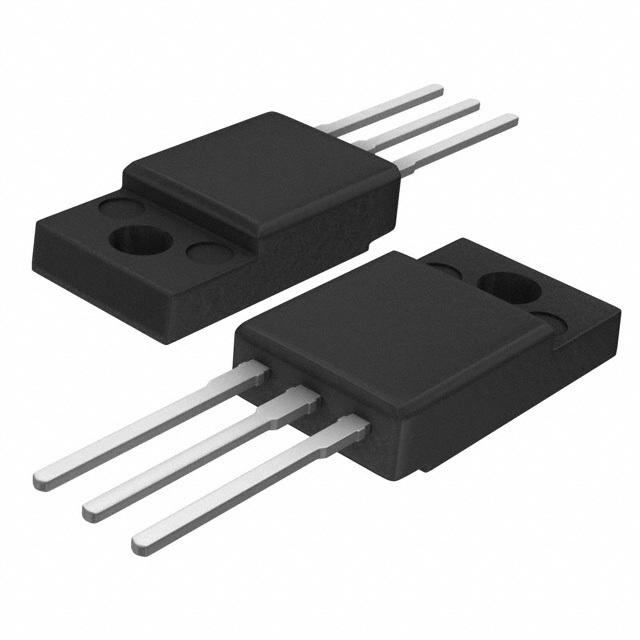

Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220F
0
4668 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 35mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole

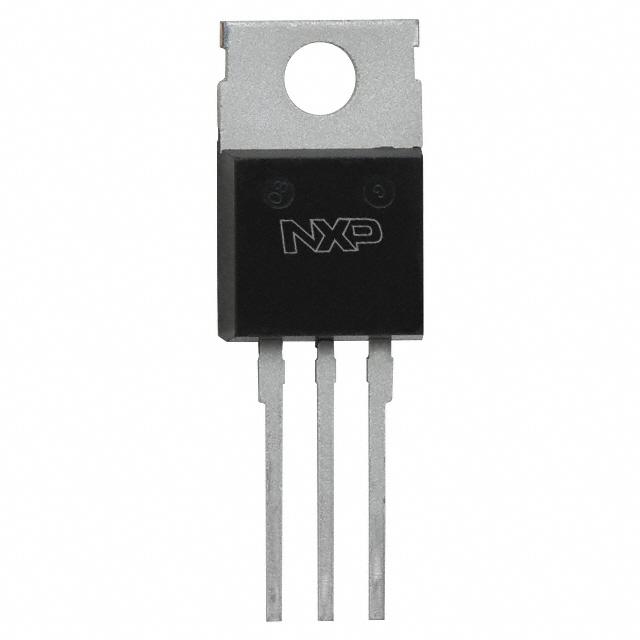

Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
3441 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
3636 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
4885 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 800V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 35mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
2261 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 800V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 35mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount

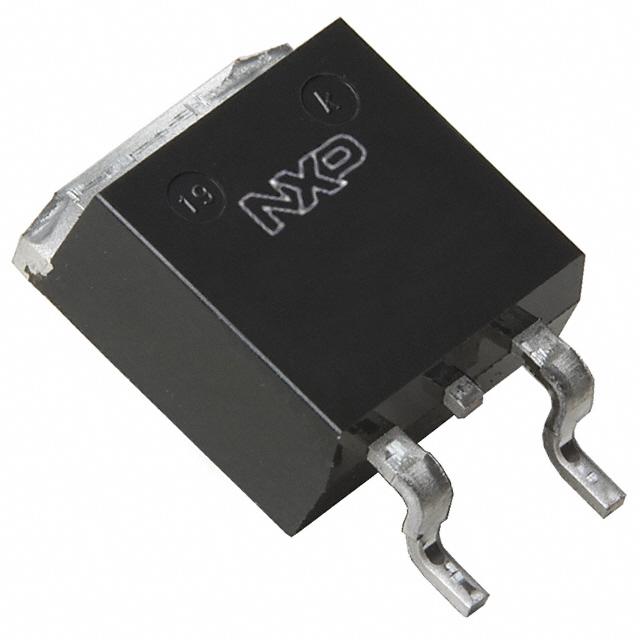

Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
1697 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 35mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220F
0
3358 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Bulk
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220F
0
5429 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 25mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220F
0
3922 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 800V
Current - On State (It (RMS)) (Max) : 16A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 155A, 170A
Current - Gate Trigger (Igt) (Max) : 35mA
Current - Hold (Ih) (Max) : 45mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220F
0
4060 in stock
