Torex Semiconductor
- Torex is a leading provider of CMOS power management ICs targeted toward battery powered and energy efficient applications. Torex specializes in CMOS analog technology, with LDO voltage regulators, voltage detectors and DC/DC converters making up our core product offering. Using laser trimming, we are able to offer 1% and 2% accuracy devices. Many of our devices are available in 0.05V increments.
Additional Torex products include charge pump ICs, Multi-Chip Modules, Mosfets, op amps, oscillators, PLL clock generator ICs, Schottky barrier diodes, battery charger ICs, Hall Effect ICs and load switches.
Torex offers a unique GO "Green Operation" energy saving function. Many of our devices are able to automatically or manually switch between high speed mode and power save mode depending upon the load current.
Torex offers some of the smallest packages in the world. All of our devices are RoHS compliant, and our complete product line-up will also be halogen and antimony free by 2Q 2010.
Part Number
Manufacturer
Description
Unit Price
In Stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging

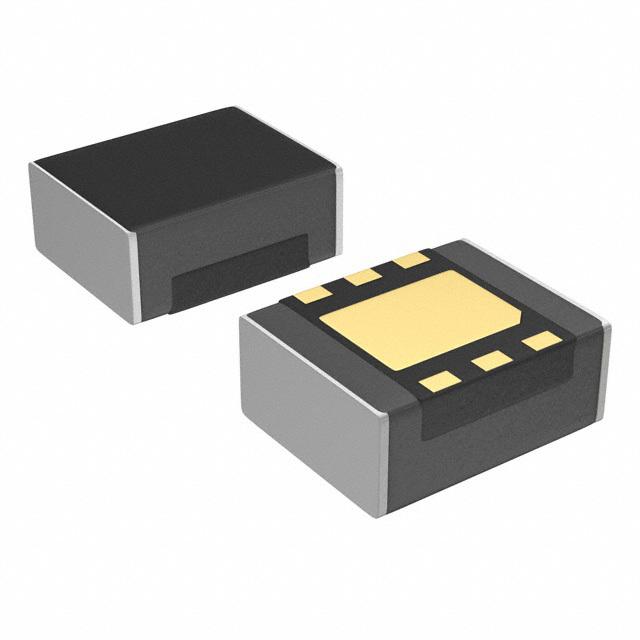

Series : XCL210
Part Status : Discontinued at
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2V
Voltage - Input (Max) : 6V
Voltage - Output 1 : 2.8V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 50mA
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 8-SMD
Size / Dimension : 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.04mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL210
Part Status : Discontinued at
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2V
Voltage - Input (Max) : 6V
Voltage - Output 1 : 3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 50mA
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 8-SMD
Size / Dimension : 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.04mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL210
Part Status : Discontinued at
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2V
Voltage - Input (Max) : 6V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 50mA
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 8-SMD
Size / Dimension : 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.04mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging

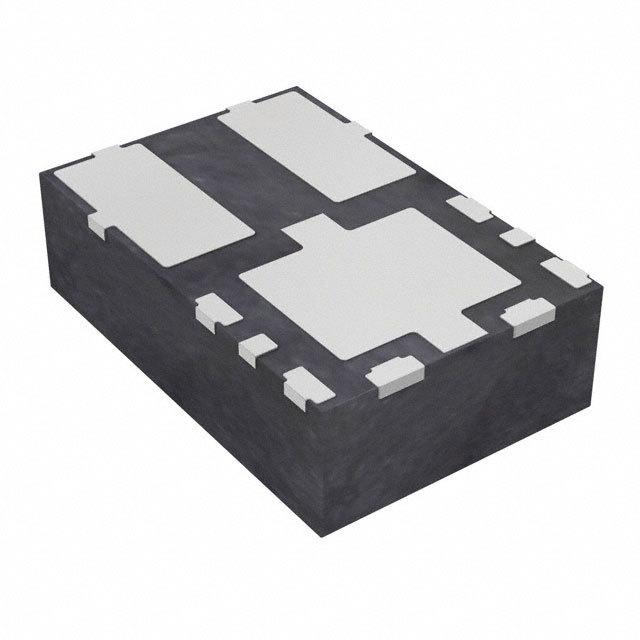

Series : XCL212
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 6V
Voltage - Output 1 : 0.9V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 94%
Mounting Type : Surface Mount
Package / Case : USP-11B01
Size / Dimension : 0.12" L x 0.19" W x 0.05" H (3.1mm x 4.7mm x 1.3mm)
Supplier Device Package : -
Control Features : -
0
2401 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging

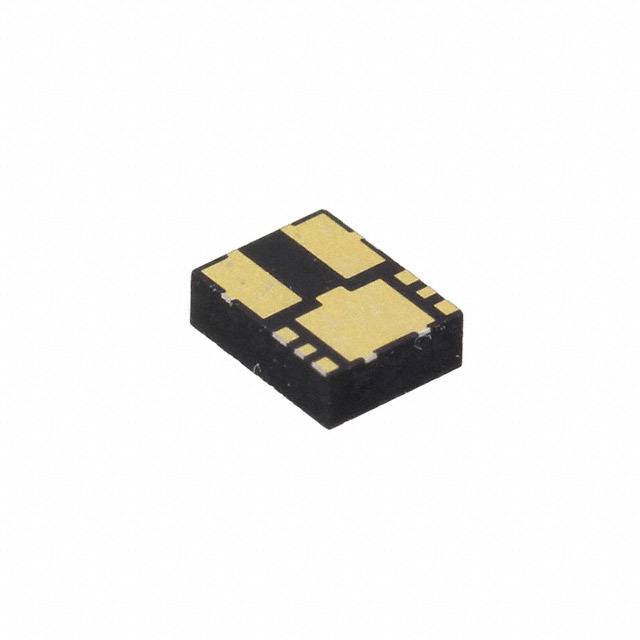

Series : XCL214
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 1V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.5A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 9-PowerTFQFN
Size / Dimension : 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Supplier Device Package : USP-9B01
Control Features : -
0
3610 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL214
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 1.2V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.5A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 9-PowerTFQFN
Size / Dimension : 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Supplier Device Package : USP-9B01
Control Features : -
0
4623 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL214
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 1.5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.5A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 9-PowerTFQFN
Size / Dimension : 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Supplier Device Package : USP-9B01
Control Features : -
0
4640 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL214
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 1.8V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.5A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 9-PowerTFQFN
Size / Dimension : 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Supplier Device Package : USP-9B01
Control Features : -
0
2922 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL214
Part Status : Discontinued at
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 2.5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.5A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 9-PowerTFQFN
Size / Dimension : 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Supplier Device Package : USP-9B01
Control Features : -
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL214
Part Status : Discontinued at
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.5A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 9-PowerTFQFN
Size / Dimension : 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Supplier Device Package : USP-9B01
Control Features : -
0
2610 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL214
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.5A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 85°C
Efficiency : 92%
Mounting Type : Surface Mount
Package / Case : 9-PowerTFQFN
Size / Dimension : 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Supplier Device Package : USP-9B01
Control Features : -
0
13598 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL219
Part Status : Discontinued at
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.5V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 1V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1A
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 105°C
Efficiency : 93%
Mounting Type : Surface Mount
Package / Case : 8-SMD
Size / Dimension : 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.04mm)
Supplier Device Package : -
Control Features : Enable, Active High
0
100 in stock
