Torex Semiconductor
- Torex is a leading provider of CMOS power management ICs targeted toward battery powered and energy efficient applications. Torex specializes in CMOS analog technology, with LDO voltage regulators, voltage detectors and DC/DC converters making up our core product offering. Using laser trimming, we are able to offer 1% and 2% accuracy devices. Many of our devices are available in 0.05V increments.
Additional Torex products include charge pump ICs, Multi-Chip Modules, Mosfets, op amps, oscillators, PLL clock generator ICs, Schottky barrier diodes, battery charger ICs, Hall Effect ICs and load switches.
Torex offers a unique GO "Green Operation" energy saving function. Many of our devices are able to automatically or manually switch between high speed mode and power save mode depending upon the load current.
Torex offers some of the smallest packages in the world. All of our devices are RoHS compliant, and our complete product line-up will also be halogen and antimony free by 2Q 2010.
Part Number
Manufacturer
Description
Unit Price
In Stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 18V
Voltage - Output (Min/Fixed) : 1V
Voltage - Output (Max) : 12V
Current - Output : 2.2A
Frequency - Switching : 500kHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount

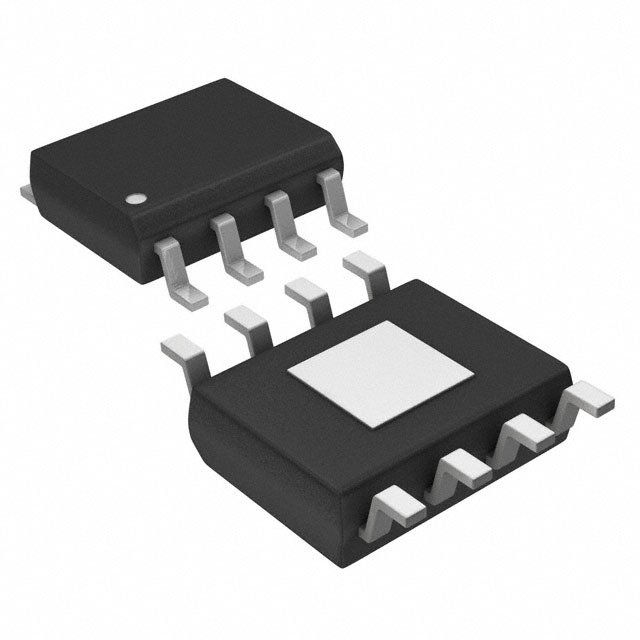

Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOPFB
0
963 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 18V
Voltage - Output (Min/Fixed) : 1V
Voltage - Output (Max) : 12V
Current - Output : 2.2A
Frequency - Switching : 500kHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOPFB
0
4597 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V
Current - Output : 2.2A
Voltage - Input : 4.5 V ~ 18 V
Regulator Topology : Buck
Frequency - Switching : 500kHz

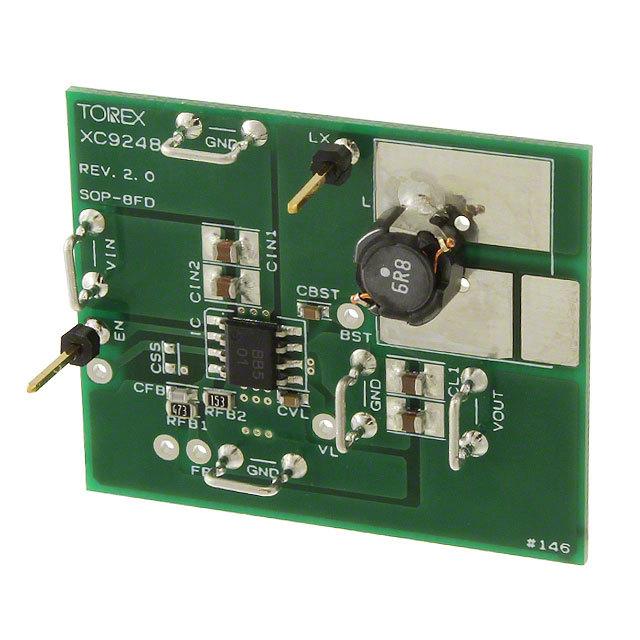

Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : XC9248
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 5V
Current - Output : 2.2A
Voltage - Input : 4.5 V ~ 18 V
Regulator Topology : Buck
Frequency - Switching : 500kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : XC9248
0
4 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 7V
Voltage - Input (Max) : 30V
Voltage - Output (Min/Fixed) : 1.2V
Voltage - Output (Max) : 12V
Current - Output : 2A
Frequency - Switching : 500kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOPFB
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 7V
Voltage - Input (Max) : 30V
Voltage - Output (Min/Fixed) : 1.2V
Voltage - Output (Max) : 12V
Current - Output : 2A
Frequency - Switching : 500kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOPFB
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Output Type : Transistor Driver
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Number of Outputs : 1
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 3 V ~ 30 V
Frequency - Switching : 280kHz ~ 550kHz
Duty Cycle (Max) : 100%
Synchronous Rectifier : No
Clock Sync : No
Serial Interfaces : -
Control Features : Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature : -40°C ~ 105°C (TA)

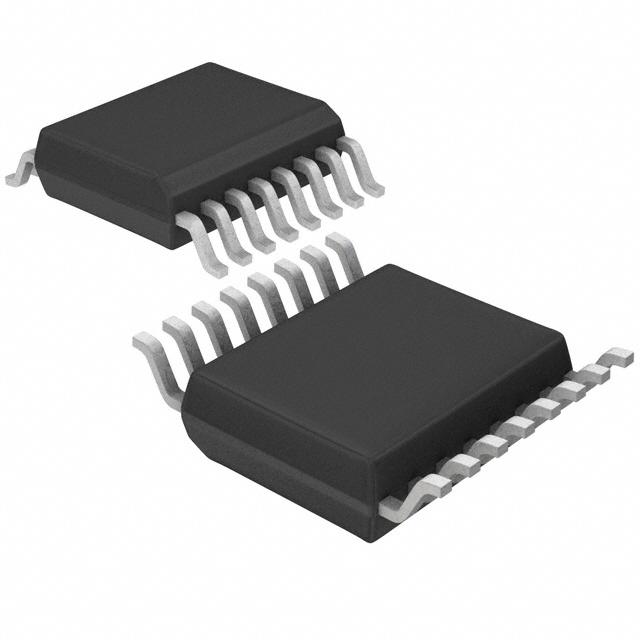

Package / Case : 16-LSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Transistor Driver
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Number of Outputs : 1
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 3 V ~ 30 V
Frequency - Switching : 280kHz ~ 550kHz
Duty Cycle (Max) : 100%
Synchronous Rectifier : No
Clock Sync : No
Serial Interfaces : -
Control Features : Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature : -40°C ~ 105°C (TA)
Package / Case : 16-LSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
2974 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Fixed
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 1.2V
Voltage - Output (Max) : -
Current - Output : 1.5A
Frequency - Switching : 3MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount

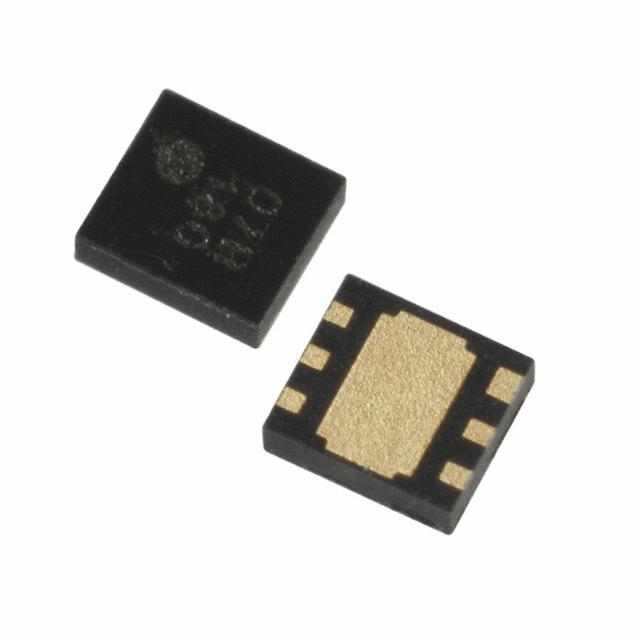

Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-USPC (1.8x2)
0
5503 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Fixed
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 1.8V
Voltage - Output (Max) : -
Current - Output : 1.5A
Frequency - Switching : 3MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-USPC (1.8x2)
0
4665 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Fixed
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 2.5V
Voltage - Output (Max) : -
Current - Output : 1.5A
Frequency - Switching : 1.2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-USPC (1.8x2)
0
1832 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Fixed
Number of Outputs : 1
Voltage - Input (Min) : 2.7V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 2.5V
Voltage - Output (Max) : -
Current - Output : 1.5A
Frequency - Switching : 3MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 105°C (TA)
Mounting Type : Surface Mount
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-USPC (1.8x2)
0
2986 in stock
