Torex Semiconductor
- Torex is a leading provider of CMOS power management ICs targeted toward battery powered and energy efficient applications. Torex specializes in CMOS analog technology, with LDO voltage regulators, voltage detectors and DC/DC converters making up our core product offering. Using laser trimming, we are able to offer 1% and 2% accuracy devices. Many of our devices are available in 0.05V increments.
Additional Torex products include charge pump ICs, Multi-Chip Modules, Mosfets, op amps, oscillators, PLL clock generator ICs, Schottky barrier diodes, battery charger ICs, Hall Effect ICs and load switches.
Torex offers a unique GO "Green Operation" energy saving function. Many of our devices are able to automatically or manually switch between high speed mode and power save mode depending upon the load current.
Torex offers some of the smallest packages in the world. All of our devices are RoHS compliant, and our complete product line-up will also be halogen and antimony free by 2Q 2010.
Part Number
Manufacturer
Description
Unit Price
In Stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Tape & Reel (TR)
Series : 74WL
Part Status : Obsolete
Function : Set(Preset) and Reset
Type : D-Type
Output Type : Differential
Number of Elements : 1
Number of Bits per Element : 1
Clock Frequency : 115MHz
Max Propagation Delay @ V, Max CL : 9.3ns @ 5V, 50pF
Trigger Type : Positive Edge
Current - Output High, Low : 8mA, 8mA
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Iq) : 1µA
Input Capacitance : 4pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount

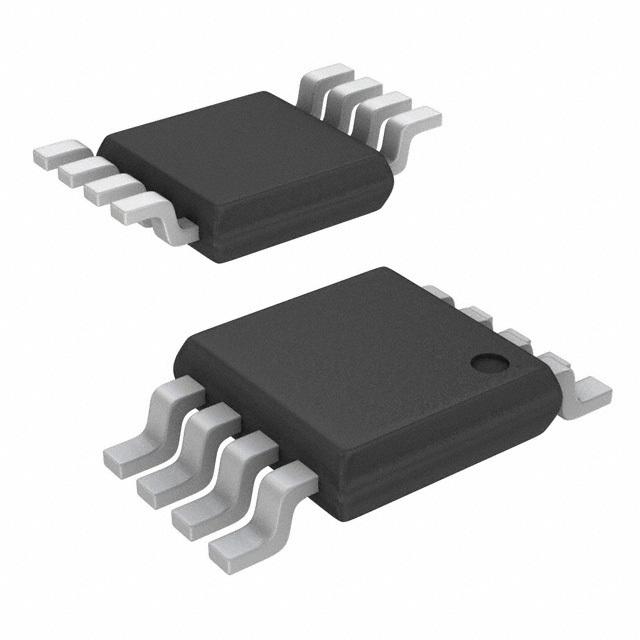

Package / Case : 8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : General Purpose
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 1.2 V ~ 6 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 400mA
Rds On (Typ) : 350 mOhm
Input Type : Non-Inverting
Features : Load Discharge
Fault Protection : Current Limiting (Fixed)
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
0
17929 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.5 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 2A
Rds On (Typ) : 85 mOhm
Input Type : Non-Inverting
Features : Slew Rate Controlled, Status Flag
Fault Protection : Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 105°C (TA)

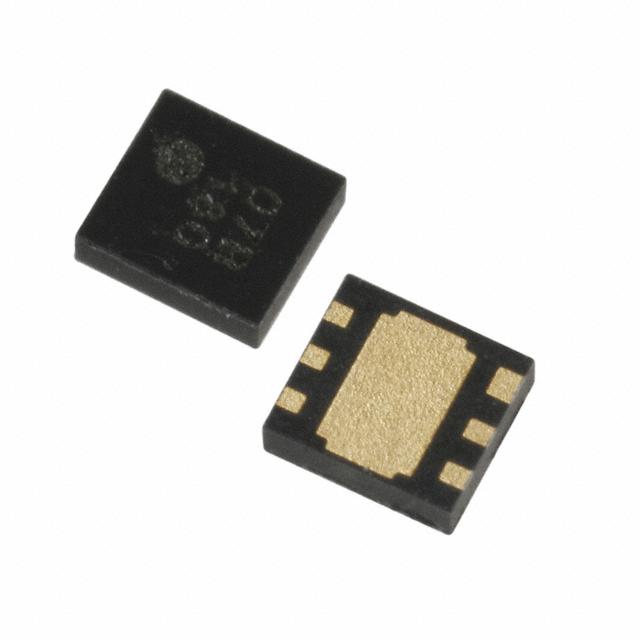

Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-USPC (1.8x2)
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.5 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 900mA
Rds On (Typ) : 85 mOhm
Input Type : Non-Inverting
Features : Slew Rate Controlled, Status Flag
Fault Protection : Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 105°C (TA)
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-USPC (1.8x2)
0
1467 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : Step-Up
Output Configuration : Positive
Topology : Boost
Output Type : Adjustable (Programmable)
Number of Outputs : 1
Voltage - Input (Min) : 0.9V
Voltage - Input (Max) : 10V
Voltage - Output (Min/Fixed) : 1.5V
Voltage - Output (Max) : 7V
Current - Output : 400mA (Switch)
Frequency - Switching : 100kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : Step-Up
Output Configuration : Positive
Topology : Boost
Output Type : Adjustable (Programmable)
Number of Outputs : 1
Voltage - Input (Min) : 0.9V
Voltage - Input (Max) : 10V
Voltage - Output (Min/Fixed) : 1.5V
Voltage - Output (Max) : 7V
Current - Output : 400mA (Switch)
Frequency - Switching : 100kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Up
Output Configuration : Positive
Topology : Boost
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 2.5V
Voltage - Input (Max) : 6V
Voltage - Output (Min/Fixed) : 2.5V
Voltage - Output (Max) : 19.5V
Current - Output : 310mA (Switch)
Frequency - Switching : 1MHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
0
22450 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Up
Output Configuration : Positive
Topology : Boost
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 0.8V
Voltage - Input (Max) : 6V
Voltage - Output (Min/Fixed) : 1.8V
Voltage - Output (Max) : 5.3V
Current - Output : 1.2A (Switch)
Frequency - Switching : 1.2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount

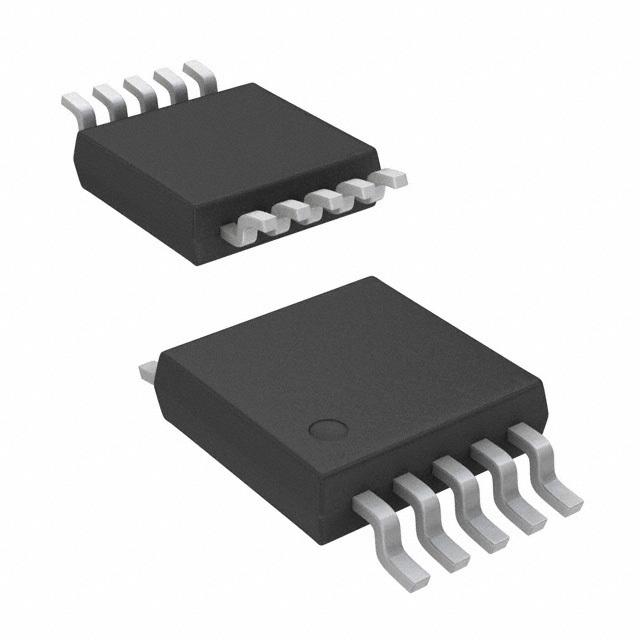

Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
0
16164 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : Step-Up
Output Configuration : Positive
Topology : Boost
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 0.8V
Voltage - Input (Max) : 6V
Voltage - Output (Min/Fixed) : 1.8V
Voltage - Output (Max) : 5.3V
Current - Output : 1.2A (Switch)
Frequency - Switching : 1.2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount

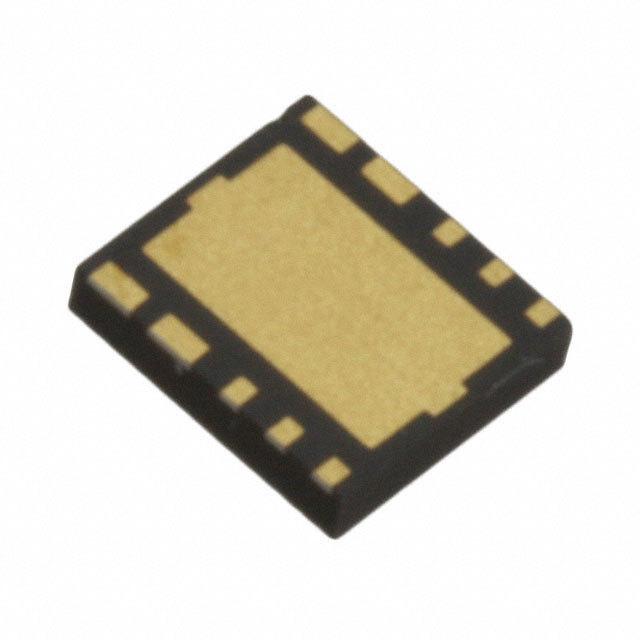

Package / Case : 10-UFDFN Exposed Pad
Supplier Device Package : 10-USPB (2.9x2.6)
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Up
Output Configuration : Positive
Topology : Boost
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 0.65V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 1.8V
Voltage - Output (Max) : 5V
Current - Output : 1.2A (Switch)
Frequency - Switching : 1.2MHz
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 10-UFDFN Exposed Pad
Supplier Device Package : 10-USPB (2.9x2.6)
0
66 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Up
Output Configuration : Positive
Topology : Boost
Output Type : Fixed
Number of Outputs : 1
Voltage - Input (Min) : 0.9V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 3.3V
Voltage - Output (Max) : -
Current - Output : 295mA (Switch)
Frequency - Switching : -
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount

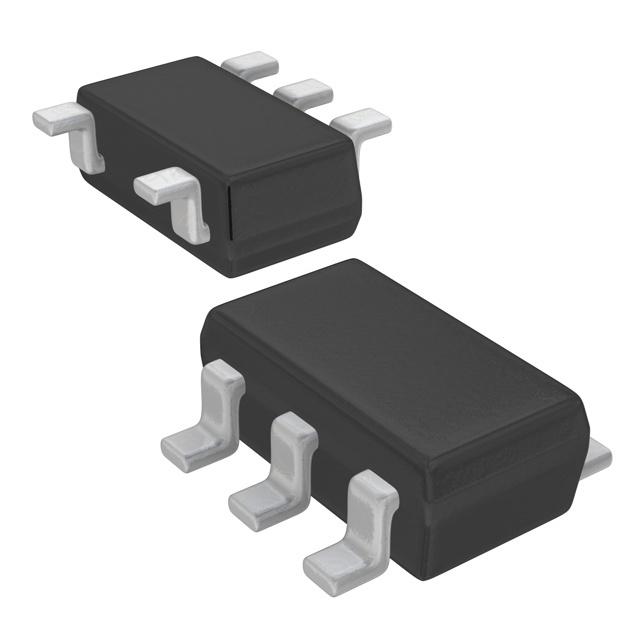

Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
0
1649 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Up
Output Configuration : Positive
Topology : Boost
Output Type : Fixed
Number of Outputs : 1
Voltage - Input (Min) : 0.9V
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 5V
Voltage - Output (Max) : -
Current - Output : 295mA (Switch)
Frequency - Switching : -
Synchronous Rectifier : Yes
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
0
1826 in stock
