Texas Instruments
- Texas Instruments Incorporated (TI) is a global semiconductor design and manufacturing company that develops analog ICs and embedded processors. By employing the world's brightest minds, TI creates innovations that shape the future of technology. TI is helping more than 100,000 customers transform the future, today.
Part Number
Manufacturer
Description
Unit Price
In Stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : 74ACT
Part Status : Active
Logic Type : AND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 4µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 8ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 16-SOIC
Package / Case : 16-SOIC (0.154", 3.90mm Width)
0
505 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Series : 74ACT
Part Status : Active
Logic Type : AND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 4µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 8ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Supplier Device Package : 16-PDIP
Package / Case : 16-DIP (0.300", 7.62mm)
0
1067 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74ACT
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 1
Number of Inputs : 8
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 4µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 8.1ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount

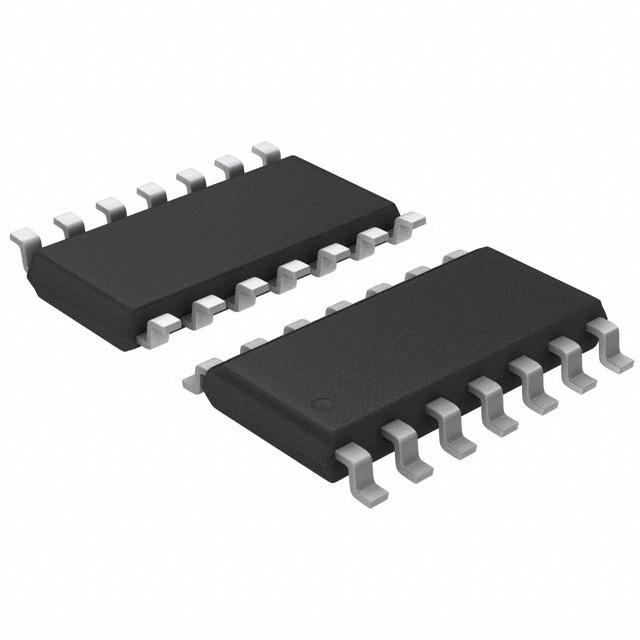

Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
1144 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74ACT
Part Status : Active
Logic Type : OR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 4µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 8.1ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount

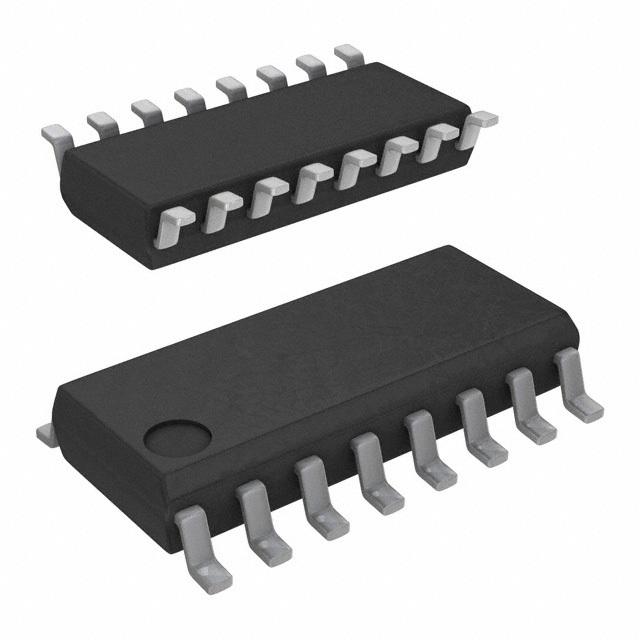

Supplier Device Package : 16-SOIC
Package / Case : 16-SOIC (0.154", 3.90mm Width)
0
1303 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : 74ACT
Part Status : Active
Logic Type : OR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 4µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 8.1ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole

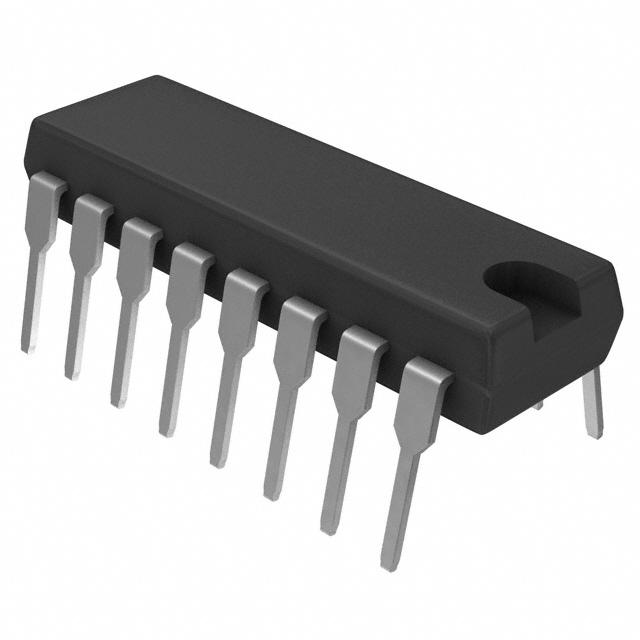

Supplier Device Package : 16-PDIP
Package / Case : 16-DIP (0.300", 7.62mm)
0
163 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : 74ACT
Part Status : Active
Function : Set(Preset) and Reset
Type : D-Type
Output Type : Differential
Number of Elements : 2
Number of Bits per Element : 1
Clock Frequency : 125MHz
Max Propagation Delay @ V, Max CL : 8.5ns @ 5V, 50pF
Trigger Type : Positive Edge
Current - Output High, Low : 24mA, 24mA
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Iq) : 4µA
Input Capacitance : 3.5pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
394 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74ACT
Part Status : Active
Function : Set(Preset) and Reset
Type : D-Type
Output Type : Differential
Number of Elements : 2
Number of Bits per Element : 1
Clock Frequency : 125MHz
Max Propagation Delay @ V, Max CL : 8.5ns @ 5V, 50pF
Trigger Type : Positive Edge
Current - Output High, Low : 24mA, 24mA
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Iq) : 4µA
Input Capacitance : 3.5pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount

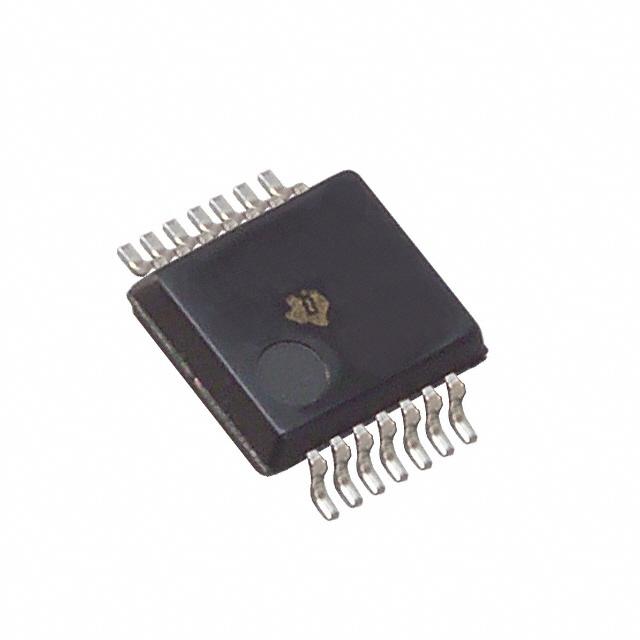

Package / Case : 14-SSOP (0.209", 5.30mm Width)
0
1269 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 74ACT
Part Status : Obsolete
Function : Set(Preset) and Reset
Type : D-Type
Output Type : Differential
Number of Elements : 2
Number of Bits per Element : 1
Clock Frequency : 125MHz
Max Propagation Delay @ V, Max CL : 8.5ns @ 5V, 50pF
Trigger Type : Positive Edge
Current - Output High, Low : 24mA, 24mA
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Iq) : 4µA
Input Capacitance : 3.5pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
100 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 74ACT
Part Status : Obsolete
Function : Set(Preset) and Reset
Type : D-Type
Output Type : Differential
Number of Elements : 2
Number of Bits per Element : 1
Clock Frequency : 125MHz
Max Propagation Delay @ V, Max CL : 8.5ns @ 5V, 50pF
Trigger Type : Positive Edge
Current - Output High, Low : 24mA, 24mA
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Iq) : 4µA
Input Capacitance : 3.5pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
100 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 74ACT
Part Status : Obsolete
Function : Set(Preset) and Reset
Type : D-Type
Output Type : Differential
Number of Elements : 2
Number of Bits per Element : 1
Clock Frequency : 125MHz
Max Propagation Delay @ V, Max CL : 8.5ns @ 5V, 50pF
Trigger Type : Positive Edge
Current - Output High, Low : 24mA, 24mA
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Iq) : 4µA
Input Capacitance : 3.5pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
100 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74ACT
Part Status : Active
Function : Set(Preset) and Reset
Type : D-Type
Output Type : Differential
Number of Elements : 2
Number of Bits per Element : 1
Clock Frequency : 125MHz
Max Propagation Delay @ V, Max CL : 8.5ns @ 5V, 50pF
Trigger Type : Positive Edge
Current - Output High, Low : 24mA, 24mA
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Iq) : 4µA
Input Capacitance : 3.5pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.209", 5.30mm Width)
0
1823 in stock
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Series : 74ACT
Part Status : Active
Type : Decoder/Demultiplexer
Circuit : 1 x 2:4
Independent Circuits : 2
Current - Output High, Low : 24mA, 24mA
Voltage Supply Source : Single Supply
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
954 in stock
