Taoglas

- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.

Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.

Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.

Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.


Part Number

Manufacturer

Description

Unit Price

In Stock

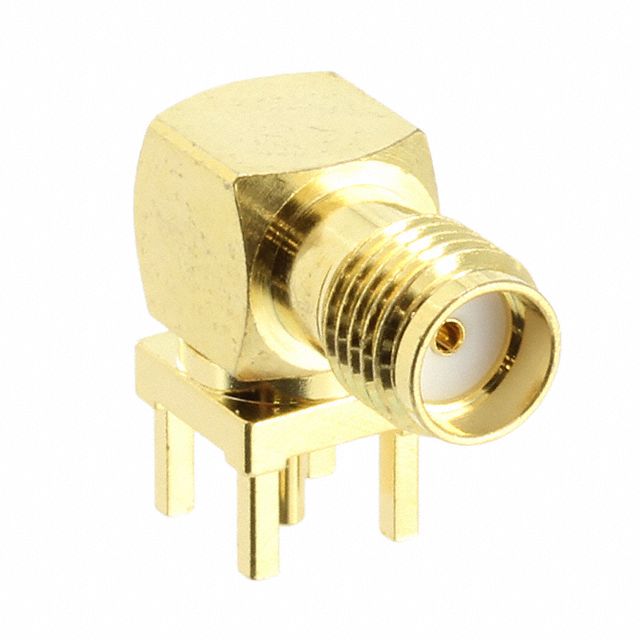

PCB.SMAFRA.HT

Taoglas

Manufacturer : Taoglas Limited
Packaging : Tray
Series : -
Part Status : Active
Connector Style : SMA
Connector Type : Jack, Female Socket
Contact Termination : Solder
Shield Termination : Solder
Impedance : 50 Ohm
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Cable Group : -
Fastening Type : Threaded
Frequency - Max : 6GHz
Number of Ports : 1
Features : -
Housing Color : Gold
Ingress Protection : -

2591 in stock

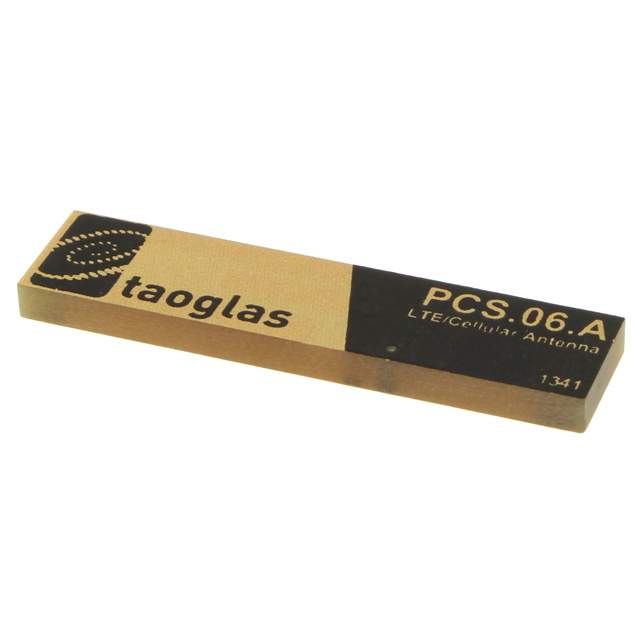

PCS.06.A

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Series : Havok
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Antenna Type : Chip
Number of Bands : 7
VSWR : -
Return Loss : -7dB, -6dB
Gain : -0.21dBi, 0.77dBi, 0.61dBi, 3.05dBi, 2.92dBi, 3.17dBi, 3.72dBi
Power - Max : 5W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.118" (3.00mm)
Applications : CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA

100 in stock

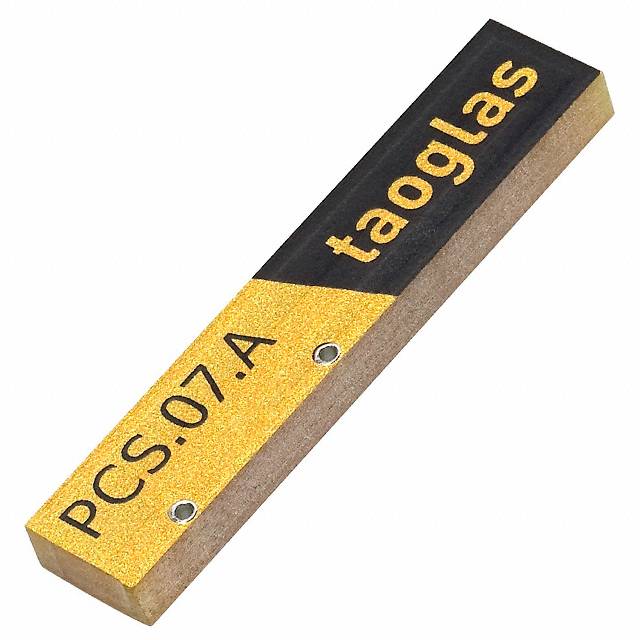

PCS.07.A

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Nemesis
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 5
VSWR : -
Return Loss : -3dB, -4dB, -5dB, -7dB, -6dB
Gain : -1.96dBi, 1.77dBi, 2.9dBi, 2.83dBi, 2.57dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.118" (3.00mm)
Applications : CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA

1211 in stock

PCSD.06.A

Taoglas

Manufacturer : Taoglas Limited
Packaging : -
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -

7 in stock

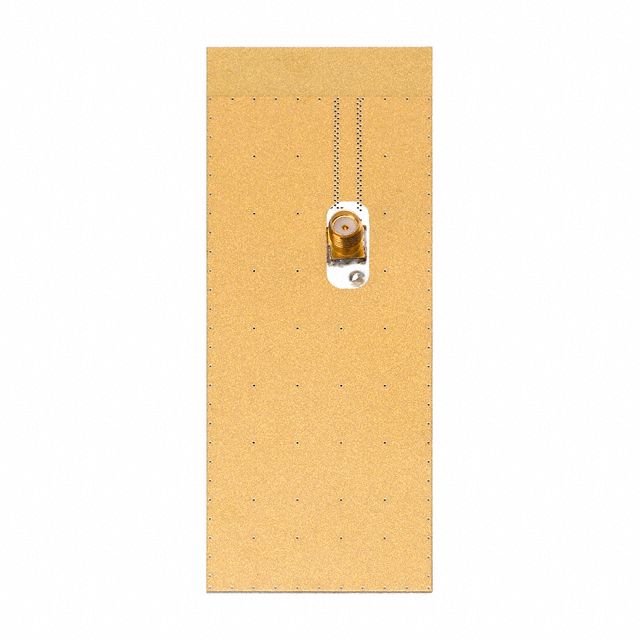

PCSD.07.A

Taoglas

Manufacturer : Taoglas Limited
Series : -
Part Status : Active
Type : Antenna
Frequency : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
For Use With/Related Products : PCS.07.A
Supplied Contents : Board(s)

3 in stock

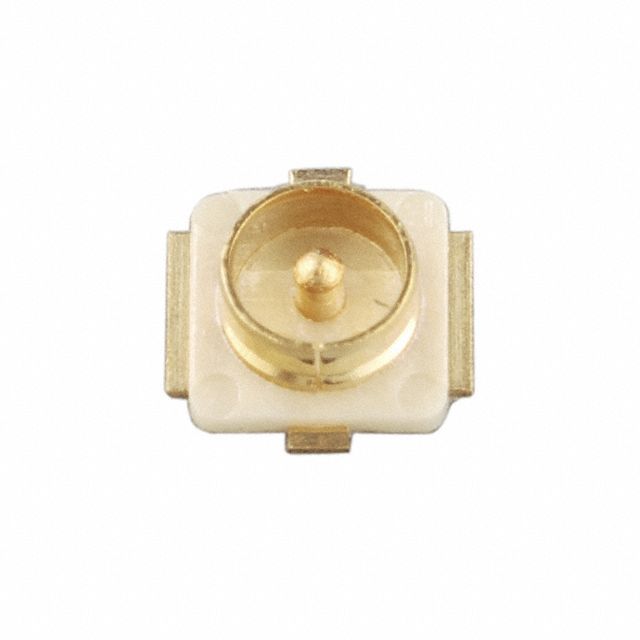

RECE.20279.001E.01

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Style : Ultra Miniature Coaxial, IPEX MHF1
Connector Type : Receptacle, Male Pin
Contact Termination : Solder
Shield Termination : Solder
Impedance : 50 Ohm
Mounting Type : Surface Mount
Mounting Feature : -
Cable Group : -
Fastening Type : Snap-On
Frequency - Max : 6GHz
Number of Ports : 1
Features : -
Housing Color : White
Ingress Protection : -

96678 in stock

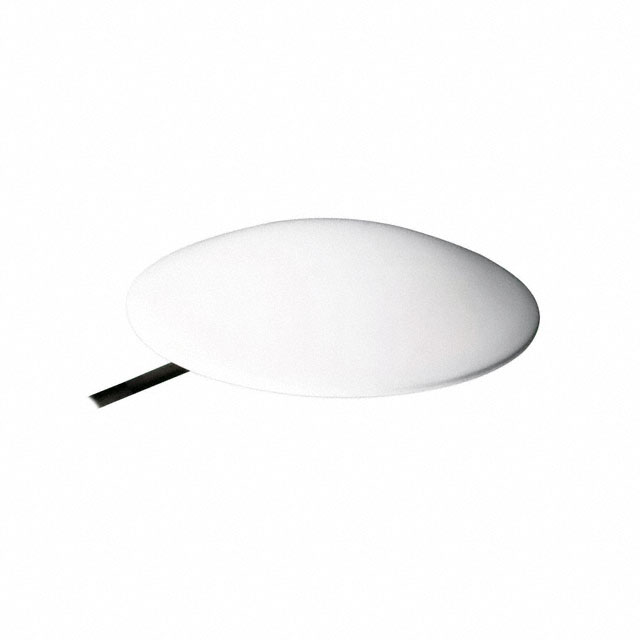

RG.02.01.3000W

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.85GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Dome
Number of Bands : 2
VSWR : -
Return Loss : -18dB
Gain : 2.5dBi
Power - Max : 10W
Features : -
Termination : Connector, SMB Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.693" (17.60mm)
Applications : GSM

66 in stock

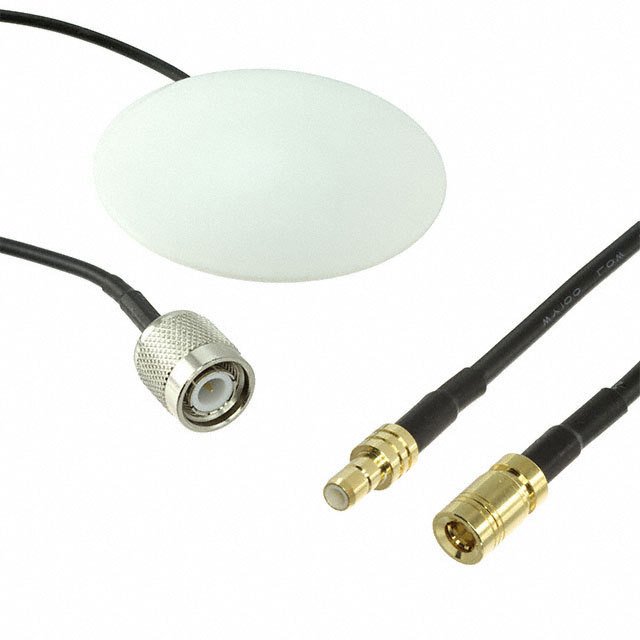

RG.02.02.3000W

Taoglas

22 in stock

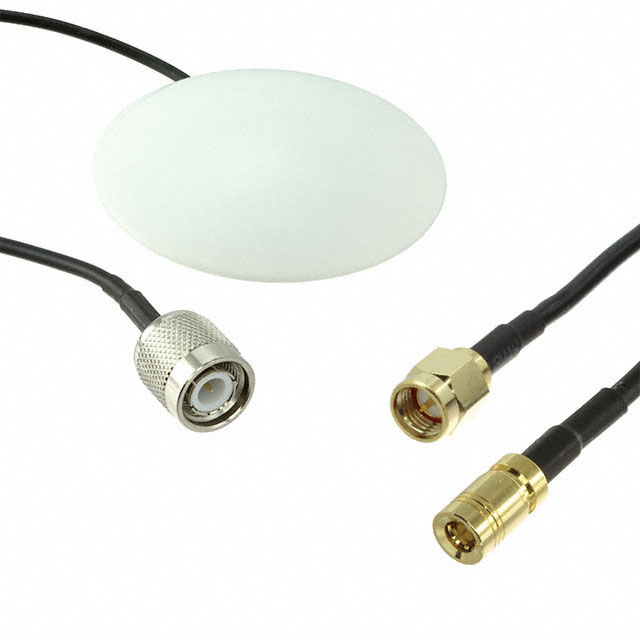

RI.02.01.3000W

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 915MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Dome
Number of Bands : 1
VSWR : -
Return Loss : -18dB
Gain : 3.2dBi
Power - Max : 10W
Features : -
Termination : Connector, SMB Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.693" (17.60mm)
Applications : -

4 in stock

RI.02.02.3000W

Taoglas

45 in stock

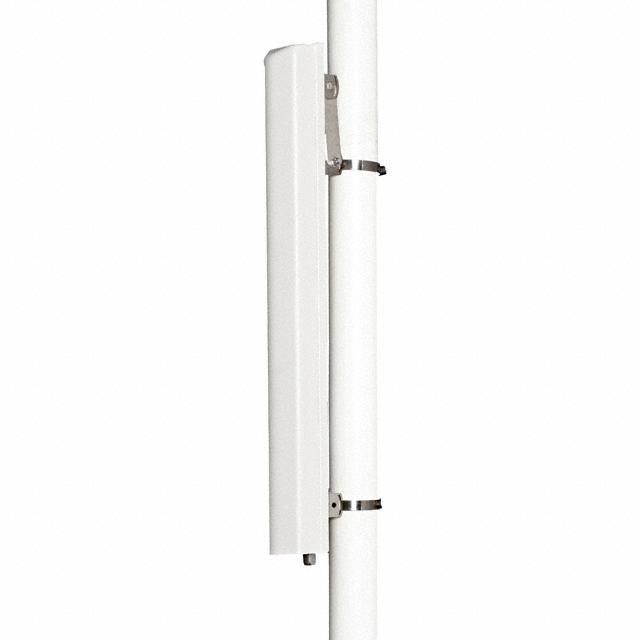

SA.PANEL.20

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Obsolete
Frequency Group : SHF (f > 4 GHz)
Frequency (Center/Band) : 5.4GHz
Frequency Range : 4.9GHz ~ 5.9GHz
Antenna Type : Panel
Number of Bands : 1
VSWR : -
Return Loss : -14dB
Gain : 17dBi
Power - Max : 50W
Features : -
Termination : Connector, N Female
Ingress Protection : -
Mounting Type : Bracket Mount
Height (Max) : 2.756" (70.00mm)
Applications : Wi-Fi

100 in stock

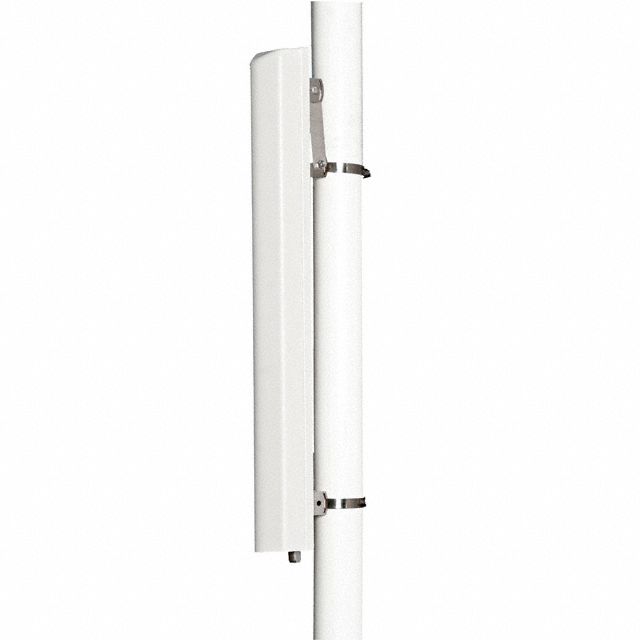

SA.PANEL.22

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Obsolete
Frequency Group : SHF (f > 4 GHz)
Frequency (Center/Band) : 5.4GHz
Frequency Range : 4.9GHz ~ 5.9GHz
Antenna Type : Panel
Number of Bands : 1
VSWR : -
Return Loss : -14dB
Gain : 18dBi
Power - Max : 50W
Features : -
Termination : Connector, N Female
Ingress Protection : -
Mounting Type : Bracket Mount
Height (Max) : 2.756" (70.00mm)
Applications : WLAN

100 in stock
