Taitien

- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

TXETBCSANF-12.800000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 12.8MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±1ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

96 in stock

TXETBDSANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 26MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±1ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

434 in stock

TXETBLSANF-19.200000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 19.2MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±1ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

140 in stock

TXETBLSANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 26MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±1ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

5913 in stock

TXETBLSANF-27.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 27MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±1ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

390 in stock

TXETBLSANF-40.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 40MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±1ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

2587 in stock

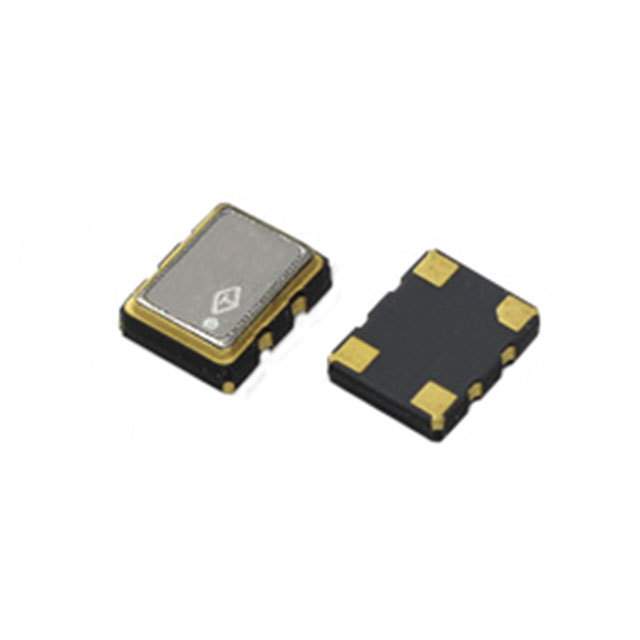

TXETCDSANF-16.368000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 16.368MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

100 in stock

TXETCLSANF-16.384000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 16.384MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

672 in stock

TXETCLSANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 25MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

998 in stock

TXETCLSANF-40.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 40MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

883 in stock

TXETDCSANF-20.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 20MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

509 in stock

TXETDDSANF-10.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TX
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 10MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 2.8 V ~ 3.3 V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -30°C ~ 85°C
Current - Supply (Max) : 2mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)

75 in stock
