Taitien

- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

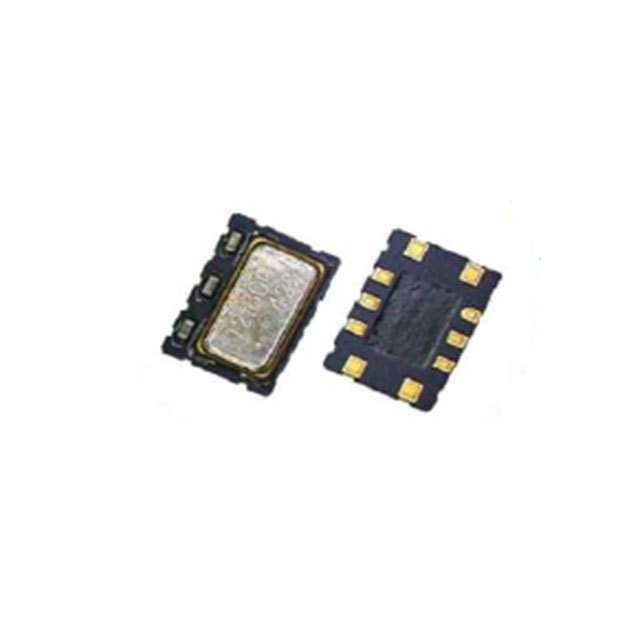

TSETALJANF-10.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 10MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

15 in stock

TSETALJANF-12.800000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 12.8MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

133 in stock

TSETALJANF-16.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 16MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

241 in stock

TSETALJANF-20.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 20MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±500ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

45 in stock

TSETMCJANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 26MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±100ppb
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

89 in stock

TSETTCJANF-12.800000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 12.8MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

40 in stock

TSETTCJANF-19.440000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 19.44MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

175 in stock

TSETTCSANF-20.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 20MHz
Function : Enable/Disable
Output : Clipped Sine Wave
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 3.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

50 in stock

TSETTLJANF-10.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 10MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

17 in stock

TSETTLJANF-19.440000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 19.44MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

50 in stock

TSETTLJANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 25MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

42 in stock

TSETTLJANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : TS
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 26MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±4.6ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 6mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 10-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)

45 in stock
