SunLED
- SunLED is one of the world's leading manufacturers of optoelectronic components. Since established in 1989, SunLED has grown and propelled to offer an extensive line of LED Lamps, Surface Mount LEDs, and LED Displays that are RoHS and REACH compliant. Manufacturing with state of the art equipment, SunLED supports high profile customers with production capabilities exceeding 350 million LEDs per month. With an increase of design requirements in the Americas, SunLED opened doors in Los Angeles, California in 1995 with a sales office and stocking warehouse to reach out to customers and provide localized support.
Part Number
Manufacturer
Description
Unit Price
In Stock

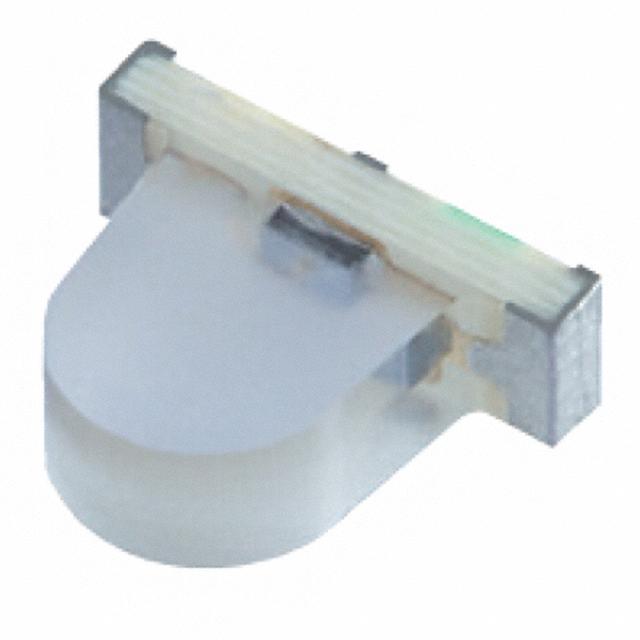

SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Collector Emitter Breakdown (Max) : 30V
Current - Collector (Ic) (Max) : -
Current - Dark (Id) (Max) : 100nA
Wavelength : 940nm
Viewing Angle : -
Power - Max : 100mW
Mounting Type : Surface Mount
Orientation : Side View
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 3-SMD, No Lead
0
3325 in stock

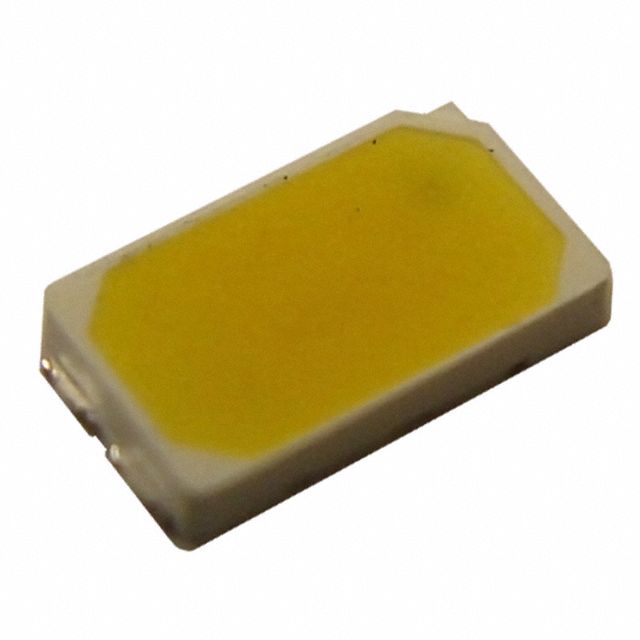

SunLED
Manufacturer : SunLED
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 45 lm (Typ)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.1V
Lumens/Watt @ Current - Test : 121 lm/W
CRI (Color Rendering Index) : 83 (Typ)
Current - Max : 240mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.040" (1.02mm)
0
100 in stock

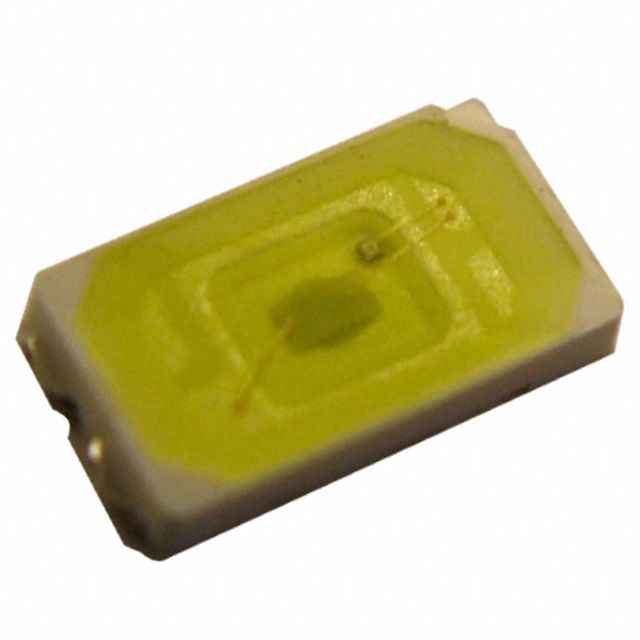

SunLED
Manufacturer : SunLED
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 40 lm (Typ)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.1V
Lumens/Watt @ Current - Test : 108 lm/W
CRI (Color Rendering Index) : 83 (Typ)
Current - Max : 240mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.040" (1.02mm)
0
100 in stock

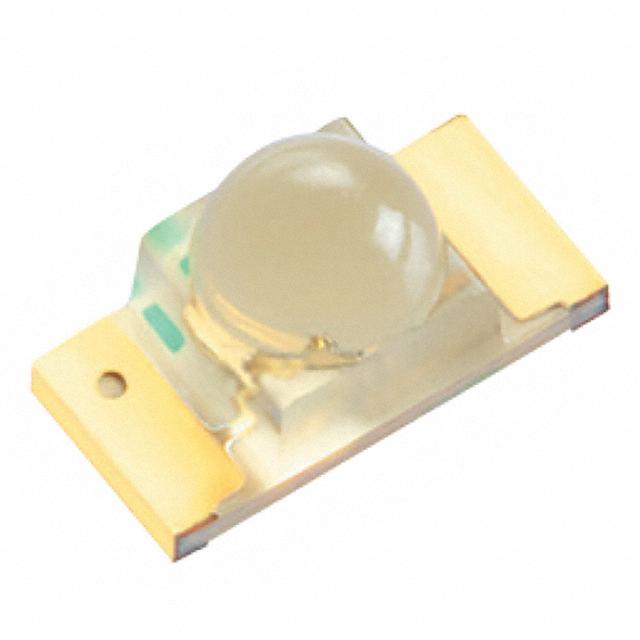

SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.7mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
0
29215 in stock
SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.8mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
0
7379 in stock
SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 1.6mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 35°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
0
1838 in stock
SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 1mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 30°
Orientation : Side View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount, Right Angle
Package / Case : 2-SMD, No Lead
0
2147 in stock
SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PX Series
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.8mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
0
760 in stock
SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PX Series
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 1.2mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 60°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
0
372 in stock
SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.8mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
0
2423 in stock
SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PX Series
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.8mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 160°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
0
1176 in stock
SunLED
Manufacturer : SunLED
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PX Series
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 2mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 40°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
0
1691 in stock
