Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

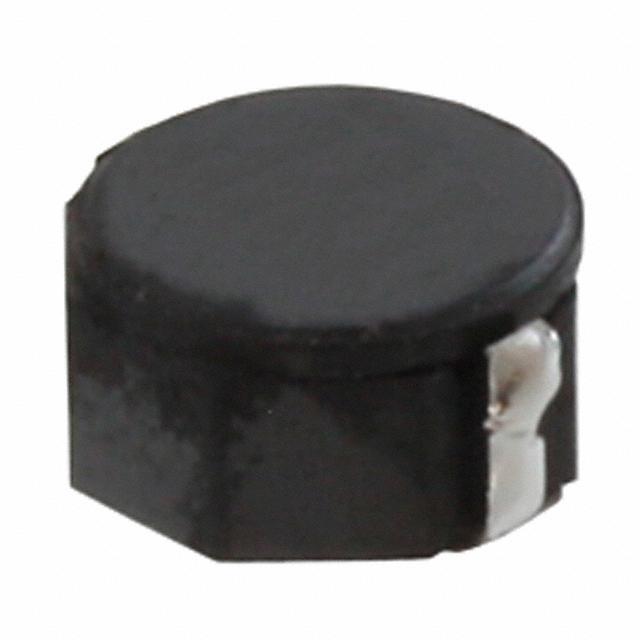

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 4.1A
Current - Saturation : 5.6A
Shielding : Shielded
DC Resistance (DCR) : 22 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3821 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±30%
Current Rating : 3.9A
Current - Saturation : 4.4A
Shielding : Shielded
DC Resistance (DCR) : 25 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1183 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D58/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 4.5A
Current - Saturation : 2.6A
Shielding : Shielded
DC Resistance (DCR) : 25.6 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
0
723 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D58/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±30%
Current Rating : 2.2A
Current - Saturation : 1.2A
Shielding : Shielded
DC Resistance (DCR) : 90.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
0
631 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D58/LD
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 5µH
Tolerance : ±30%
Current Rating : 6A
Current - Saturation : 3.8A
Shielding : Shielded
DC Resistance (DCR) : 17.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
0
184 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D58/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±30%
Current Rating : 1.7A
Current - Saturation : 1A
Shielding : Shielded
DC Resistance (DCR) : 130 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
0
348 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRR105
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : 2.48A
Shielding : Shielded
DC Resistance (DCR) : 47.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max) : 0.189" (4.80mm)
0
133 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRR
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 830mA
Current - Saturation : 440mA
Shielding : Shielded
DC Resistance (DCR) : 315 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.272" L x 0.272" W (6.90mm x 6.90mm)
Height - Seated (Max) : 0.189" (4.80mm)
0
3937 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRR
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±20%
Current Rating : 450mA
Current - Saturation : 250mA
Shielding : Shielded
DC Resistance (DCR) : 1.05 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.272" L x 0.272" W (6.90mm x 6.90mm)
Height - Seated (Max) : 0.189" (4.80mm)
0
1941 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CEP125
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 7.6A
Current - Saturation : 5A
Shielding : Shielded
DC Resistance (DCR) : 13.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) : 0.220" (5.60mm)
0
1678 in stock

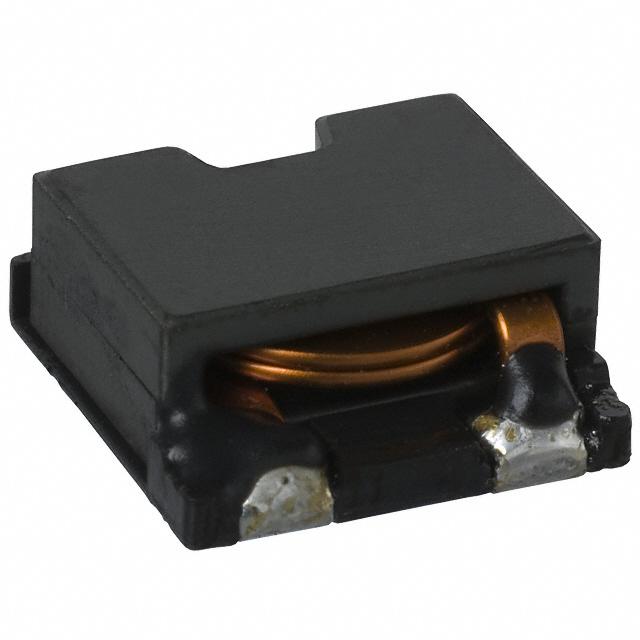

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CEP125
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±20%
Current Rating : 16.5A
Current - Saturation : 20A
Shielding : Shielded
DC Resistance (DCR) : 2.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) : 0.220" (5.60mm)
0
1968 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CEP125
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±20%
Current Rating : 16.5A
Current - Saturation : 20A
Shielding : Shielded
DC Resistance (DCR) : 2.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) : 0.220" (5.60mm)
0
1853 in stock
