Sullins Connector Solutions

- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.

Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.


Part Number

Manufacturer

Description

Unit Price

In Stock

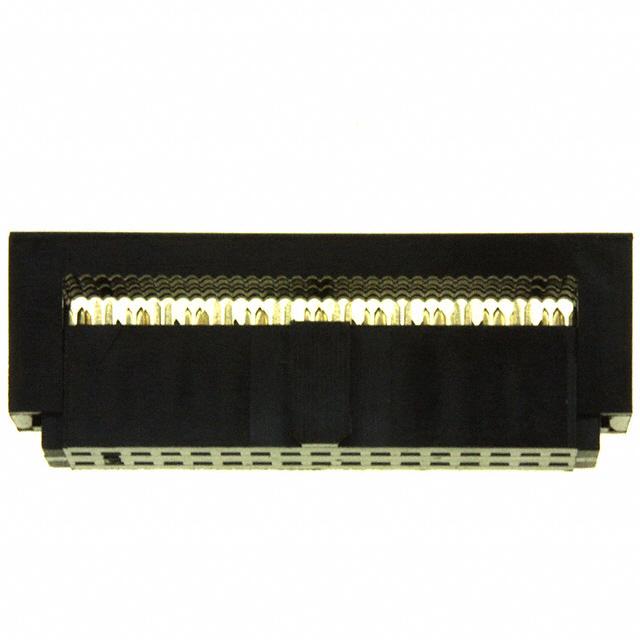

SFH41-PPPB-D17-ID-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH41
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Number of Positions : 34
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : IDC
Wire Type : Ribbon Cable
Wire Gauge : -
Features : Feed Through, Polarizing Key
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

651 in stock

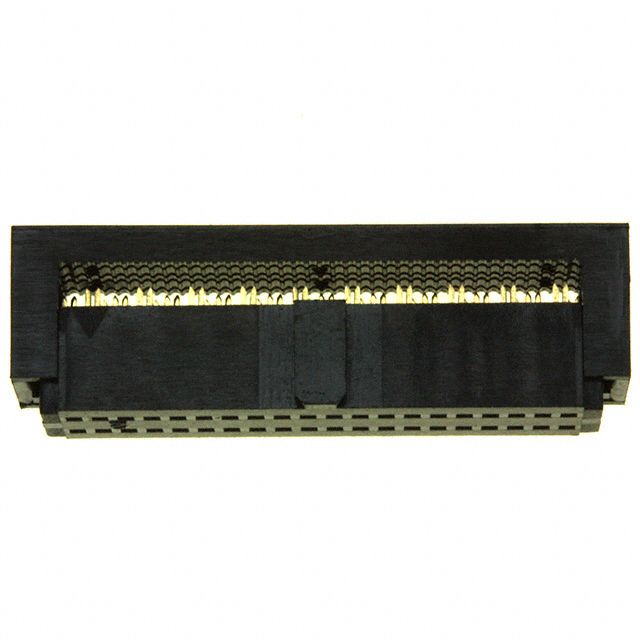

SFH41-PPPB-D20-ID-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH41
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Number of Positions : 40
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : IDC
Wire Type : Ribbon Cable
Wire Gauge : -
Features : Feed Through, Polarizing Key
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

1129 in stock

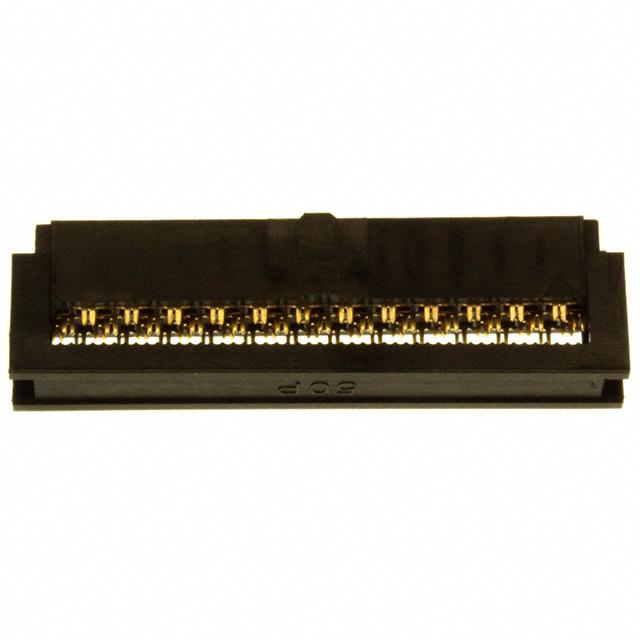

SFH41-PPPB-D25-ID-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH41
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Number of Positions : 50
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : IDC
Wire Type : Ribbon Cable
Wire Gauge : -
Features : Feed Through, Polarizing Key
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

1228 in stock

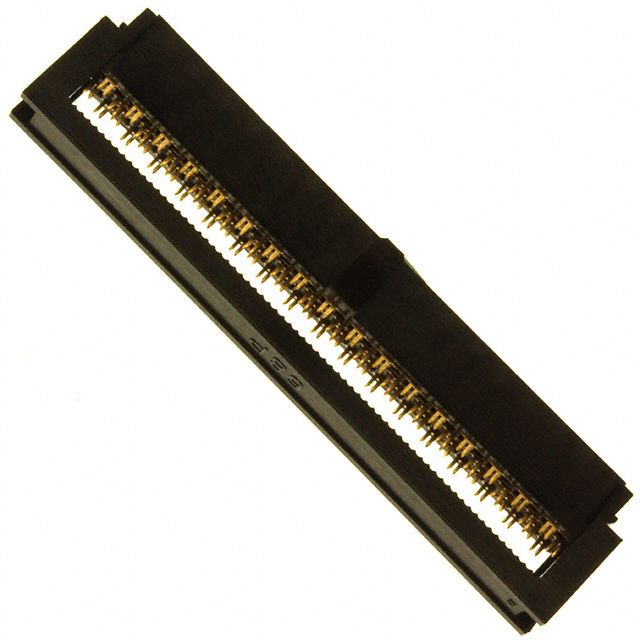

SFH41-PPPB-D34-ID-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH41
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Number of Positions : 68
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : IDC
Wire Type : Ribbon Cable
Wire Gauge : -
Features : Feed Through, Polarizing Key
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

485 in stock

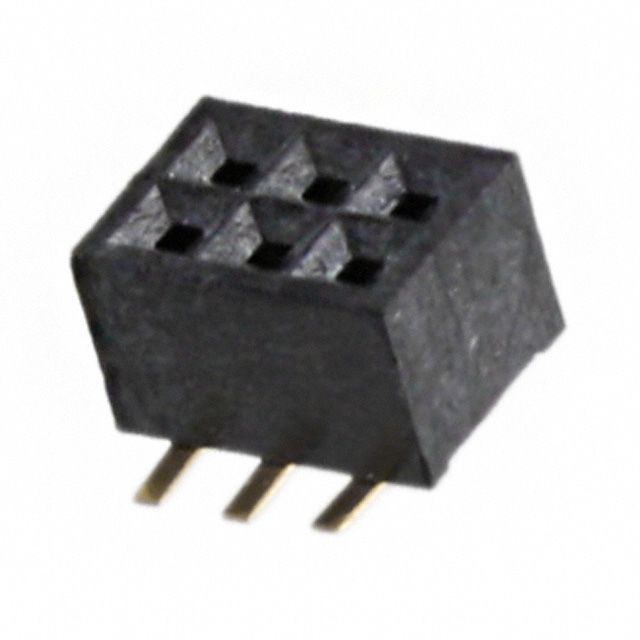

SFM210-LPSE-D03-SP-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header, Top or Bottom Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 1A
Voltage Rating : -

19759 in stock

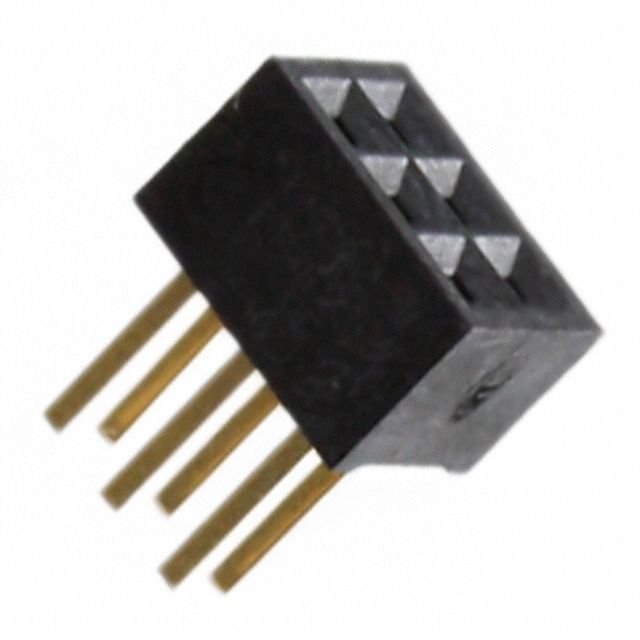

SFM210-LPSE-D03-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.083" (2.10mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

4490 in stock

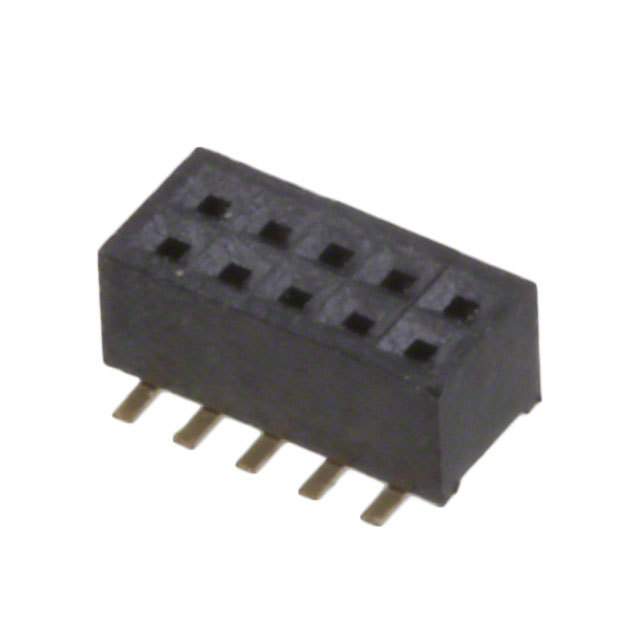

SFM210-LPSE-D05-SP-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header, Top or Bottom Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 1A
Voltage Rating : -

661 in stock

SFM210-LPSE-D05-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.083" (2.10mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

2914 in stock

SFM210-LPSE-D07-SM-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header, Top or Bottom Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

1000 in stock

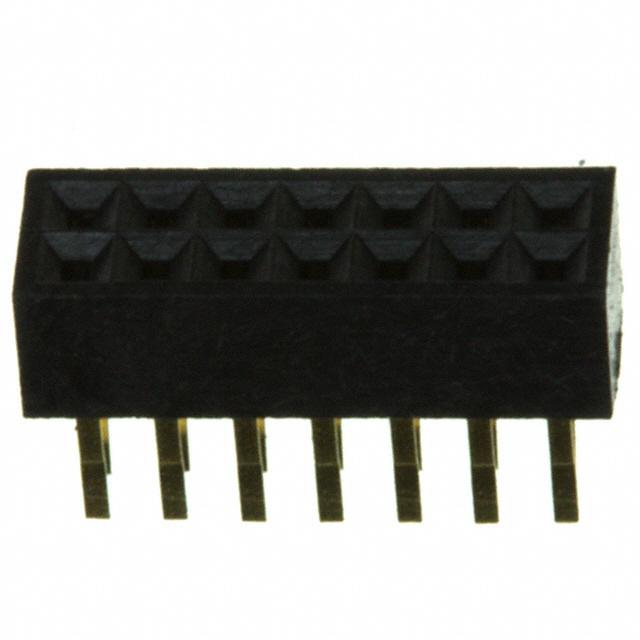

SFM210-LPSE-D07-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.083" (2.10mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

444 in stock

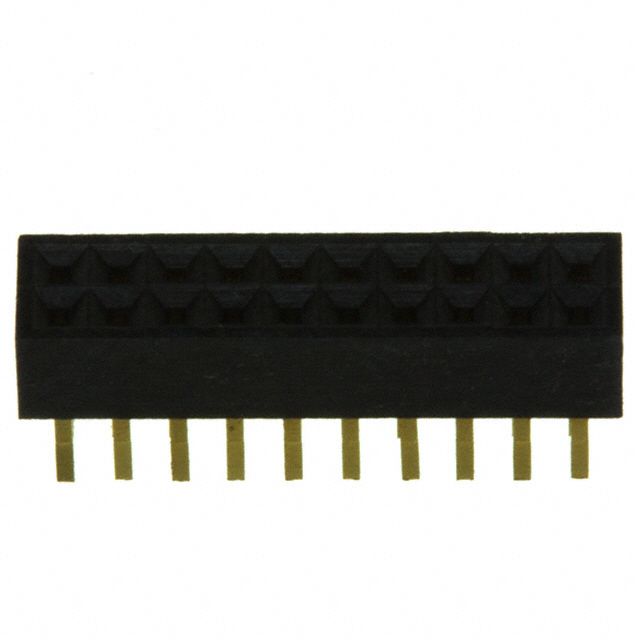

SFM210-LPSE-D10-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.083" (2.10mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

2568 in stock

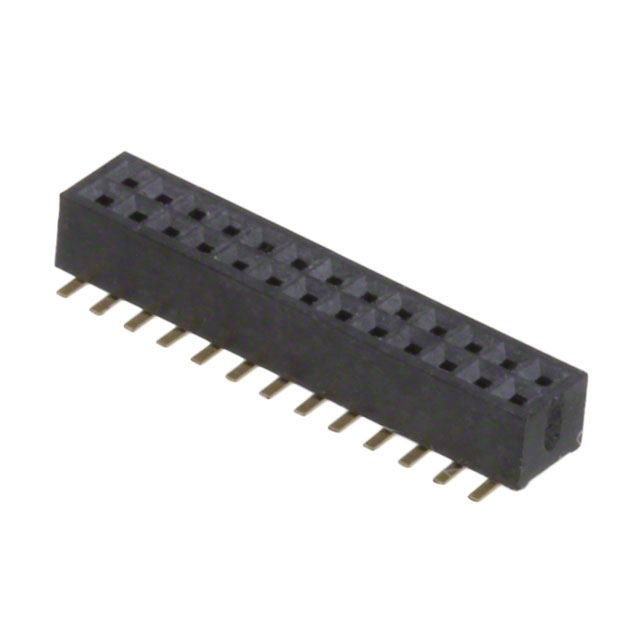

SFM210-LPSE-D13-SP-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header, Top or Bottom Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 26
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 1A
Voltage Rating : -

52 in stock
