Sullins Connector Solutions

- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.

Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.


Part Number

Manufacturer

Description

Unit Price

In Stock

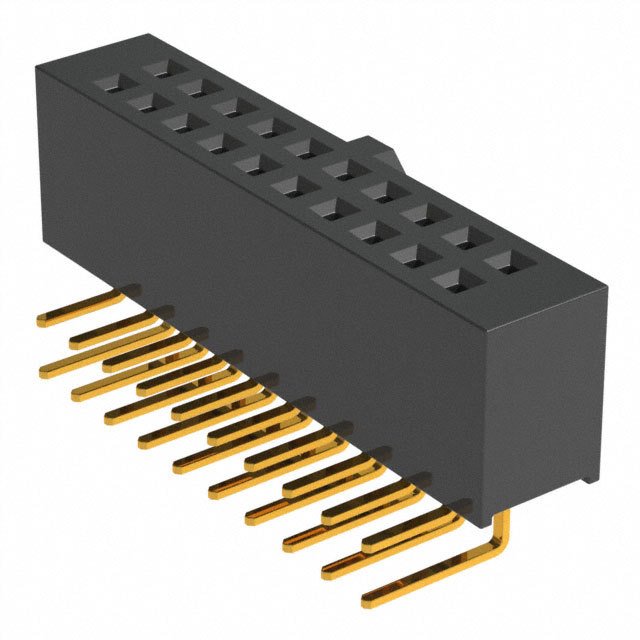

SFH11-PBPC-D10-RA-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.236" (6.00mm)
Contact Length - Post : 0.106" (2.69mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

2754 in stock

SFH11-PBPC-D10-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

14851 in stock

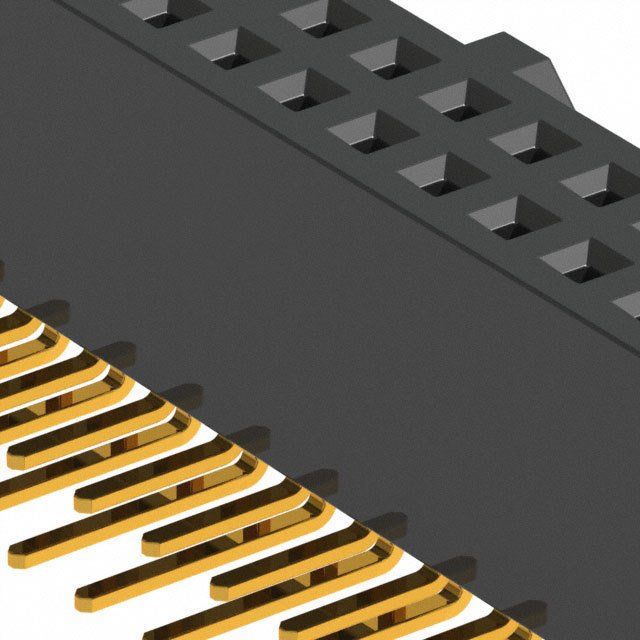

SFH11-PBPC-D13-RA-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 26
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.236" (6.00mm)
Contact Length - Post : 0.106" (2.69mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

2409 in stock

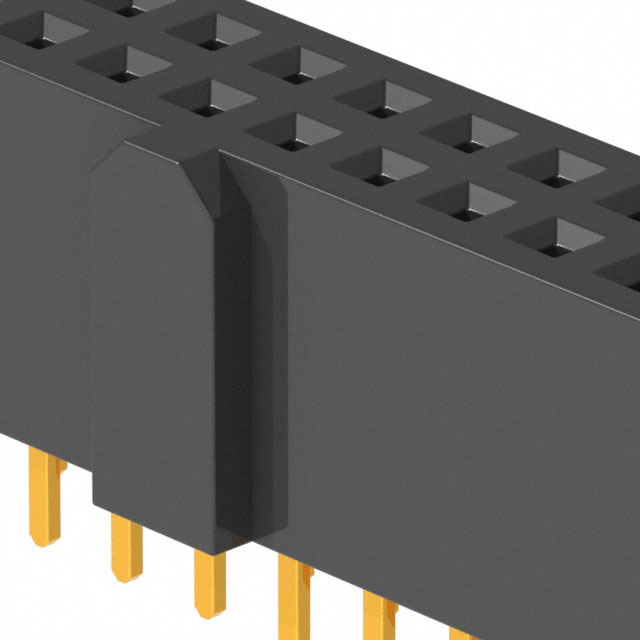

SFH11-PBPC-D13-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 26
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

4809 in stock

SFH11-PBPC-D17-RA-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 34
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.236" (6.00mm)
Contact Length - Post : 0.106" (2.69mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

3051 in stock

SFH11-PBPC-D17-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 34
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

4273 in stock

SFH11-PBPC-D20-RA-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.236" (6.00mm)
Contact Length - Post : 0.106" (2.69mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

1065 in stock

SFH11-PBPC-D20-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

12961 in stock

SFH11-PBPC-D25-RA-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.236" (6.00mm)
Contact Length - Post : 0.106" (2.69mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

2465 in stock

SFH11-PBPC-D25-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH11
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Polarizing Key
Current Rating : 3A
Voltage Rating : -

8101 in stock

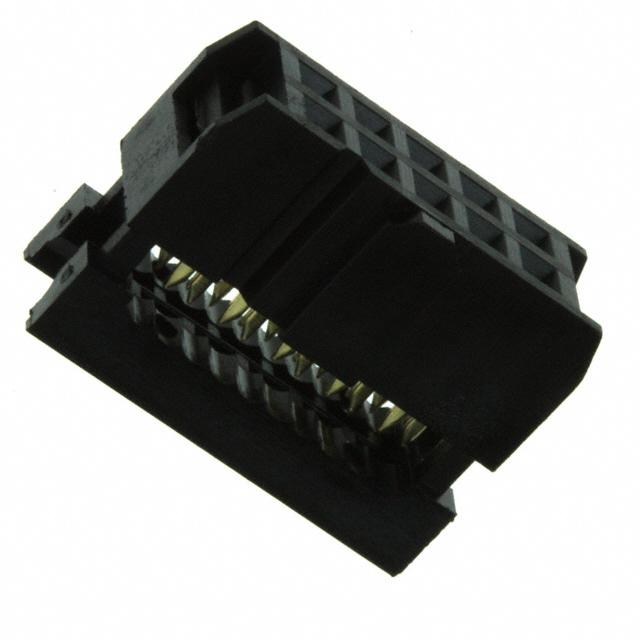

SFH210-PPPC-D05-ID-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Number of Positions : 10
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : IDC
Wire Type : Ribbon Cable
Wire Gauge : 28 AWG
Features : Feed Through, Polarizing Key
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

10484 in stock

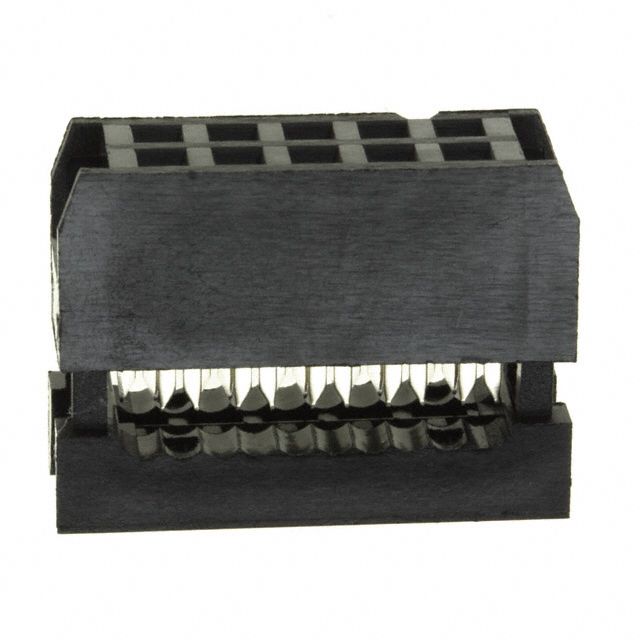

SFH210-PPPC-D05-ID-BK-M181

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SFH210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Number of Positions : 10
Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : IDC
Wire Type : Ribbon Cable
Wire Gauge : 28 AWG
Features : Feed Through
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

172 in stock
