Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : MS
Part Status : Active
Coil Type : Non Latching
Coil Current : 13.4mA
Coil Voltage : 5VDC
Contact Form : DPST-NO (2 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.5 VDC
Operate Time : 0.5ms
Release Time : 0.35ms
Features : Diode
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
145 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Obsolete

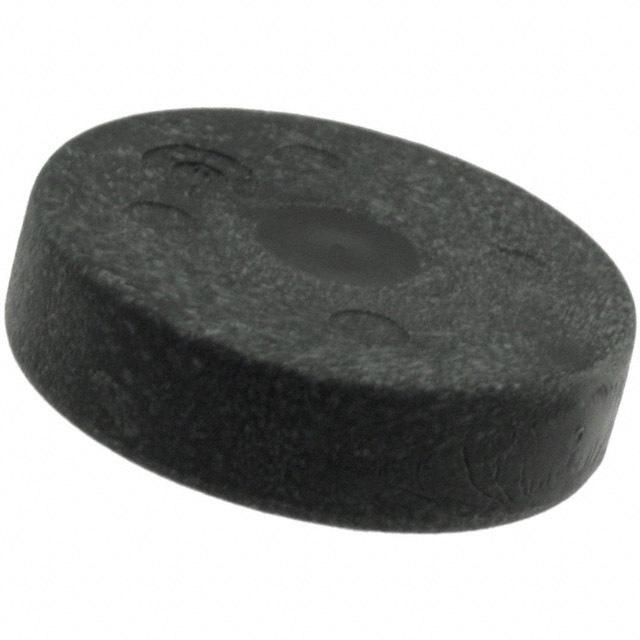

Accessory Type : Magnetic Float
For Use With/Related Products : Reed Sensors
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active

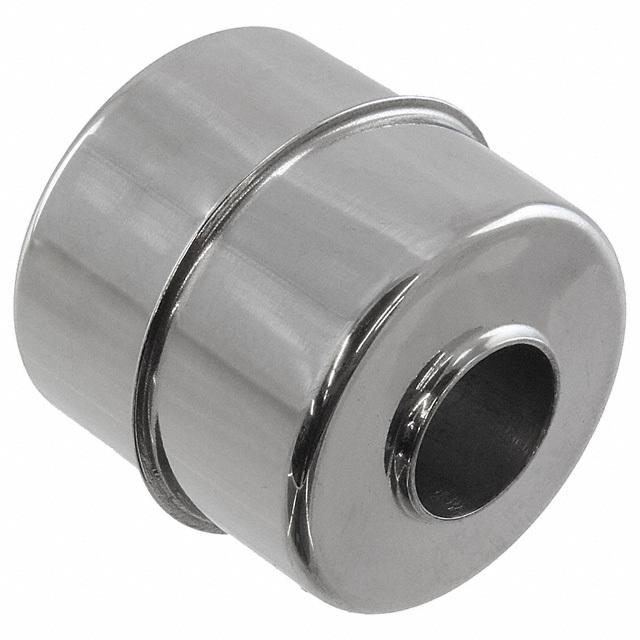

Accessory Type : Magnetic Float
For Use With/Related Products : Reed Sensors
0
3099 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active

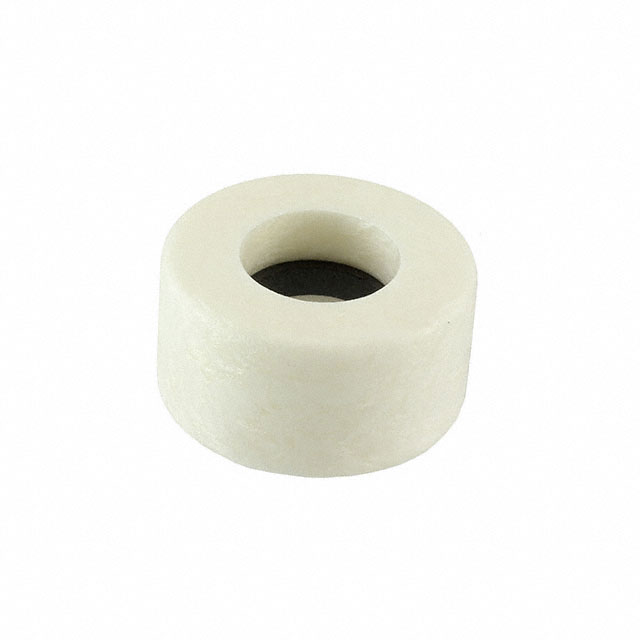

Accessory Type : Magnetic Float
For Use With/Related Products : Level Sensors
0
236 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active

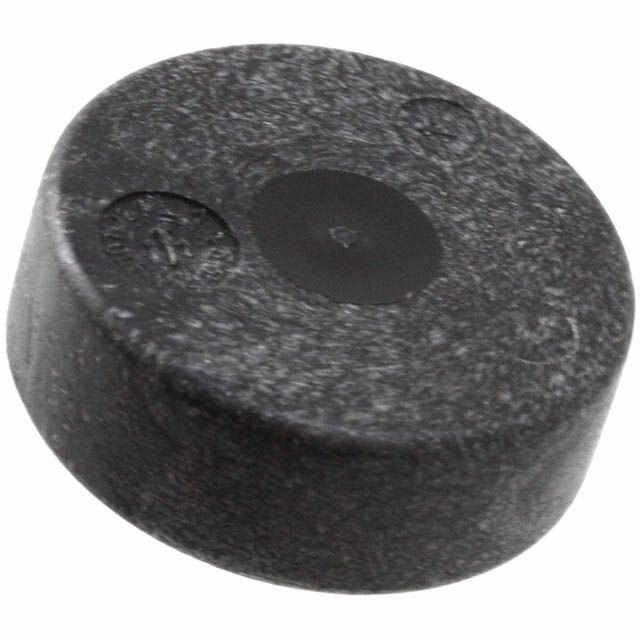

Accessory Type : Magnetic Float
For Use With/Related Products : Sensors LS02-S, LS05
0
4 in stock

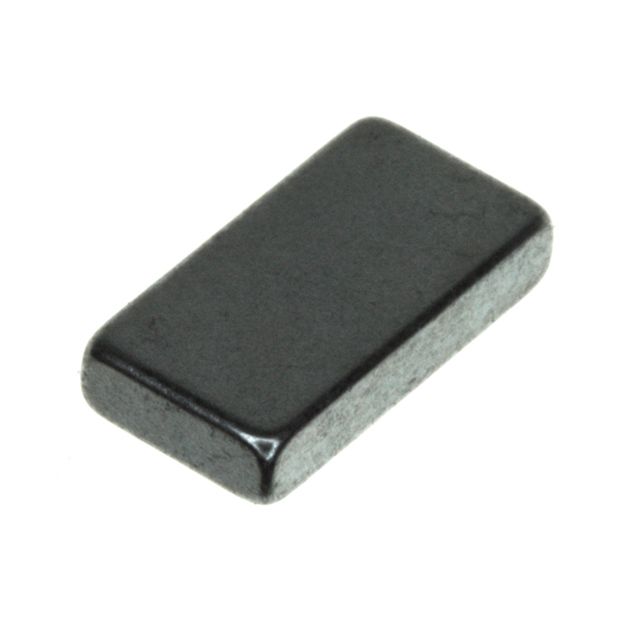

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Shape : Rectangular
Magnetization : Axial
Material : Neodymium Iron Boron (NdFeB)
Finish : -
Grade : -
Gauss Strength : -
Size : 0.394" L x 0.200" W x 0.070" H (10.0mm x 5.00mm x 1.90mm)
Operating Temperature : 160°C (TA)
0
8060 in stock

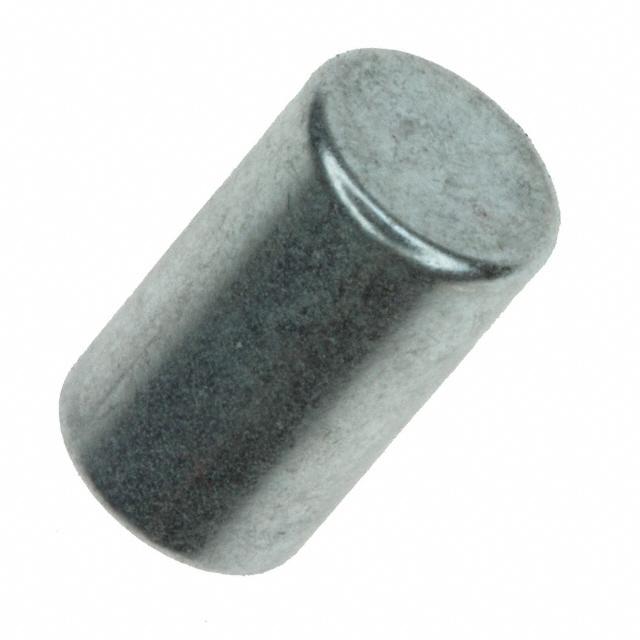

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Shape : Cylindrical
Magnetization : Axial
Material : Neodymium Iron Boron (NdFeB)
Finish : -
Grade : -
Gauss Strength : -
Size : 0.236" Dia x 0.394" H (6.00mm x 10.0mm)
Operating Temperature : 160°C (TA)
0
1709 in stock

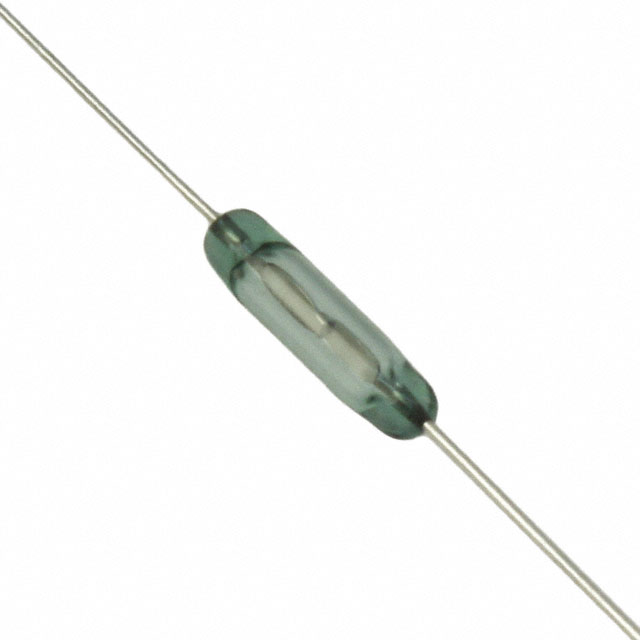

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 24V
Voltage - Switching DC : 24V
Power - Rated : 1VA
Operate Time : 0.3ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.406" (35.70mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.2pF
Current - Carry : 300mA (AC/DC)
0
5338 in stock

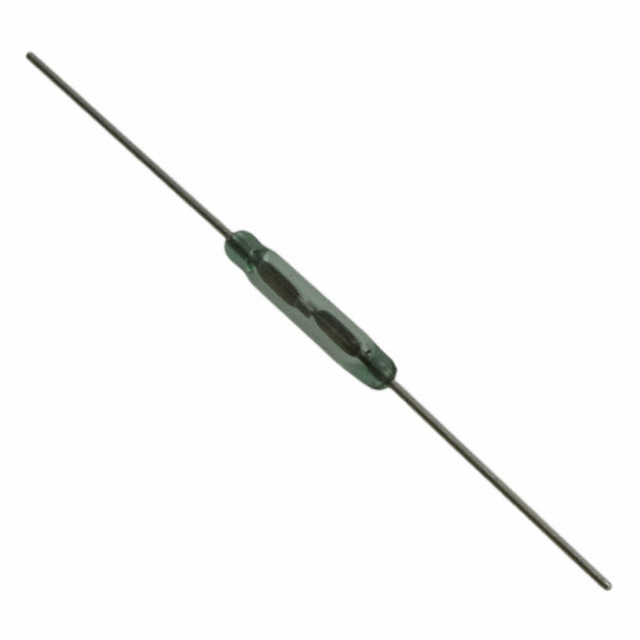

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 24V
Voltage - Switching DC : 24V
Power - Rated : 1VA
Operate Time : 0.3ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.406" (35.70mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.2pF
Current - Carry : 300mA (AC/DC)
0
100 in stock

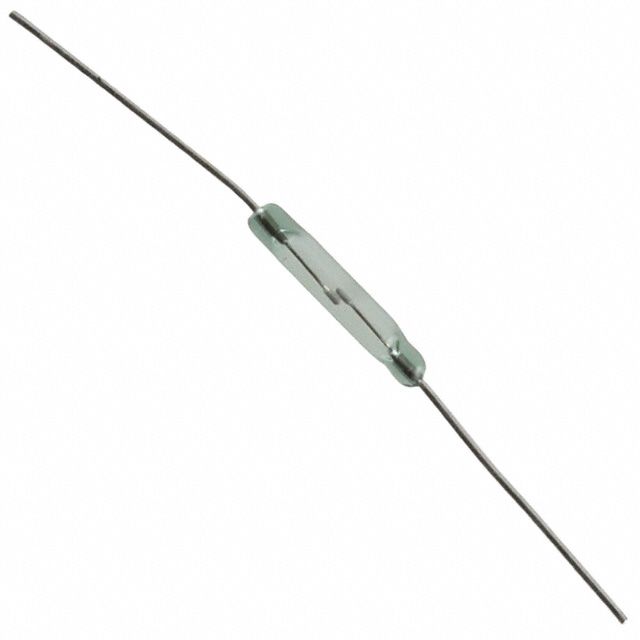

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 30AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 24V
Voltage - Switching DC : 24V
Power - Rated : 1VA
Operate Time : 0.3ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.406" (35.70mm)
Size - Body : 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.2pF
Current - Carry : 300mA (AC/DC)
0
680 in stock

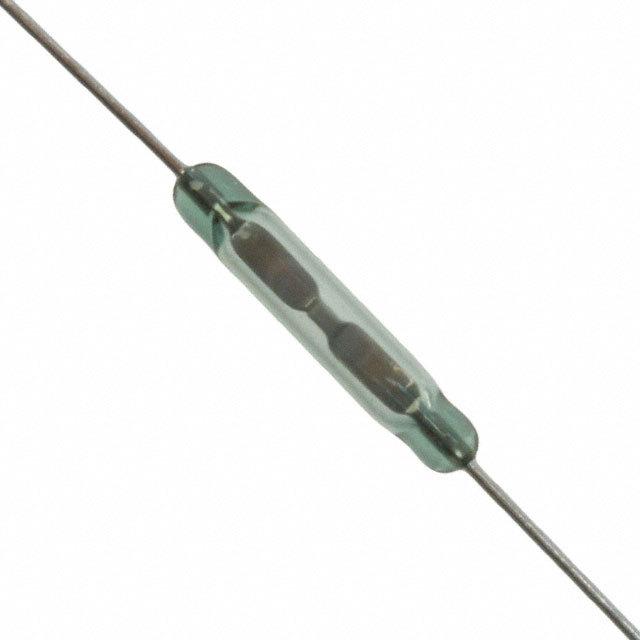

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 24V
Voltage - Switching DC : 24V
Power - Rated : 1VA
Operate Time : 0.3ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.409" (35.80mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.4pF
Current - Carry : 300mA (AC/DC)
0
1717 in stock

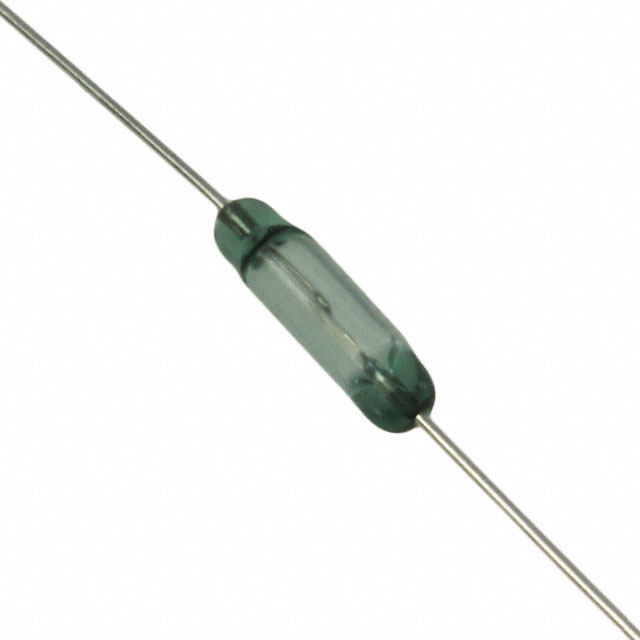

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 24V
Voltage - Switching DC : 24V
Power - Rated : 1VA
Operate Time : 0.3ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.409" (35.80mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.4pF
Current - Carry : 300mA (AC/DC)
0
2033 in stock
