SMC Diode Solutions
- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.
SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.
SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.
Part Number
Manufacturer
Description
Unit Price
In Stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 1.07V @ 240A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 6mA @ 150V
Capacitance @ Vr, F : 6000pF @ 5V, 1MHz
Mounting Type : Chassis Mount
Package / Case : HALF-PAK
Supplier Device Package : PRM1-1 (Half Pak Module)
Operating Temperature - Junction : -55°C ~ 175°C
0
63 in stock

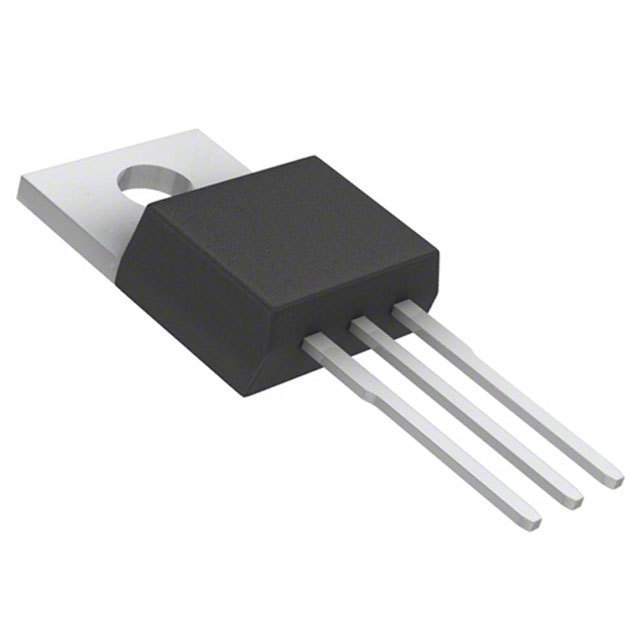

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 710mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 45V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
475 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 18V
Voltage - Breakdown (Min) : 20V
Voltage - Clamping (Max) @ Ipp : 29.2V
Current - Peak Pulse (10/1000µs) : 102.8A
Power - Peak Pulse : 3000W (3kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2990 in stock

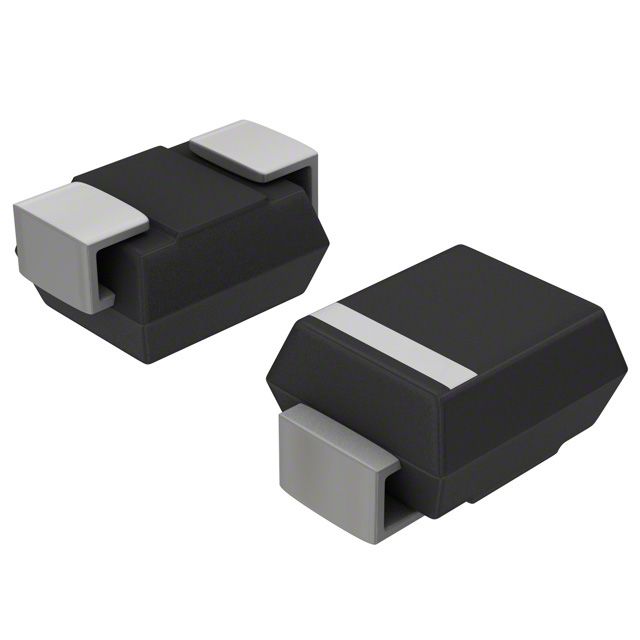

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 36.5V
Voltage - Breakdown (Min) : 40V
Voltage - Clamping (Max) @ Ipp : 58.1V
Current - Peak Pulse (10/1000µs) : 51.6A
Power - Peak Pulse : 3000W (3kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
0
8330 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 43V
Voltage - Breakdown (Min) : 47.8V
Voltage - Clamping (Max) @ Ipp : 69.4V
Current - Peak Pulse (10/1000µs) : 43.2A
Power - Peak Pulse : 3000W (3kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2945 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 90V
Voltage - Breakdown (Min) : 100V
Voltage - Clamping (Max) @ Ipp : 146V
Current - Peak Pulse (10/1000µs) : 20.6A
Power - Peak Pulse : 3000W (3kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2975 in stock

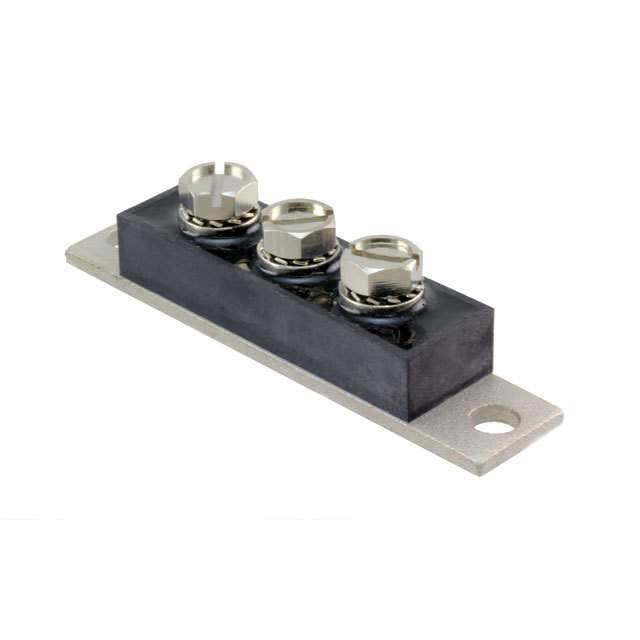

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 150A
Voltage - Forward (Vf) (Max) @ If : 610mV @ 150A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 40V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : PRM4
Supplier Device Package : PRM4 (Isolated)
0
2 in stock

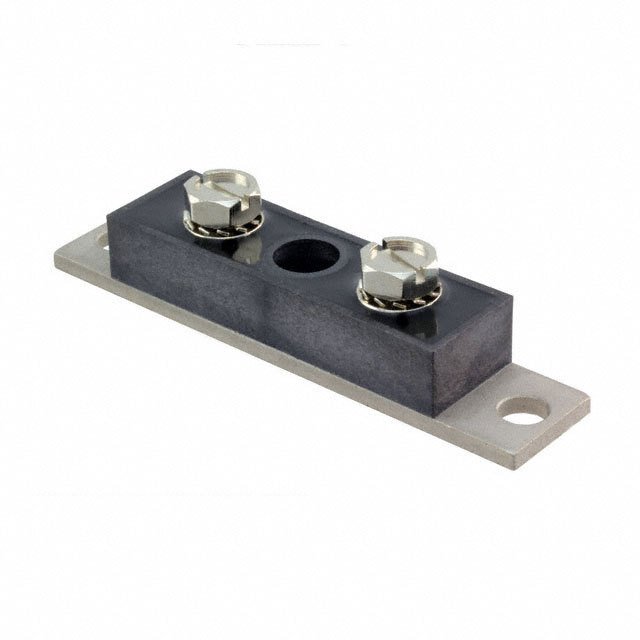

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 150A
Voltage - Forward (Vf) (Max) @ If : 690mV @ 150A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10mA @ 45V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Chassis Mount
Package / Case : PRM4
Supplier Device Package : PRM4 (Non-Isolated)
0
6 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 680mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 230pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -55°C ~ 150°C
0
28754 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 580mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : 180pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -55°C ~ 150°C
0
4388 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 790mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 115pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -55°C ~ 175°C
0
27292 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 860mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 150V
Capacitance @ Vr, F : 110pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -55°C ~ 175°C
0
2816 in stock
