Schaffner EMC, Inc.
- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.
With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.
With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.
Part Number
Manufacturer
Description
Unit Price
In Stock

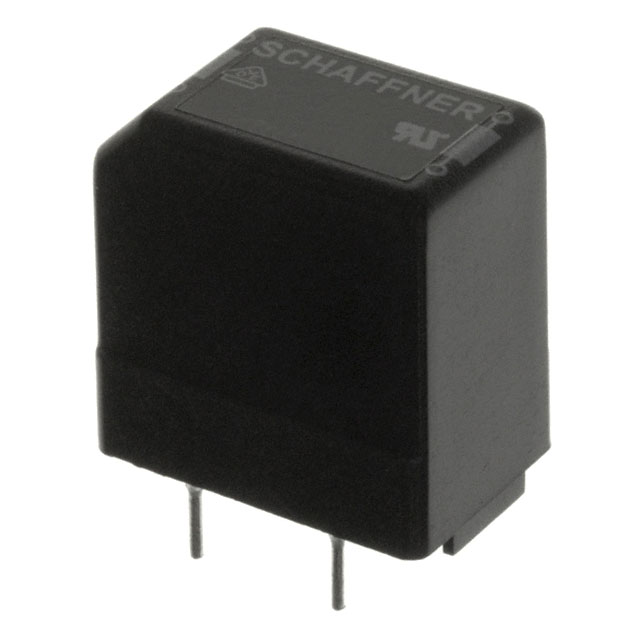

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 370 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
2815 in stock

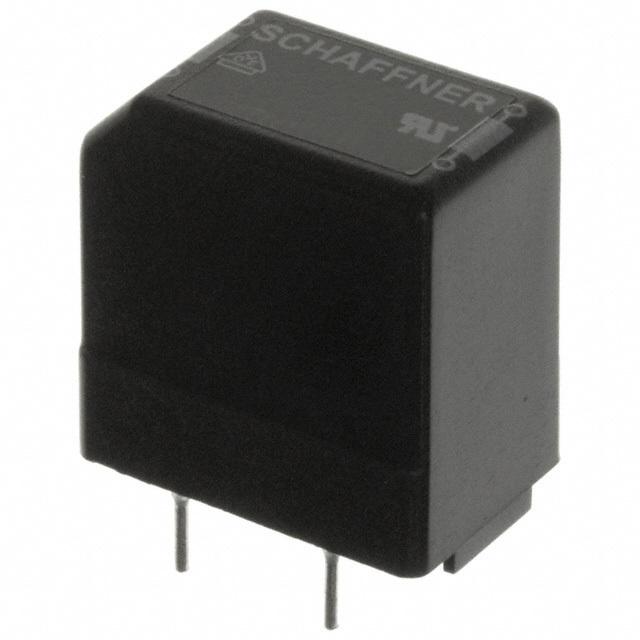

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 1kHz
Current Rating (Max) : 2.5A (Typ)
DC Resistance (DCR) (Max) : 72 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
95 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 63 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
898 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.2mH @ 10kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 102 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 67 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 67 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
459 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.2mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 100 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
121 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 1kHz
Current Rating (Max) : 3A (Typ)
DC Resistance (DCR) (Max) : 55 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 10kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 52 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
1349 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 1kHz
Current Rating (Max) : 4A (Typ)
DC Resistance (DCR) (Max) : 35 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
32 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 34 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
9147 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 790 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin
0
500 in stock
