Samsung Electro-Mechanics
- Samsung Electro Mechanics (SEMCO) is a leading supplier of a wide range of high-performance electronics components. Since 1973, SEMCO is driving the edge of miniaturization for increasingly challenged industrial designs of end products without compromising the quality and performance.
Every day SEMCO ships more than 2 billion multilayer ceramic capacitors, polymer tantalum, inductors, beads, filters, resistors, and many other components from its six manufacturing sites. They are committed to expanding their high-class manufacturing sites and in-house material innovation to serve their customers better. SEMCO offers a wide range of advanced solutions for the growing needs of mobile, automotive, IoT, and industrial applications. SEMCO is an industry leader in material innovation, which is exemplified in the innovative MLCC, power inductors, and RF inductors. SEMCO offers the world’s highest capacitance values in the smallest size.
SEMCO touches your life “passively” to bring convenience and comfort.
Part Number
Manufacturer
Description
Unit Price
In Stock

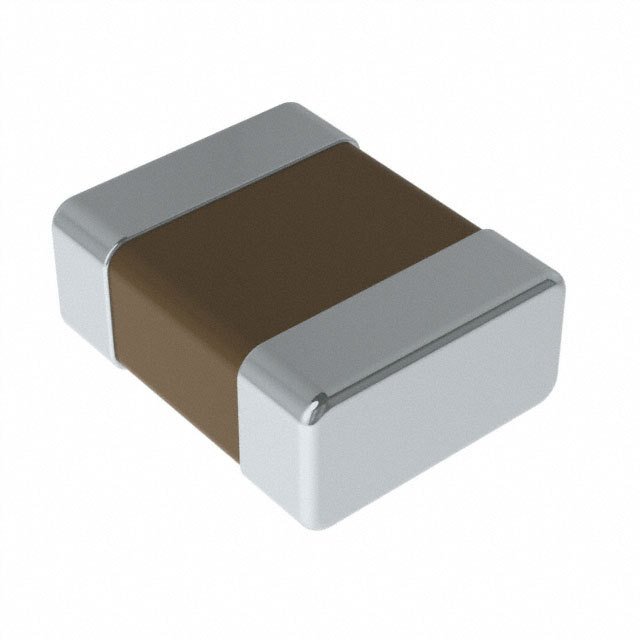

Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 680nH
Tolerance : ±20%
Current Rating : 3.2A
Current - Saturation : 5.1A
Shielding : Unshielded
DC Resistance (DCR) : 39 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0806 (2016 Metric)
Supplier Device Package : 0806 (2016 Metric)
Size / Dimension : 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
100 in stock

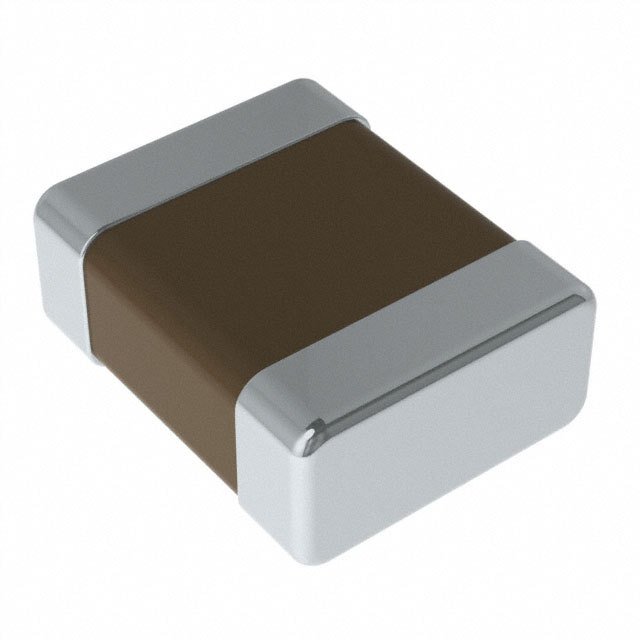

Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 1.4A
Current - Saturation : 2.2A
Shielding : Shielded
DC Resistance (DCR) : 150 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008 (2520 Metric)
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
100 in stock
Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 1µH
Tolerance : ±20%
Current Rating : 3.3A
Current - Saturation : 3.7A
Shielding : Unshielded
DC Resistance (DCR) : 40 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008 (2520 Metric)
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
828 in stock
Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 1.5µH
Tolerance : ±20%
Current Rating : 3.2A
Current - Saturation : 3.1A
Shielding : Unshielded
DC Resistance (DCR) : 54 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008 (2520 Metric)
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
8728 in stock
Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 2.2A
Current - Saturation : 2.6A
Shielding : Unshielded
DC Resistance (DCR) : 93 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008 (2520 Metric)
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
16967 in stock
Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 1.4A
Current - Saturation : 1.7A
Shielding : Unshielded
DC Resistance (DCR) : 216 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008 (2520 Metric)
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
3638 in stock
Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 470nH
Tolerance : ±20%
Current Rating : 5.9A
Current - Saturation : 5.5A
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008 (2520 Metric)
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
100 in stock
Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : -
Current - Saturation : -
Shielding : -
DC Resistance (DCR) : -
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008 (2520 Metric)
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock

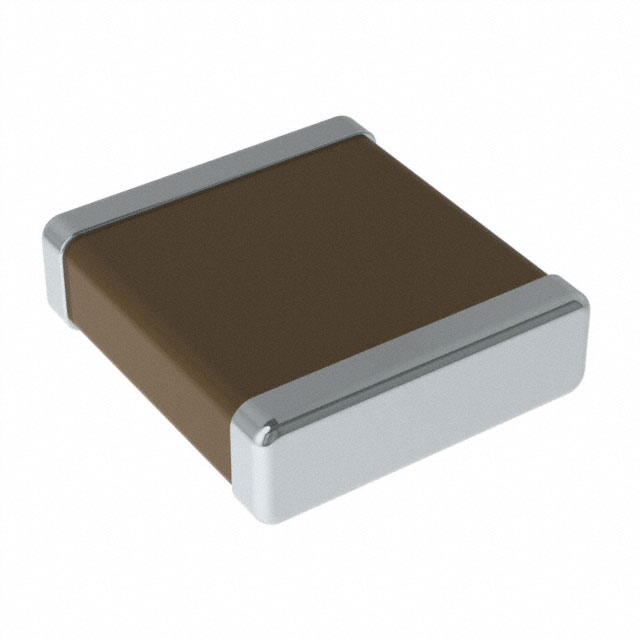

Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CIGW
Part Status : Active
Type : Wirewound
Material - Core : Metal Composite
Inductance : 470nH
Tolerance : ±20%
Current Rating : 6A
Current - Saturation : 9.4A
Shielding : Unshielded
DC Resistance (DCR) : 17 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1616 (4040 Metric)
Supplier Device Package : 1616
Size / Dimension : 0.161" L x 0.150" W (4.10mm x 3.80mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Series : CIH03Q
Part Status : Active
Type : Multilayer
Material - Core : -
Inductance : 10nH
Tolerance : ±5%
Current Rating : 170mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 730 mOhm Max
Q @ Freq : 13 @ 500MHz
Frequency - Self Resonant : 3.8GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : -
Size / Dimension : 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) : -
0
36757 in stock

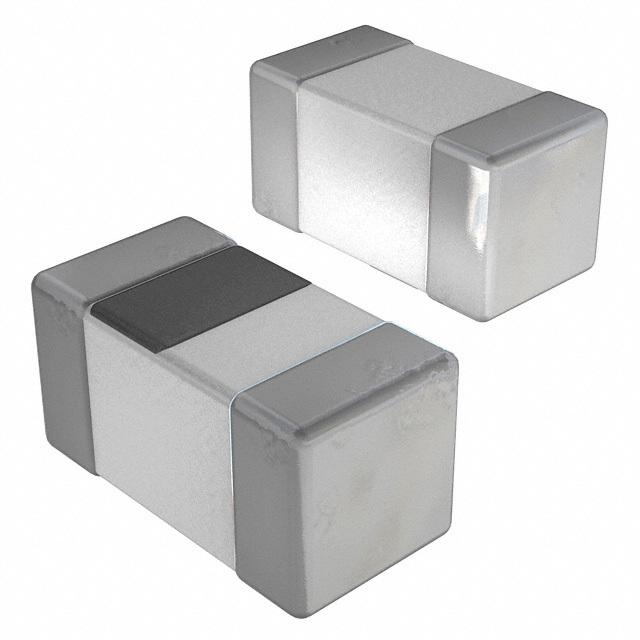

Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Series : CIH03Q
Part Status : Active
Type : Multilayer
Material - Core : -
Inductance : 15nH
Tolerance : ±5%
Current Rating : 150mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 890 mOhm Max
Q @ Freq : 12 @ 500MHz
Frequency - Self Resonant : 2.6GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : -
Size / Dimension : 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) : -
0
9890 in stock
Samsung Electro-Mechanics
Manufacturer : Samsung Electro-Mechanics
Packaging : Cut Tape (CT)
Series : CIH03Q
Part Status : Active
Type : Multilayer
Material - Core : -
Inductance : 18nH
Tolerance : ±5%
Current Rating : 140mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.05 Ohm Max
Q @ Freq : 11 @ 500MHz
Frequency - Self Resonant : 2.3GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 500MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : -
Size / Dimension : 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) : -
0
3040 in stock
