Rubycon
- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.
Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.
Rubycon: Quality / Reliability / Innovation
Part Number
Manufacturer
Description
Unit Price
In Stock

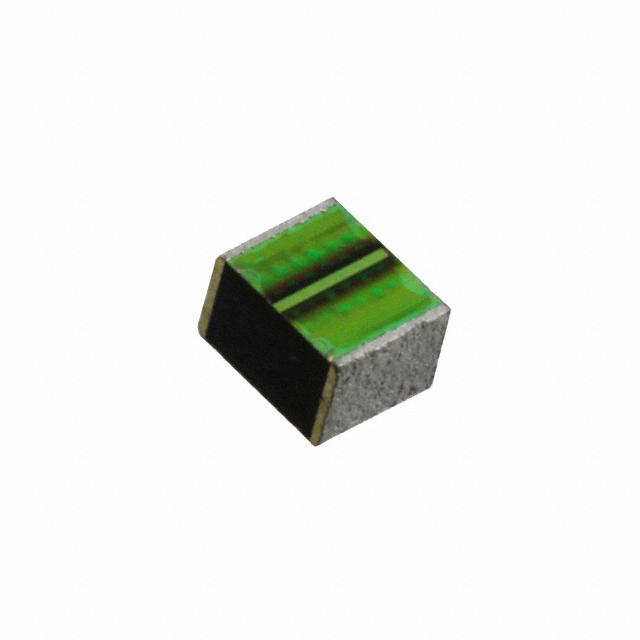

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 63V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
190 in stock

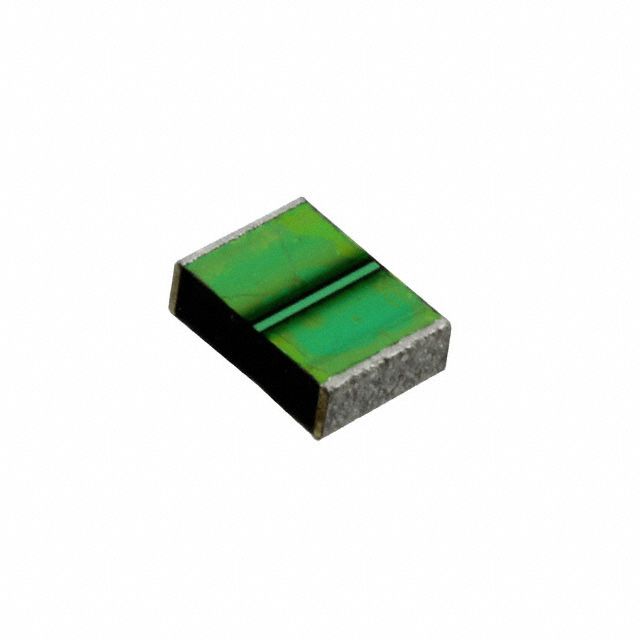

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 63V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.110" (2.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
186 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 120 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1999 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1788 in stock

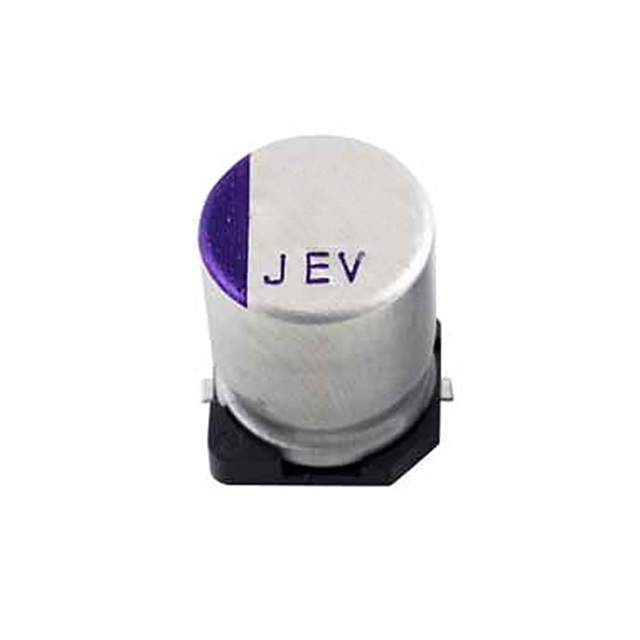

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 85mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
485 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 90mA @ 120Hz
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
126 in stock

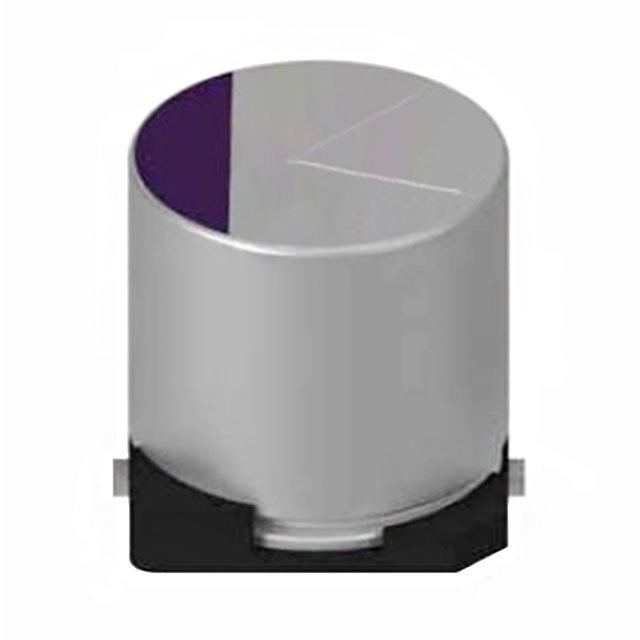

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 120 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1960 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
320 in stock

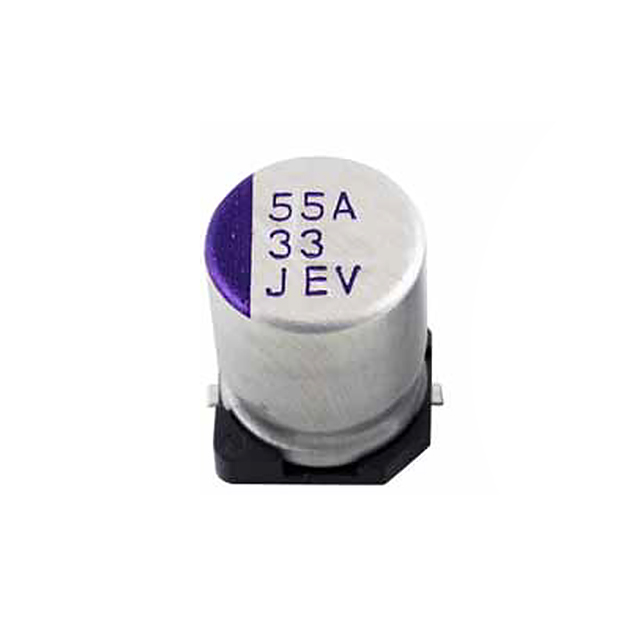

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 55mA @ 120Hz
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
879 in stock

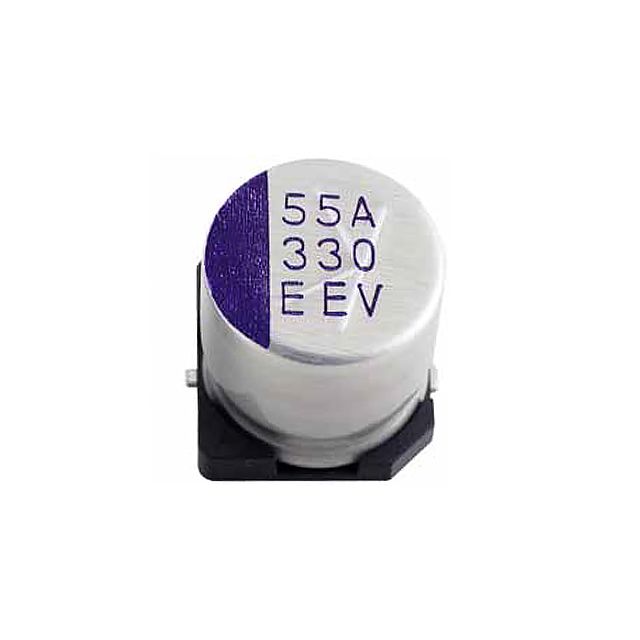

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 70mA @ 120Hz
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1788 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PZA
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 90mA @ 120Hz
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
854 in stock

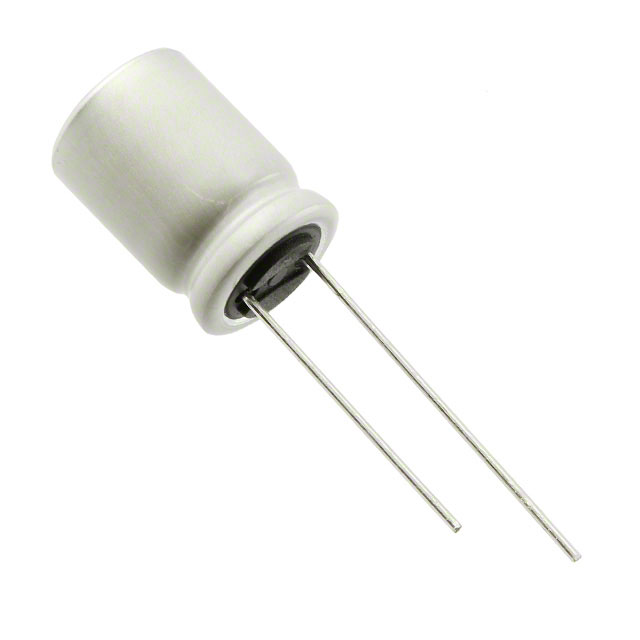

Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PZA
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 29 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 130mA @ 120Hz
Ripple Current @ High Frequency : 2.6A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
608 in stock
