Pulse Electronics Corporation

- Pulse Electronics is the electronic components partner that helps customers build the next great product by providing the needed technical solutions. Pulse has a long operating history of innovation in magnetics, antennas and connectors, as well as the ability to ramp quickly into high-quality, high-volume production. The Company serves the wireless and wireline communications, power management, military/aerospace and automotive industries. Previously, the holding and operating companies were known as Technitrol, Inc. and Pulse Engineering, respectively. Pulse is a participating member of IEEE, ATIS, ETSI, HDMI, the DSL Forum, CommNexus, and MoCA.

Part Number
Manufacturer
Description
Unit Price
In Stock

23Z106SMNL-T 23Z106SMNL-T

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Filter Type : Signal Line
Number of Lines : 6
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.450" L x 0.265" W (11.43mm x 6.73mm)
Height (Max) : 0.220" (5.59mm)
Package / Case : 16-SOIC (0.265", 6.73mm Width)
0
100 in stock

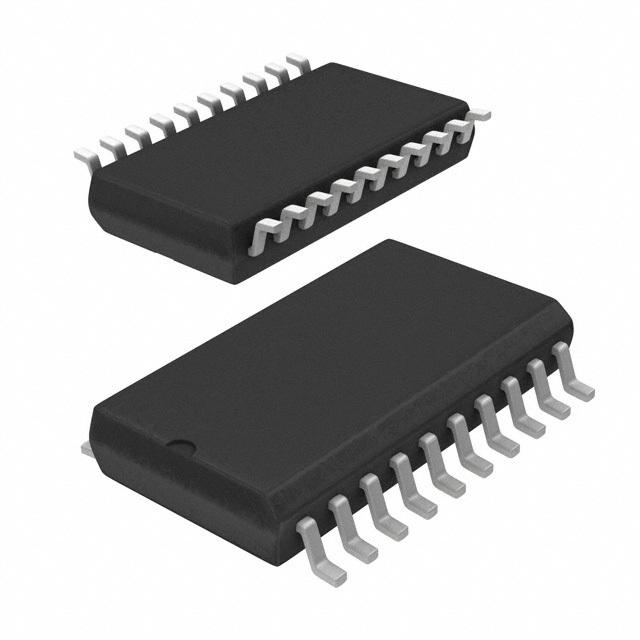

23Z109SMNL 23Z109SMNL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Signal Line
Number of Lines : 10
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.295" W (15.24mm x 7.50mm)
Height (Max) : 0.220" (5.59mm)
Package / Case : 20-SOIC (0.295", 7.50mm Width)
0
100 in stock

23Z109SMNL-T 23Z109SMNL-T

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Signal Line
Number of Lines : 10
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.295" W (15.24mm x 7.50mm)
Height (Max) : 0.220" (5.59mm)
Package / Case : 20-SOIC (0.295", 7.50mm Width)
0
972 in stock

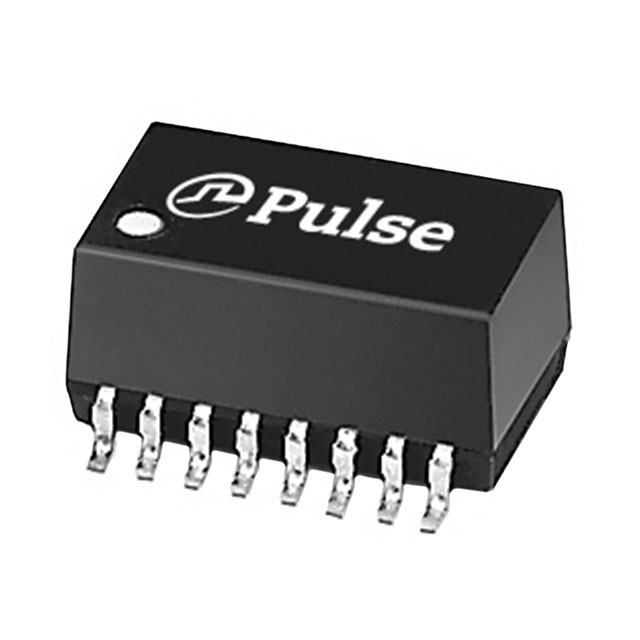

23Z356SMQNLT 23Z356SMQNLT

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 200µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1.414CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Max) : 0.215" (5.46mm)
Operating Temperature : 0°C ~ 70°C
0
900 in stock

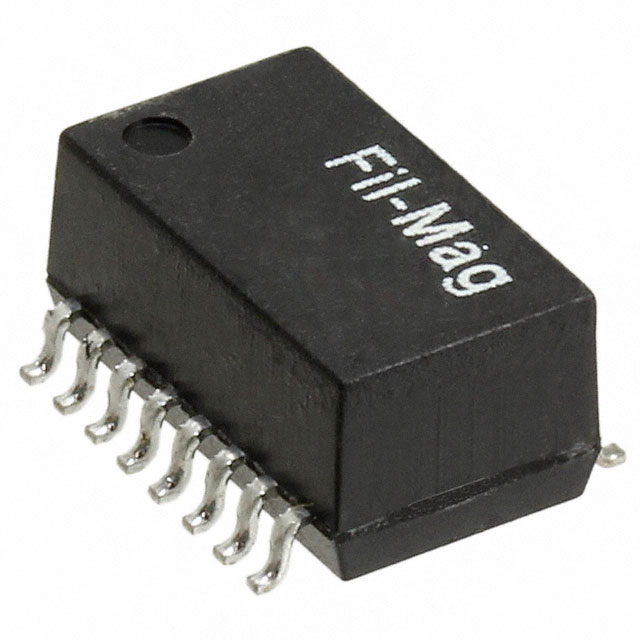

23Z467SM 23Z467SM

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Series : -
Part Status : Active
Transformer Type : LAN 10G Base-T
Inductance : 140µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:2CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Max) : 0.215" (5.46mm)
Operating Temperature : 0°C ~ 70°C
0
455 in stock

23Z467SMNL 23Z467SMNL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 140µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:2CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Max) : 0.215" (5.46mm)
Operating Temperature : 0°C ~ 70°C
0
446 in stock

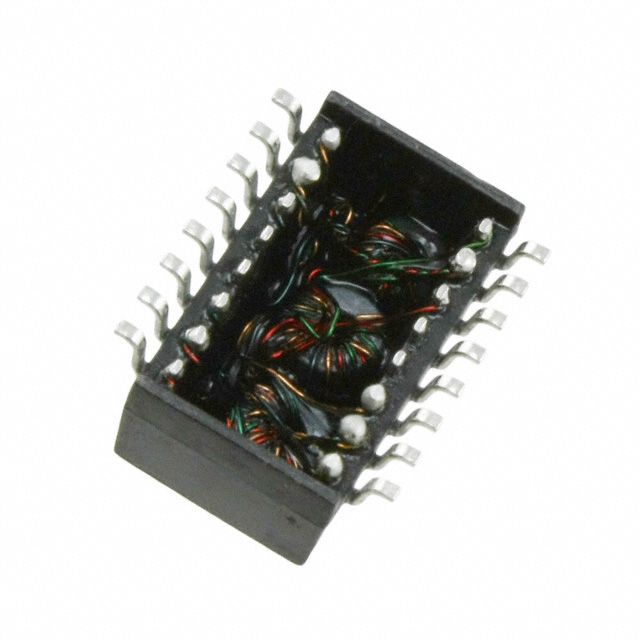

23Z467SMNLT 23Z467SMNLT

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 140µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:2CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Max) : 0.215" (5.46mm)
Operating Temperature : 0°C ~ 70°C
0
3000 in stock

241-3-10A1 241-3-10A1

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Chassis-Tran
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 2.4 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 52.32mm L x 30.23mm W
Height - Seated (Max) : 26.92mm
Voltage - Isolation : 2500Vrms
Weight : 0.25 lb (113.4g)
0
100 in stock

241-3-120A10 241-3-120A10

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Chassis-Tran
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 120V
Current - Output (Max) : 20mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 2.4 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 52.32mm L x 30.23mm W
Height - Seated (Max) : 26.92mm
Voltage - Isolation : 2500Vrms
Weight : 0.25 lb (113.4g)
0
100 in stock

241-3-12A2 241-3-12A2

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Chassis-Tran
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 200mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 2.4 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 52.32mm L x 30.23mm W
Height - Seated (Max) : 26.92mm
Voltage - Isolation : 2500Vrms
Weight : 0.25 lb (113.4g)
0
100 in stock

241-3-16A3 241-3-16A3

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Chassis-Tran
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 16V
Current - Output (Max) : 150mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 2.4 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 52.32mm L x 30.23mm W
Height - Seated (Max) : 26.92mm
Voltage - Isolation : 2500Vrms
Weight : 0.25 lb (113.4g)
0
100 in stock

241-3-20A4 241-3-20A4

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Chassis-Tran
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 20V
Current - Output (Max) : 120mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 2.4 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 52.32mm L x 30.23mm W
Height - Seated (Max) : 26.92mm
Voltage - Isolation : 2500Vrms
Weight : 0.25 lb (113.4g)
0
100 in stock
