Pulse Electronics Corporation

- Pulse Electronics is the electronic components partner that helps customers build the next great product by providing the needed technical solutions. Pulse has a long operating history of innovation in magnetics, antennas and connectors, as well as the ability to ramp quickly into high-quality, high-volume production. The Company serves the wireless and wireline communications, power management, military/aerospace and automotive industries. Previously, the holding and operating companies were known as Technitrol, Inc. and Pulse Engineering, respectively. Pulse is a participating member of IEEE, ATIS, ETSI, HDMI, the DSL Forum, CommNexus, and MoCA.

Part Number
Manufacturer
Description
Unit Price
In Stock

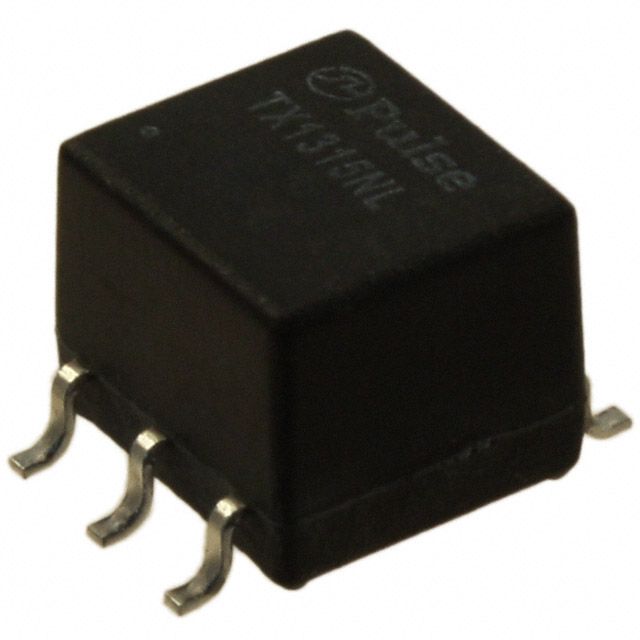

TX1315NLT TX1315NLT

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Single)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Surface Mount
Size / Dimension : 0.300" L x 0.276" W (7.62mm x 7.00mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : -40°C ~ 85°C
0
1898 in stock

TX1341NL TX1341NL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
300 in stock

TX1341NLT TX1341NLT

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
370 in stock

TX1344NLT TX1344NLT

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1, 1:2
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
400 in stock

TX1471NL TX1471NL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
458 in stock

TX1472NL TX1472NL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2.4, 1:1
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
378 in stock

TX1472NLT TX1472NLT

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2.4, 1:1
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
400 in stock

TX1473NL TX1473NL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2, 1:1
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
282 in stock

TX1473NLT TX1473NLT

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2, 1:1
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
800 in stock

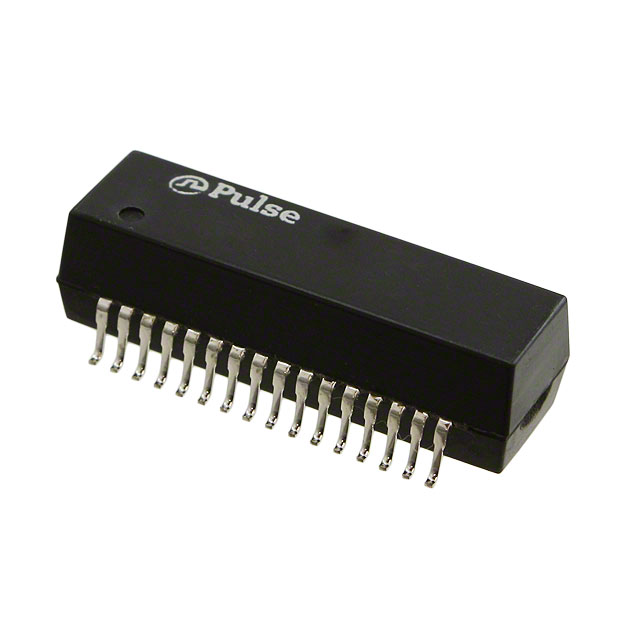

TX1475NL TX1475NL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T1/E1 (Octal)
Inductance : 1.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2, 1:1
Mounting Type : Surface Mount
Size / Dimension : 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) : 0.295" (7.49mm)
Operating Temperature : -40°C ~ 85°C
0
278 in stock

TX3051NL TX3051NL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : T3/E3 (Twelve)
Inductance : 60µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 1.120" L x 0.480" W (28.45mm x 12.19mm)
Height - Seated (Max) : 0.290" (7.36mm)
Operating Temperature : -40°C ~ 85°C
0
97 in stock

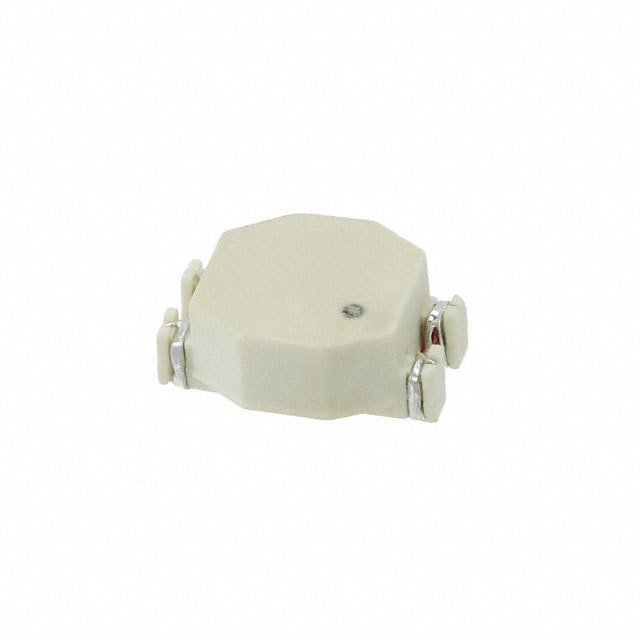

TX8111NL TX8111NL

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 51µH @ 100kHz
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.248" L x 0.260" W (6.30mm x 6.60mm)
Height (Max) : 0.161" (4.10mm)
Package / Case : Horizontal, 4 PC Pad
0
194 in stock
