Pulse Electronics Corporation
- Pulse Electronics is the electronic components partner that helps customers build the next great product by providing the needed technical solutions. Pulse has a long operating history of innovation in magnetics, antennas and connectors, as well as the ability to ramp quickly into high-quality, high-volume production. The Company serves the wireless and wireline communications, power management, military/aerospace and automotive industries. Previously, the holding and operating companies were known as Technitrol, Inc. and Pulse Engineering, respectively. Pulse is a participating member of IEEE, ATIS, ETSI, HDMI, the DSL Forum, CommNexus, and MoCA.
Part Number
Manufacturer
Description
Unit Price
In Stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.24mm W
Height - Seated (Max) : 36.58mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
100 in stock

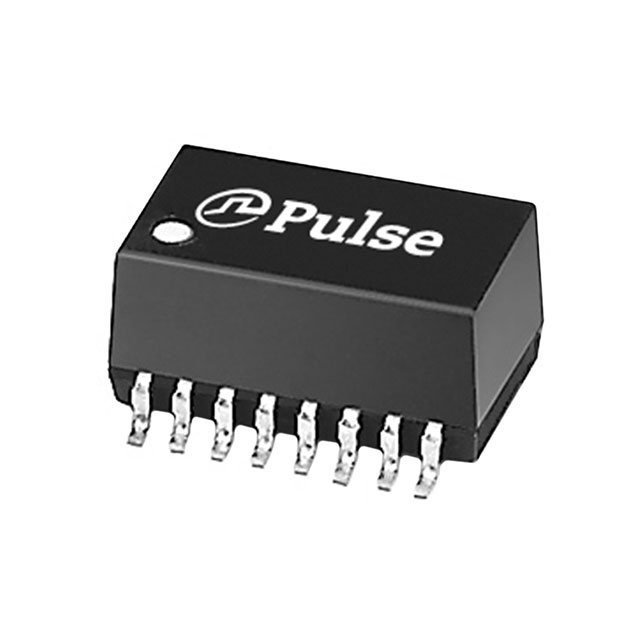

Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : LAN 10G Base-T
Inductance : 18µH, 60µH, 80µH, 175µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1.414CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.455" L x 0.275" W (11.56mm x 6.99mm)
Height - Seated (Max) : 0.225" (5.72mm)
Operating Temperature : 0°C ~ 70°C
0
340 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : LAN 10G Base-T
Inductance : 18µH, 60µH, 80µH, 175µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1.414CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.455" L x 0.275" W (11.56mm x 6.99mm)
Height - Seated (Max) : 0.225" (5.72mm)
Operating Temperature : 0°C ~ 70°C
0
530 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 7.2A, Series 3.6A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 5.7A, Series 2.85A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 4.5A, Series 2.25A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 3.6A, Series 1.8A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 3A, Series 1.5A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 2.6A, Series 1.3A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : Split Bobbin Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 1.5A, Series 750mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.80mm L x 55.63mm W
Height - Seated (Max) : 39.62mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
100 in stock
